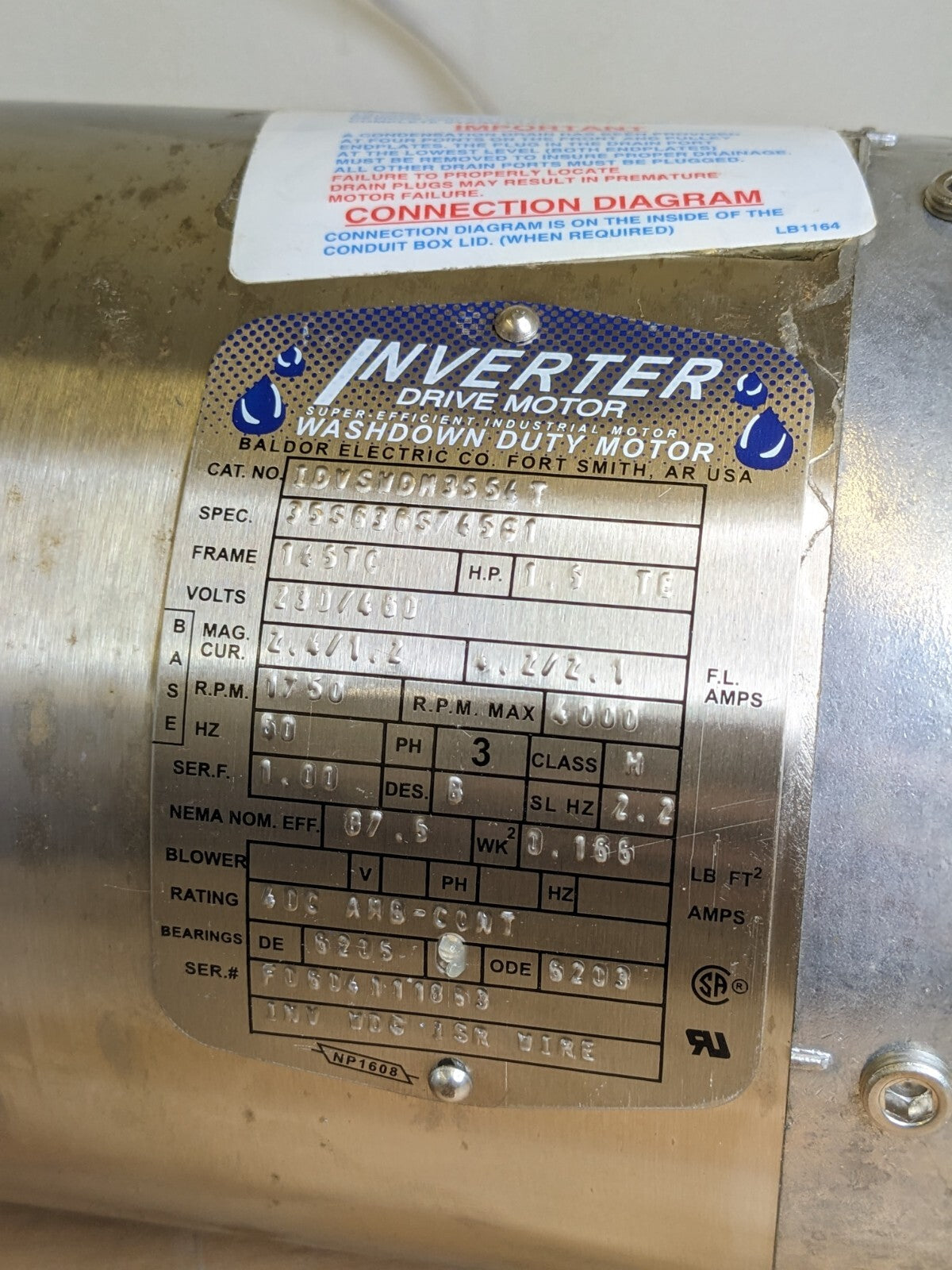

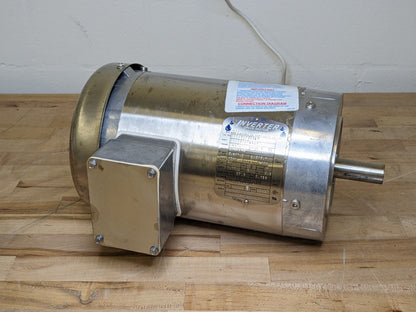

Baldor Washdown Inverter Drive Motor 1.5 HP 1770 RPM 230/460v 3 PH Reverseable

Fast shipping, straight from our warehouse in sunny Florida!

**PLEASE NOTE: Items weighing over 75 lbs will have an additional $15 surcharge on shipping cost, imposed by the shipping carrier**

Industry Recycles 155 Center Ct, Venice, FL 34285

Catalog Number

IDVSWDM3554T

Enclosure

TEFC

Frame

145TC

Frame Material

Stainless Steel

Frequency

60.00 Hz

Motor Letter Type

Three Phase

Output @ Frequency

1.500 HP @ 60 HZ

Phase

3

Synchronous Speed @ Frequency

1800 RPM @ 60 HZ

Voltage @ Frequency

460.0 V @ 60 HZ

230.0 V @ 60 HZ

Haz Area Class and Group

None

Haz Area Division

Not Applicable

Agency Approvals

CSA

CSA EEV

NEMA PREMIUM

NEMA_PREMIUM

UR

Ambient Temperature

40 °C

Auxiliary Box

NO AUXILLARY BOX

Auxiliary Box Lead Termination

None

Base Indicator

No Mounting

Bearing Grease Type

Polyrex EM (-20F +300F)

Blower

None

Current @ Voltage

4.640 A @ 208.0 V

4.600 A @ 230.0 V

2.300 A @ 460.0 V

Design Code

B

Drip Cover

No Drip Cover

Duty Rating

CONT

Efficiency @ 100% Load

86.5 %

Electrically Isolated Bearing

Not Electrically Isolated

Feedback Device

NO FEEDBACK

High Voltage Full Load Amps

2.3 a

Front Face Code

Standard

Front Shaft Indicator

None

Heater Indicator

No Heater

Insulation Class

H

Inverter Code

Inverter Ready

KVA Code

M

Lifting Lugs

No Lifting Lugs

Locked Bearing Indicator

Locked Bearing

Max Speed

2700 rpm

Motor Lead Exit

Ko Box

Motor Lead Termination

Flying Leads

Motor Lead Quantity/Wire Size

9 @ 18 AWG

Motor Type

3524M

Mounting Arrangement

F1

Number of Poles

4

Overall Length

13.29 IN

Power Factor

72

Product Family

Wash Down Paint Free

Pulley End Bearing Type

Sealed Bearing

Pulley Face Code

C-Face

Pulley Shaft Indicator

Standard

Rodent Screen

None

RoHS Status

ROHS COMPLIANT

Service Factor

1.00

Shaft Diameter

0.875 IN

Shaft Extension Location

Pulley End

Shaft Ground Indicator

No Shaft Grounding

Shaft Rotation

Reversible

Shaft Slinger Indicator

Shaft Slinger

Speed

1770 rpm

Speed Code

Single Speed

Motor Standards

NEMA

Starting Method

Direct on line

Thermal Device - Bearing

None

Thermal Device - Winding

Normally Closed Thermostat

Vibration Sensor Indicator

No Vibration Sensor

Winding Thermal 1

None

Winding Thermal 2

None
