BALDOR Energy Saving Electric Motor 1/4hp 115/208-230V L4003A

BALDOR
Energy Saving Electric Motor

MSRP: $400

• Catalog Number L4003A
• Enclosure TEFC
• Frame 48
• Frame Material Steel
• Frequency 60.00 Hz
• Motor Letter Type Cap Start, Induction Run
• Output @ Frequency .250 HP @ 60 HZ
• Phase 1
• Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
• Voltage @ Frequency 230.0 V @ 60 HZ
• 208.0 V @ 60 HZ
• 115.0 V @ 60 HZ
• Haz Area Class and Group CLI GP D; CLII GP F,G
• Haz Area Division Division I
• Agency Approvals CSA
• UL
• Ambient Temperature 40 °C
• Auxiliary Box NO AUXILLARY BOX
• Auxiliary Box Lead Termination None
• Base Indicator Rigid
• Bearing Grease Type Polyrex EM (-20F +300F)
• Blower None
• Current @ Voltage 5.000 A @ 115.0 V
• 2.600 A @ 208.0 V
• 2.500 A @ 230.0 V
• Design Code N
• Drip Cover No Drip Cover
• Duty Rating CONT
• Efficiency @ 100% Load 55.0 %
• Electrically Isolated Bearing Not Electrically Isolated
• Feedback Device NO FEEDBACK
• High Voltage Full Load Amps 2.5 a
• Front Face Code Standard
• Front Shaft Indicator None
• Heater Indicator No Heater
• Insulation Class B
• Inverter Code Not Inverter
• KVA Code L
• Lifting Lugs No Lifting Lugs
• Locked Bearing Indicator No Locked Bearing
• Motor Lead Exit Ko Box
• Motor Lead Termination Flying Leads
• Motor Lead Quantity/Wire Size 7 @ 18 AWG
• Motor Type 3411L
• Mounting Arrangement F1
• Number of Poles 4
• Overall Length 12.85 IN
• Power Factor 57
• Product Family General Purpose
• Pulley End Bearing Type Ball
• Pulley Face Code Standard
• Pulley Shaft Indicator Standard
• Rodent Screen None
• RoHS Status ROHS COMPLIANT
• Service Factor 1.00
• Shaft Diameter 0.500 IN
• Shaft Extension Location Pulley End
• Shaft Ground Indicator No Shaft Grounding
• Shaft Rotation Reversible
• Shaft Slinger Indicator No Slinger
• Speed 1725 rpm
• Speed Code Single Speed
• Motor Standards NEMA
• Starting Method Direct on line
• Thermal Device - Bearing None
• Thermal Device - Winding None
• Vibration Sensor Indicator No Vibration Sensor
• Winding Thermal 1 Automatic Thermal Overload
• Winding Thermal 1 Location SB
• Winding Thermal 2 None
• Haz Area Temp Code T3C

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

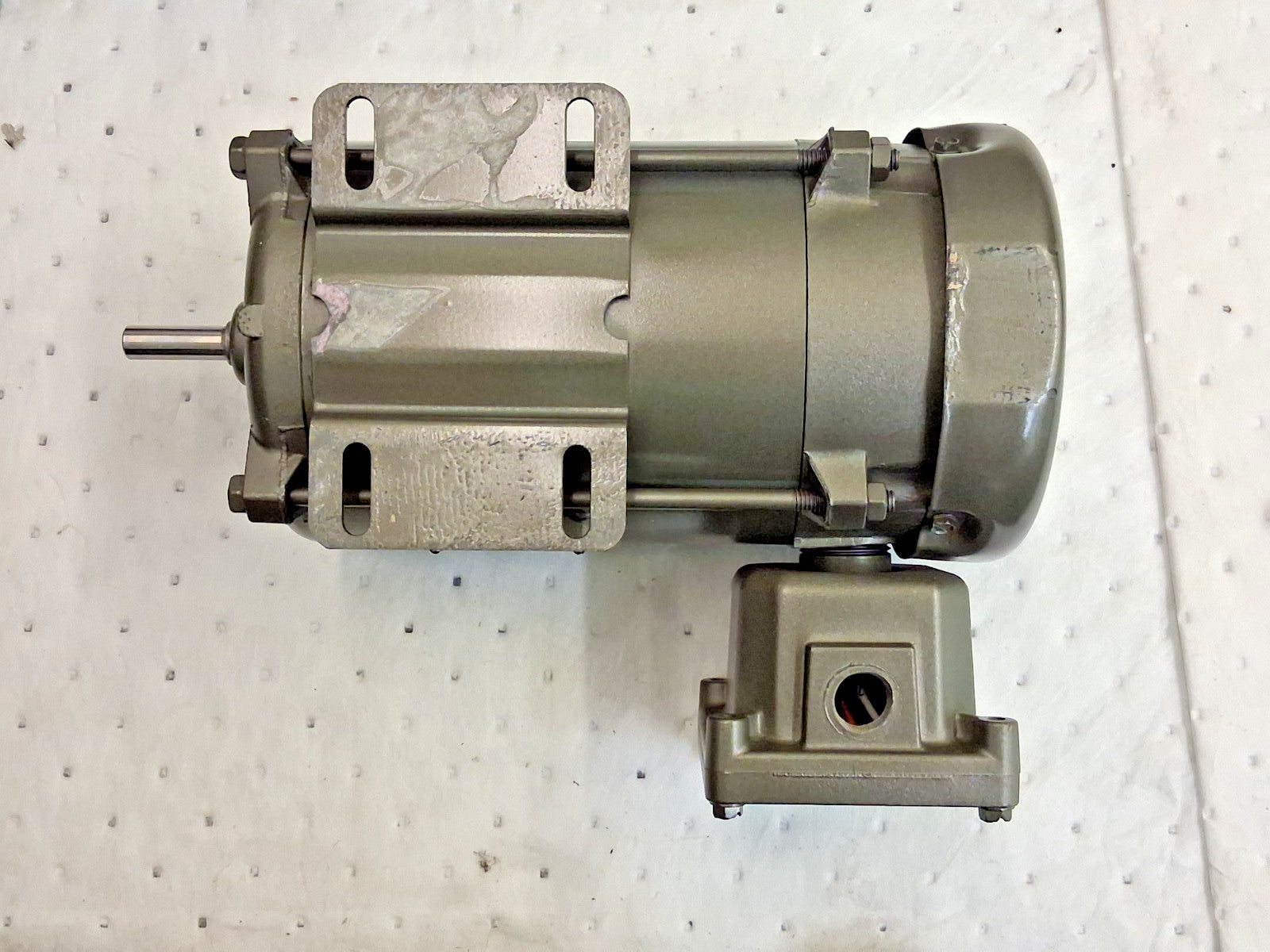

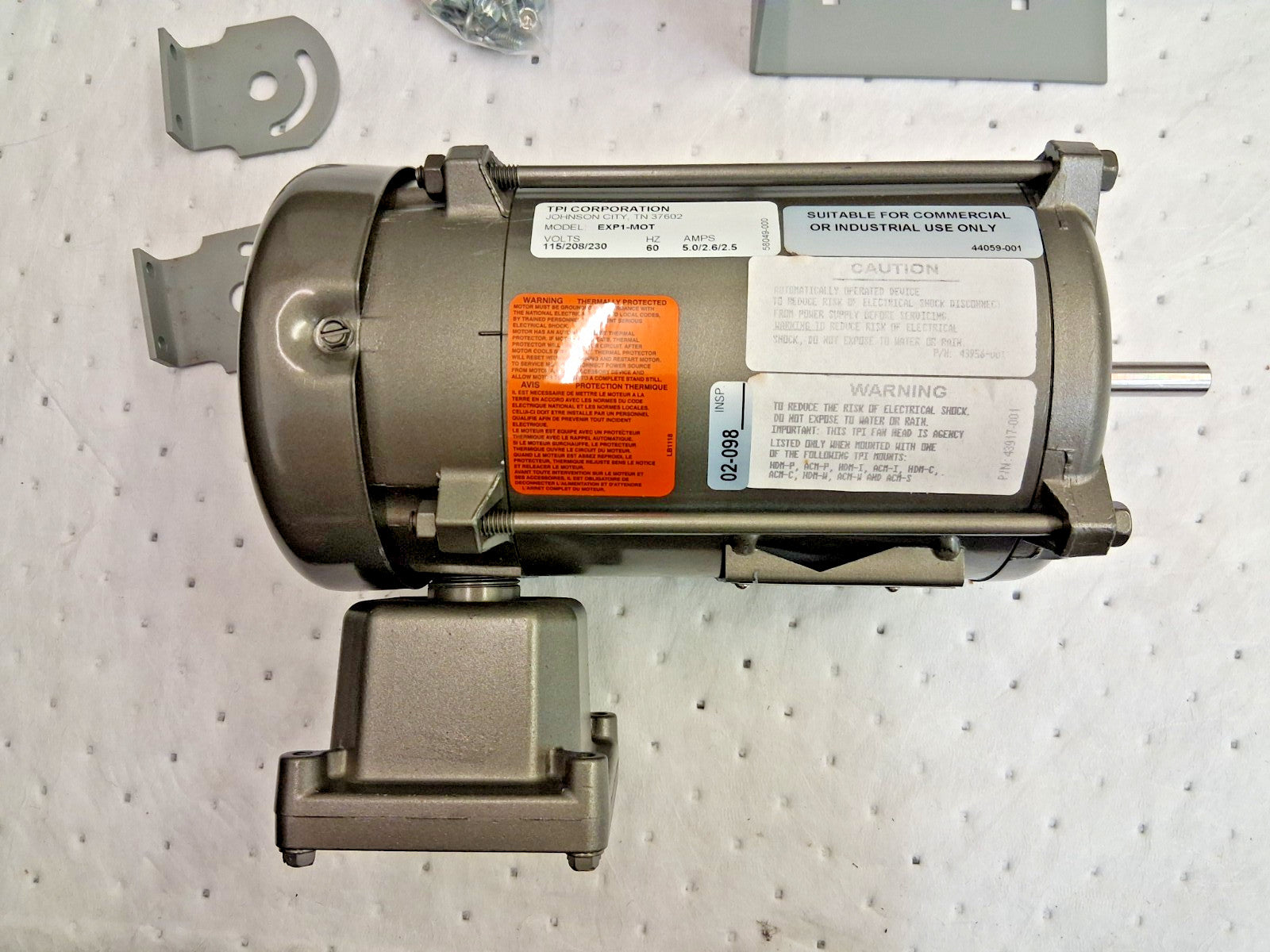

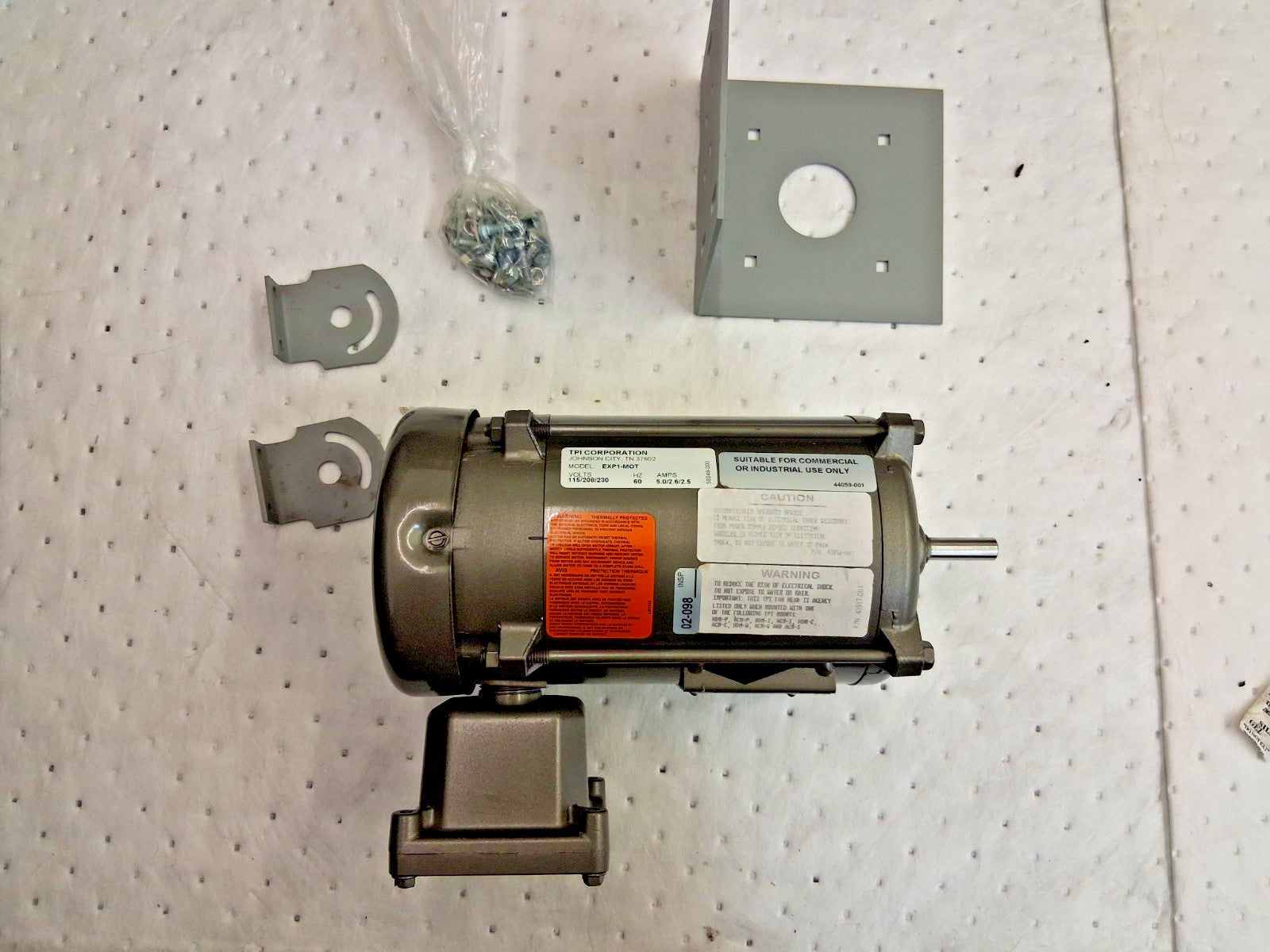

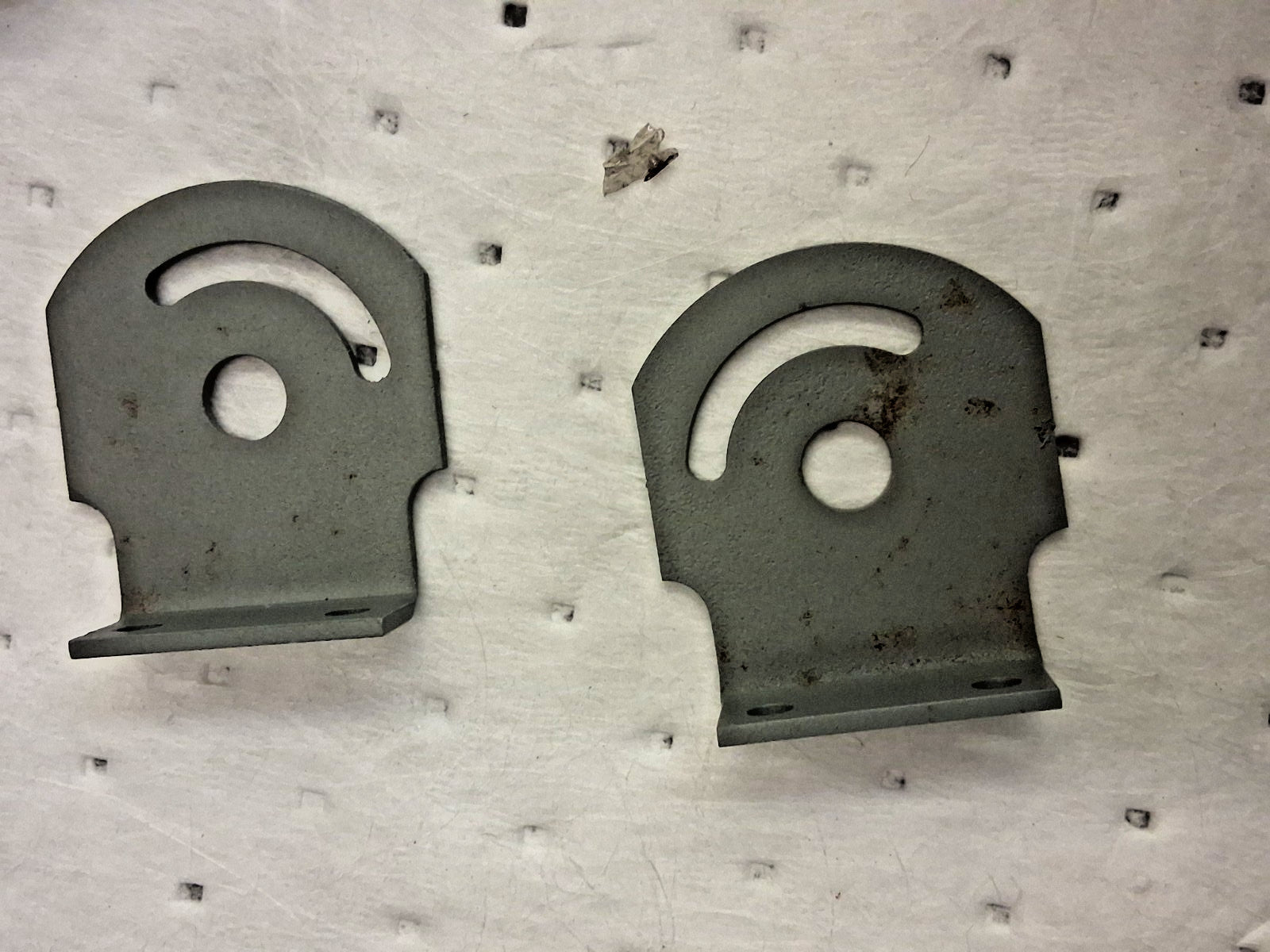

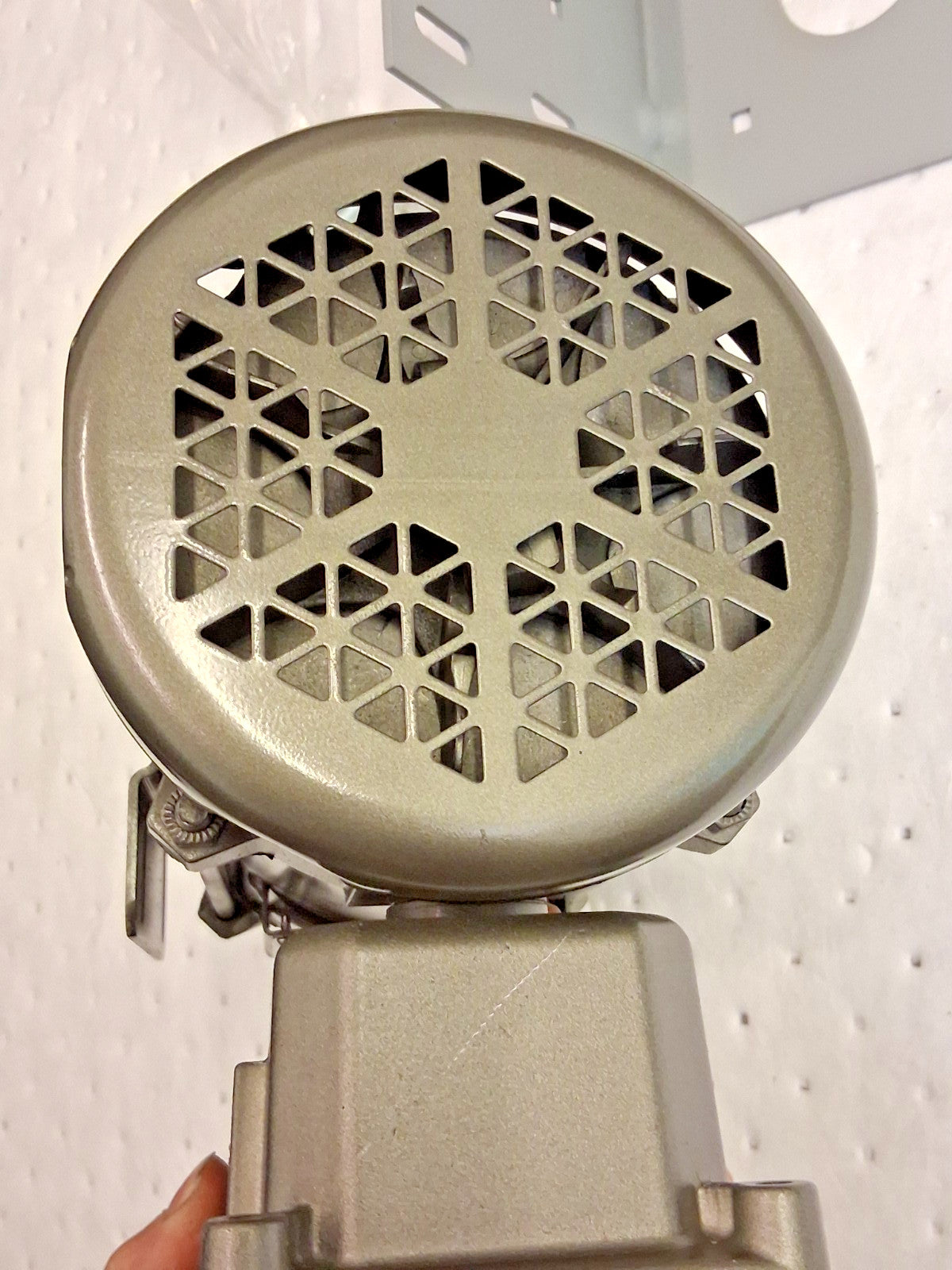

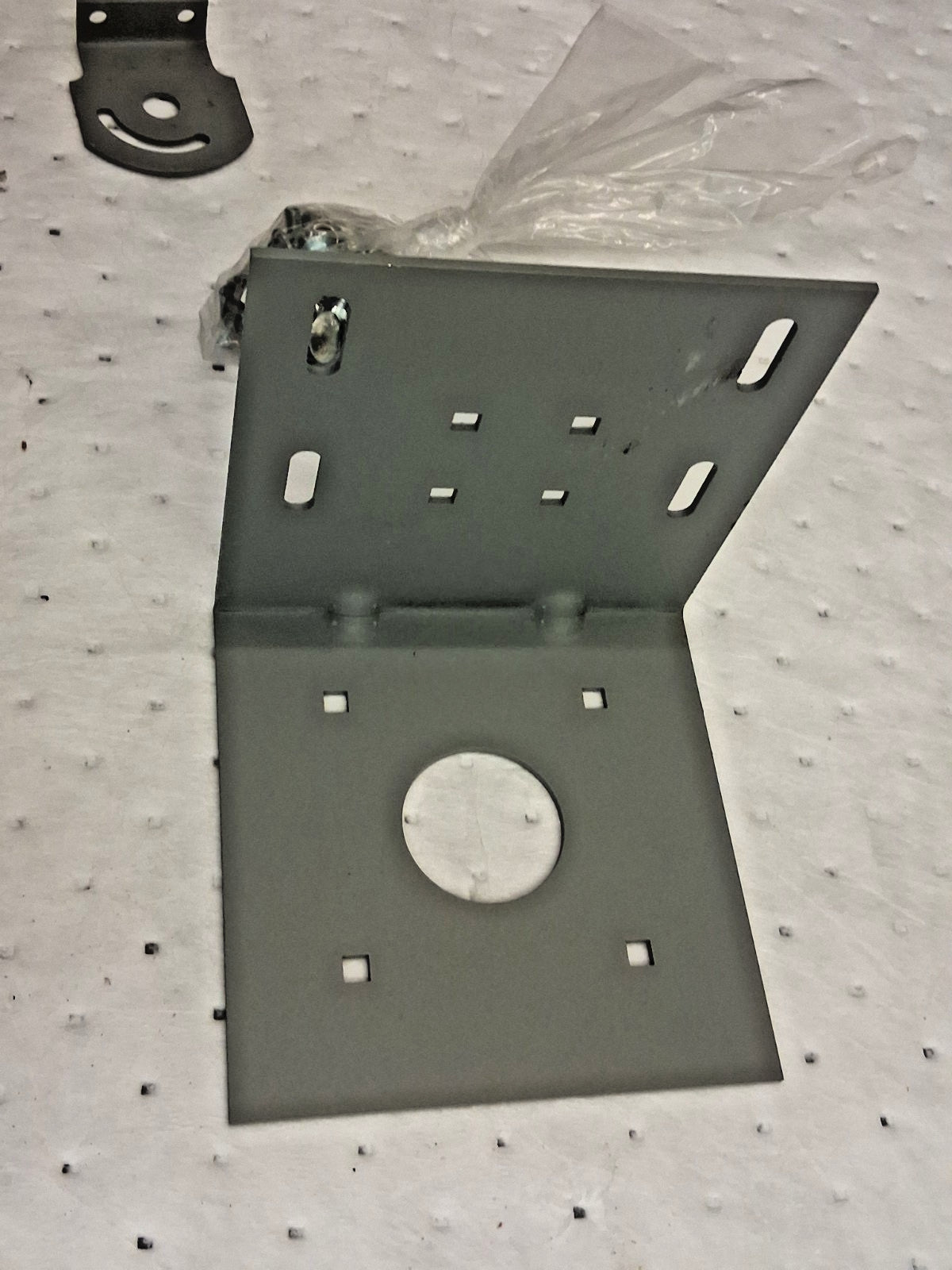

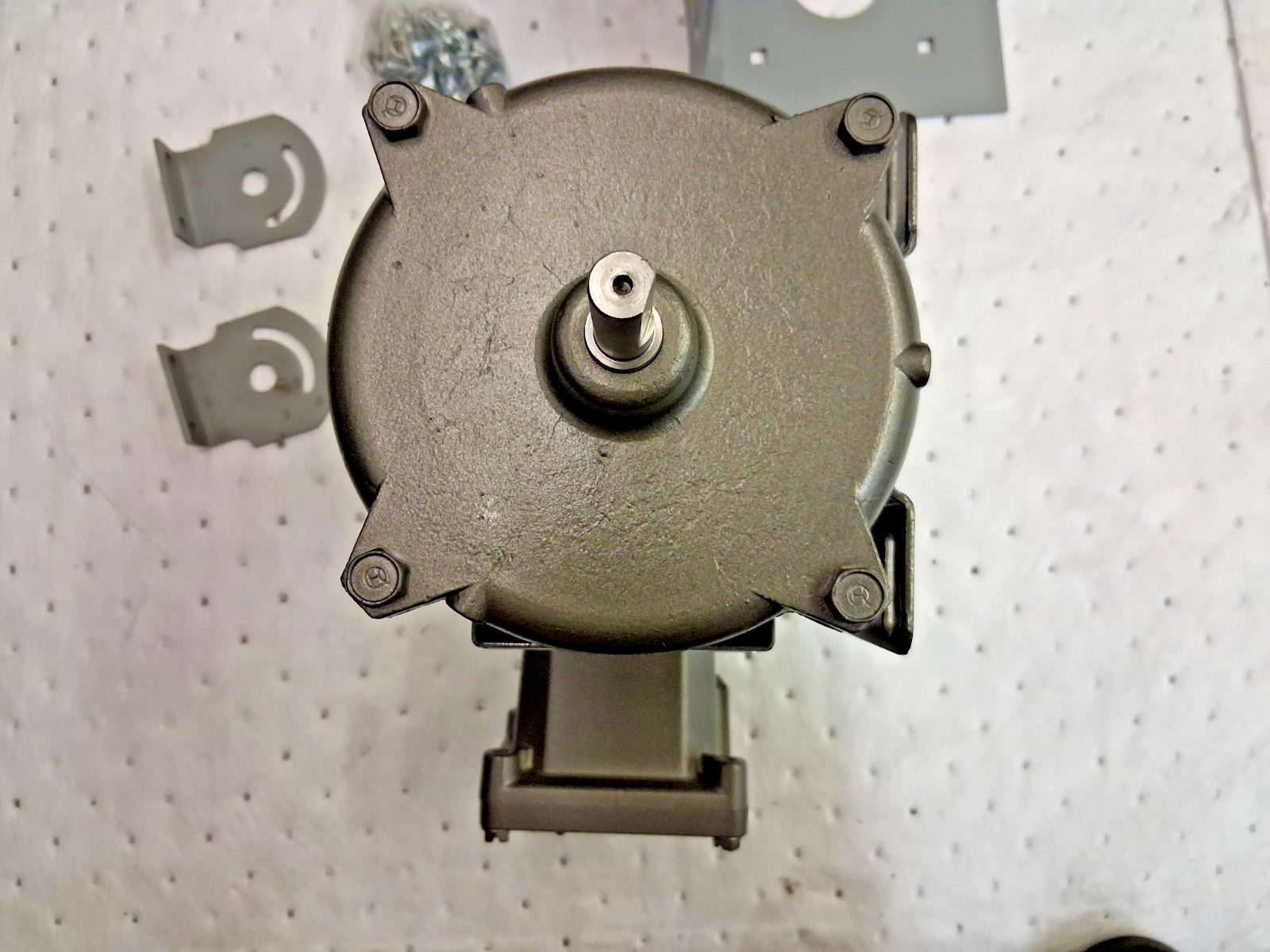

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
