AMERICAN TOOL SERVICE Square End Mill: 7/16'' 5 Fl Solid Carbide 750-4375

AMERICAN TOOL SERVICE

 Square End Mill: 7/16'' 5 Fl Solid Carbide 750-4375
MSRP: $90

• Mill Diameter (Inch) 7/16
• Mill Diameter (Decimal Inch) 0.4375
• Number Of Flutes 5
• Length of Cut (Inch) 1
• End Mill Material Solid Carbide
• End Type Single
• Centercutting Yes
• Cutting Direction Right Hand
• Shank Diameter (Inch) 7/16
• Finish/Coating AlCrN
• Overall Length (Inch) 2-3/4
• Chipbreaker No
• Variable Helix No
• Extended Reach No
• Length Of Cut Range (Decimal Inch) 1.0000 - 1.2500
• Length of Cut (Decimal Inch) 1.0000
• Material Grade Micrograin
• Shank Diameter (Decimal Inch) 0.4375
• Overall Length (Decimal Inch) 2.7500
• Flute Direction Right Hand
• Flute Type Spiral
• Helix Style Medium
• Shank Diameter Tolerance +0.0000/-0.0005 in
• Length Type Regular
• Mill Diameter Tolerance +0.000 to -0.002 in
• Overall Length Tolerance +0.060/-0.060 in
• TIR Maximum (Decimal Inch) 0.0010

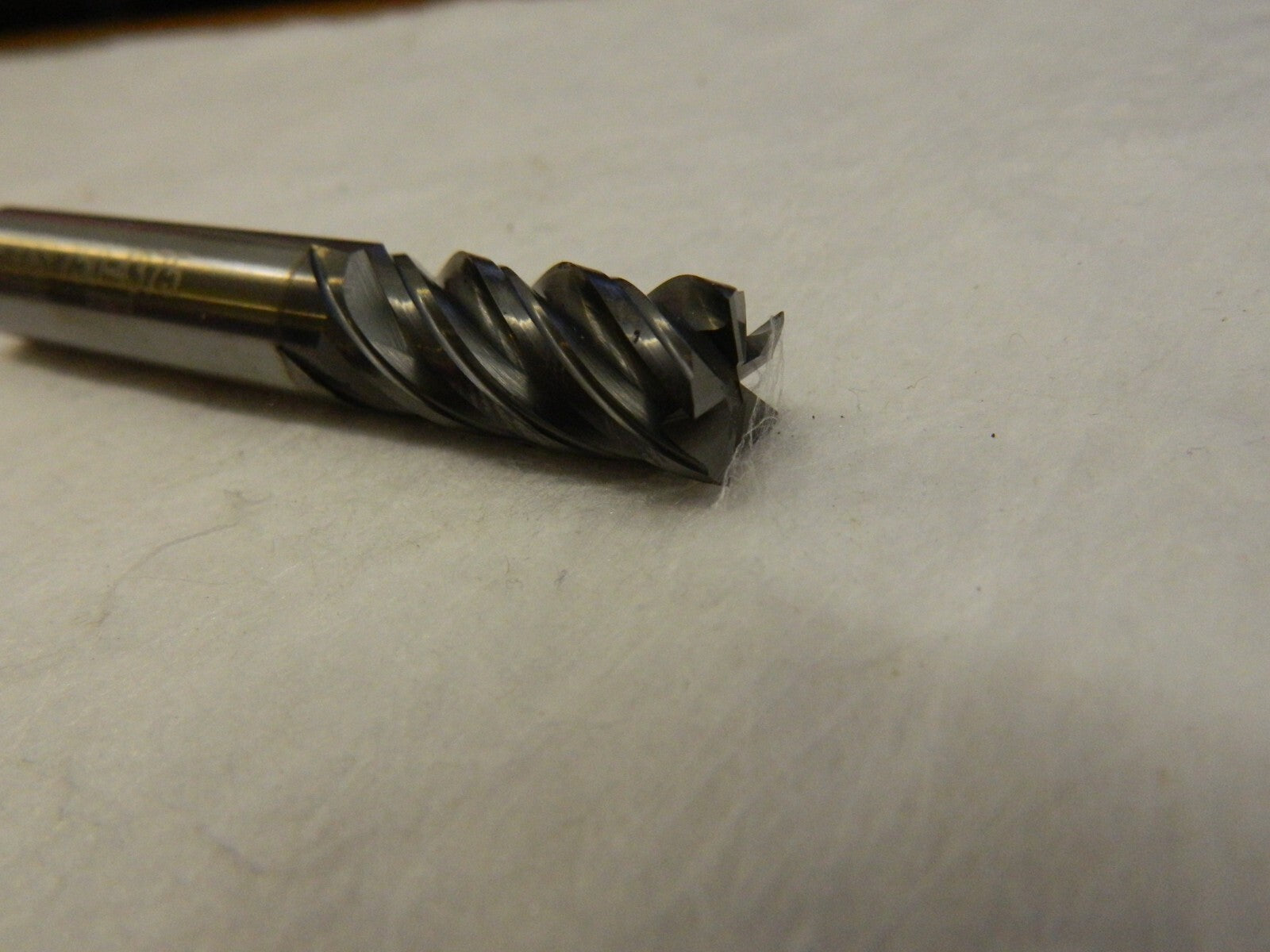

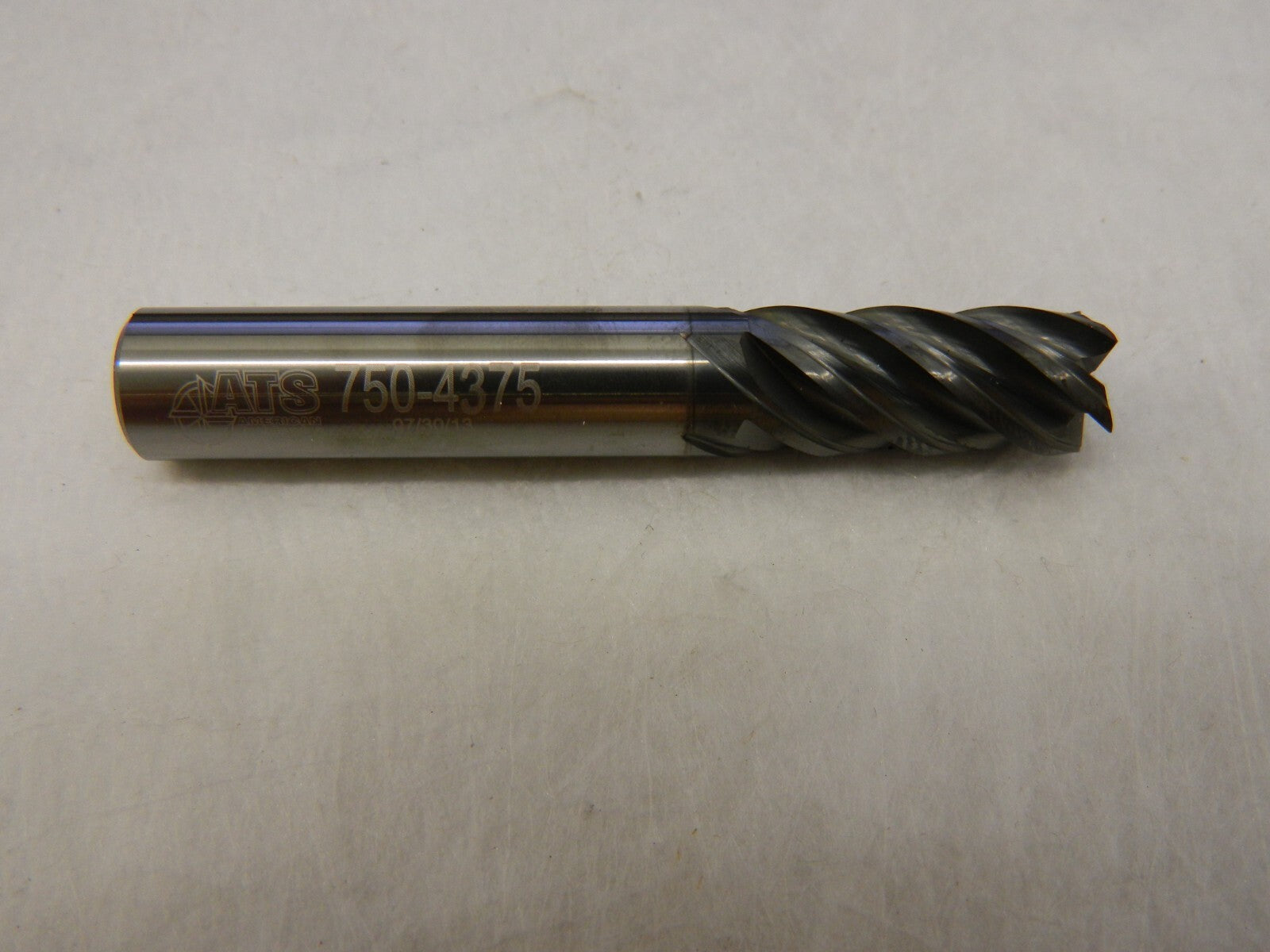

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
