AMERICAN TOOL SERVICE Corner Radius End Mill: 5/8″ Dia 4 Fl 671-6250-040

AMERICAN TOOL SERVICE

 Corner Radius End Mill: 5/8″ Dia 4 Fl 671-6250-040
MSRP: $180

• Mill Diameter (Inch) 5/8
• Corner Radius (Decimal Inch) 0.0400
• Coating/Finish AlCrN
• End Mill Material Solid Carbide
• Number Of Flutes 4
• Single Or Double End Single
• Overall Length (Inch) 3-1/2
• Length of Cut (Inch) 1-1/2
• Cutting Direction Right Hand
• Mill Diameter (Decimal Inch) 0.6250
• Flute Direction Right Hand
• Helix Angle Variable
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.5000
• Length Type Regular
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Centercutting Yes
• Shank Diameter (Inch) 5/8
• Minimum Helix Angle 34.00
• Maximum Helix Angle 39.00
• Corner Radius Tolerance +0.00020 to -0.00020 in
• Mill Diameter Tolerance +0.000000 to -0.002000 in
• Shank Diameter Tolerance +0.0000 to -0.0005 in
• Overall Length Tolerance ±0.0600 in
• Material Grade Micrograin
• TIR Maximum (Decimal Inch) 0.0010

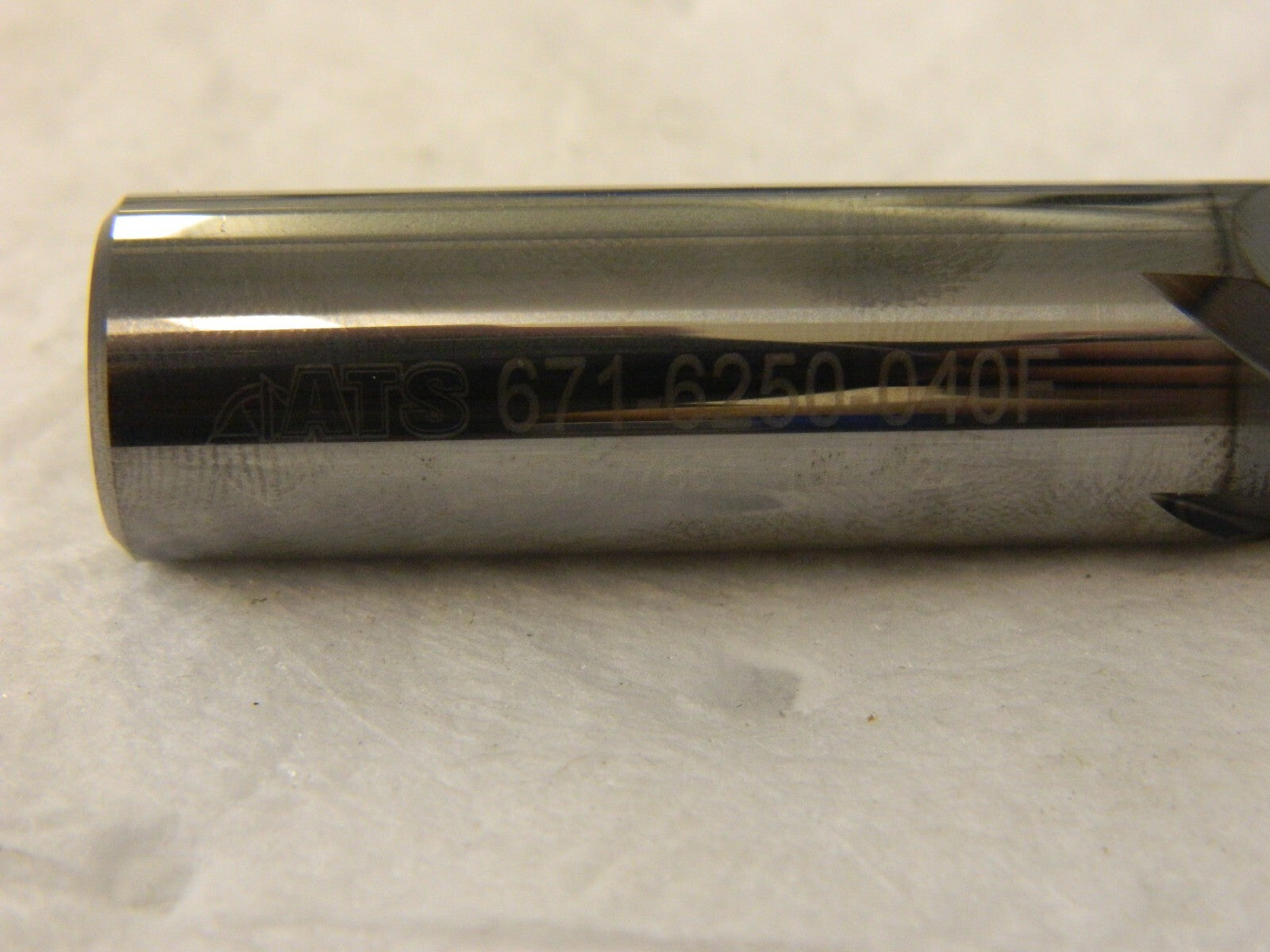

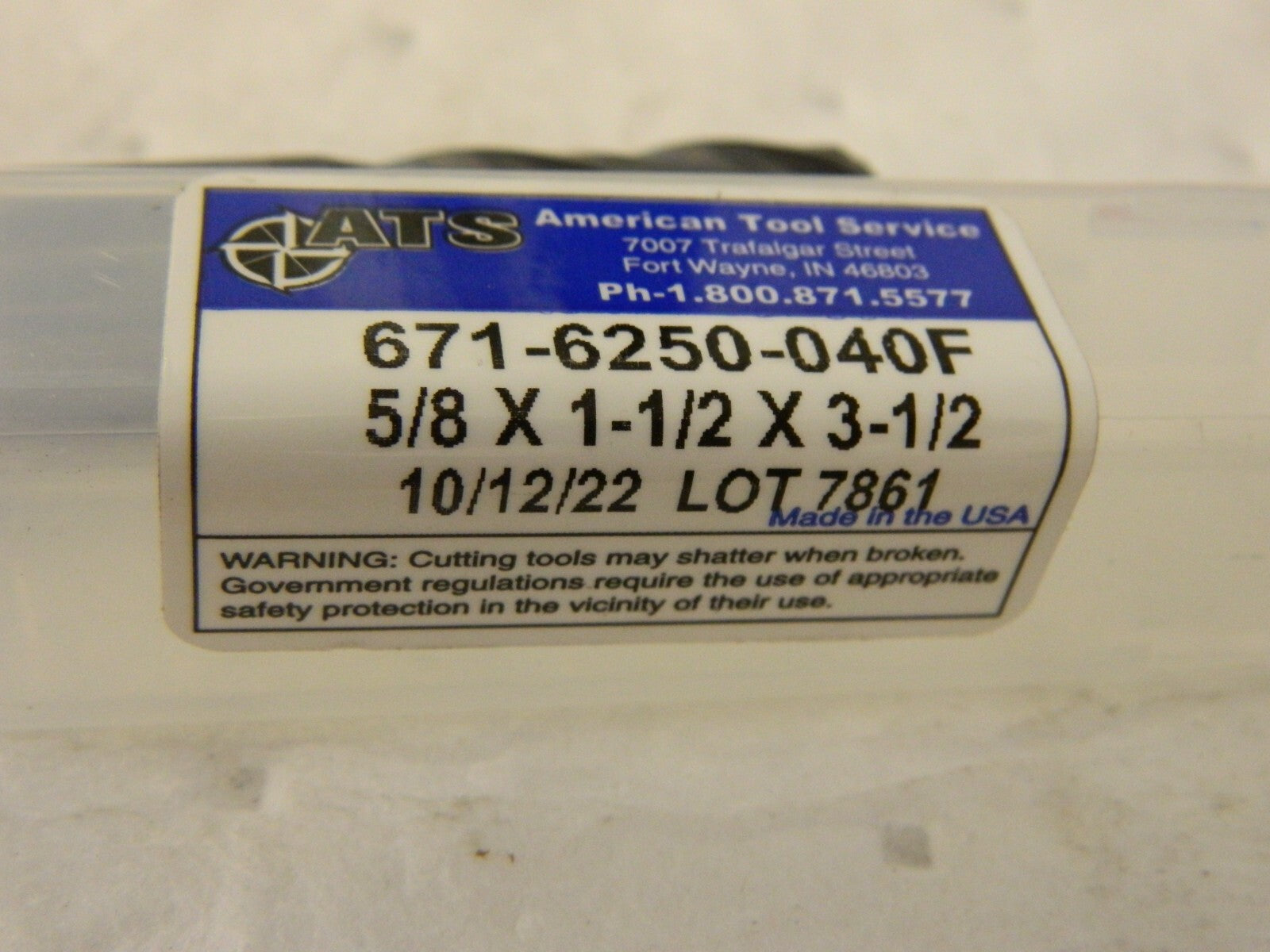

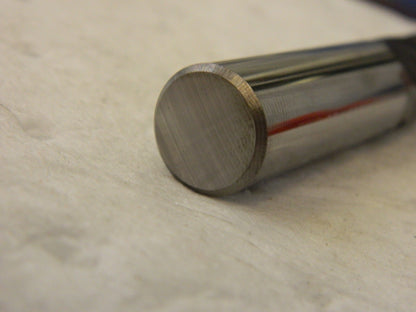

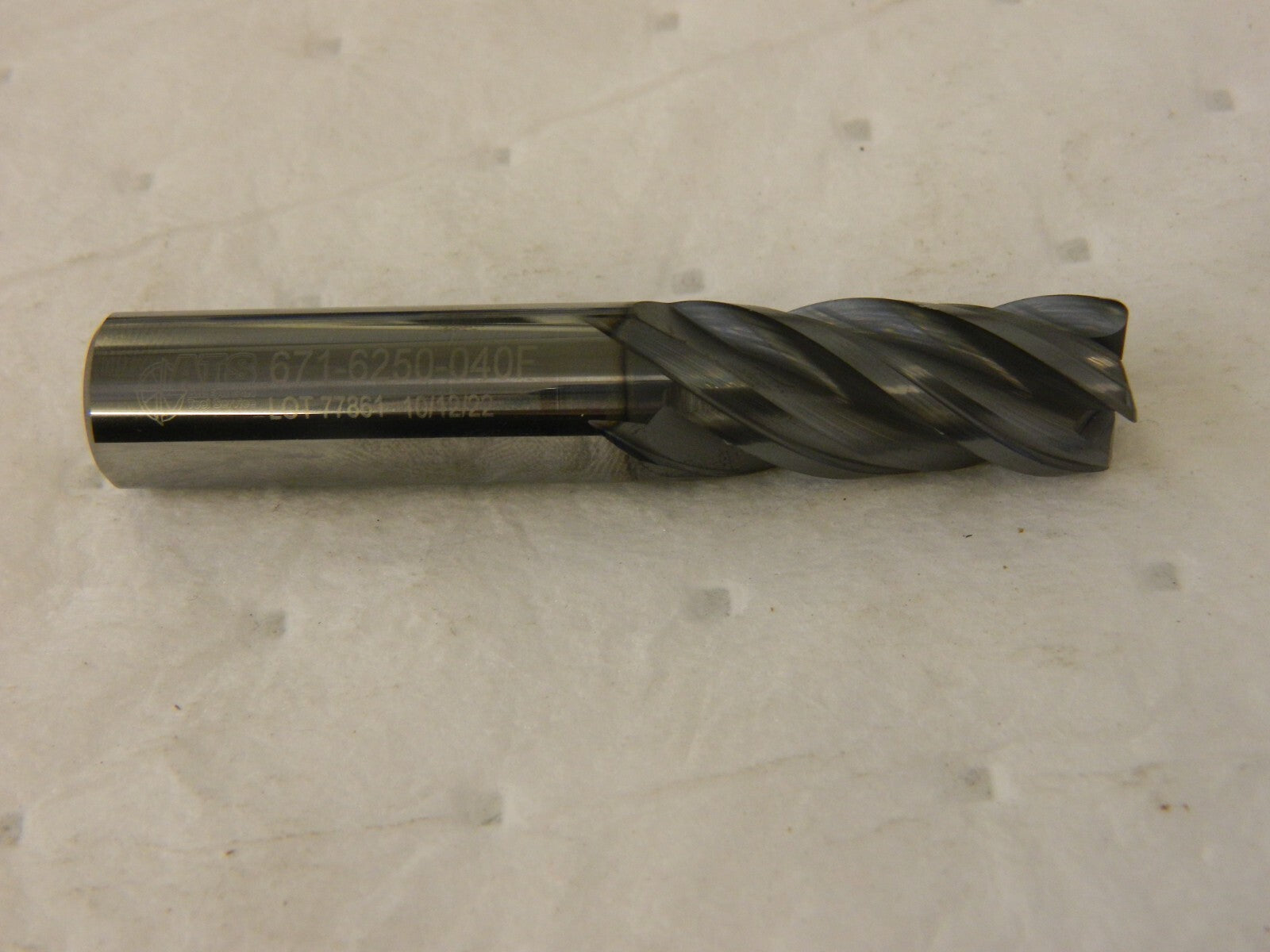

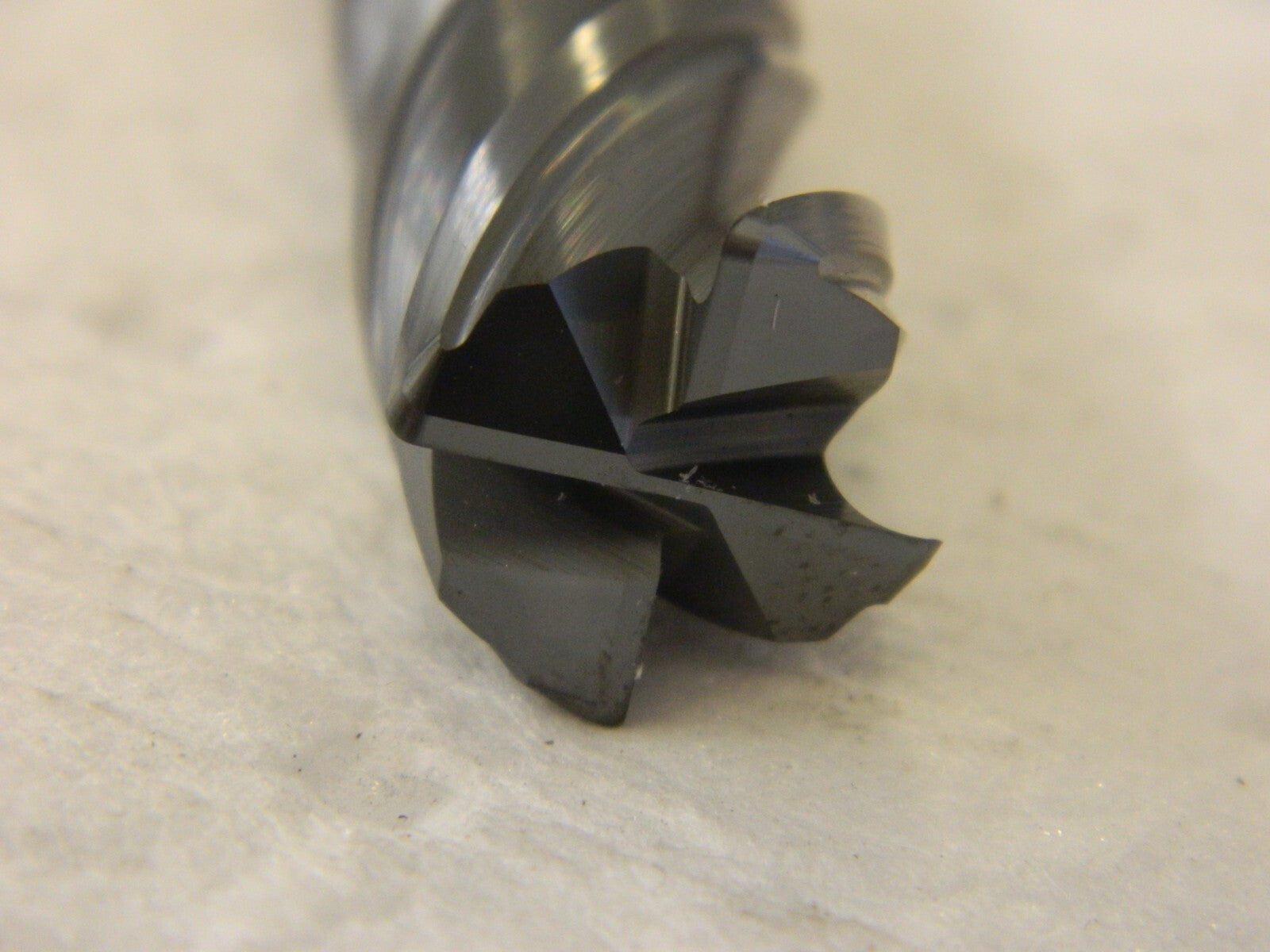

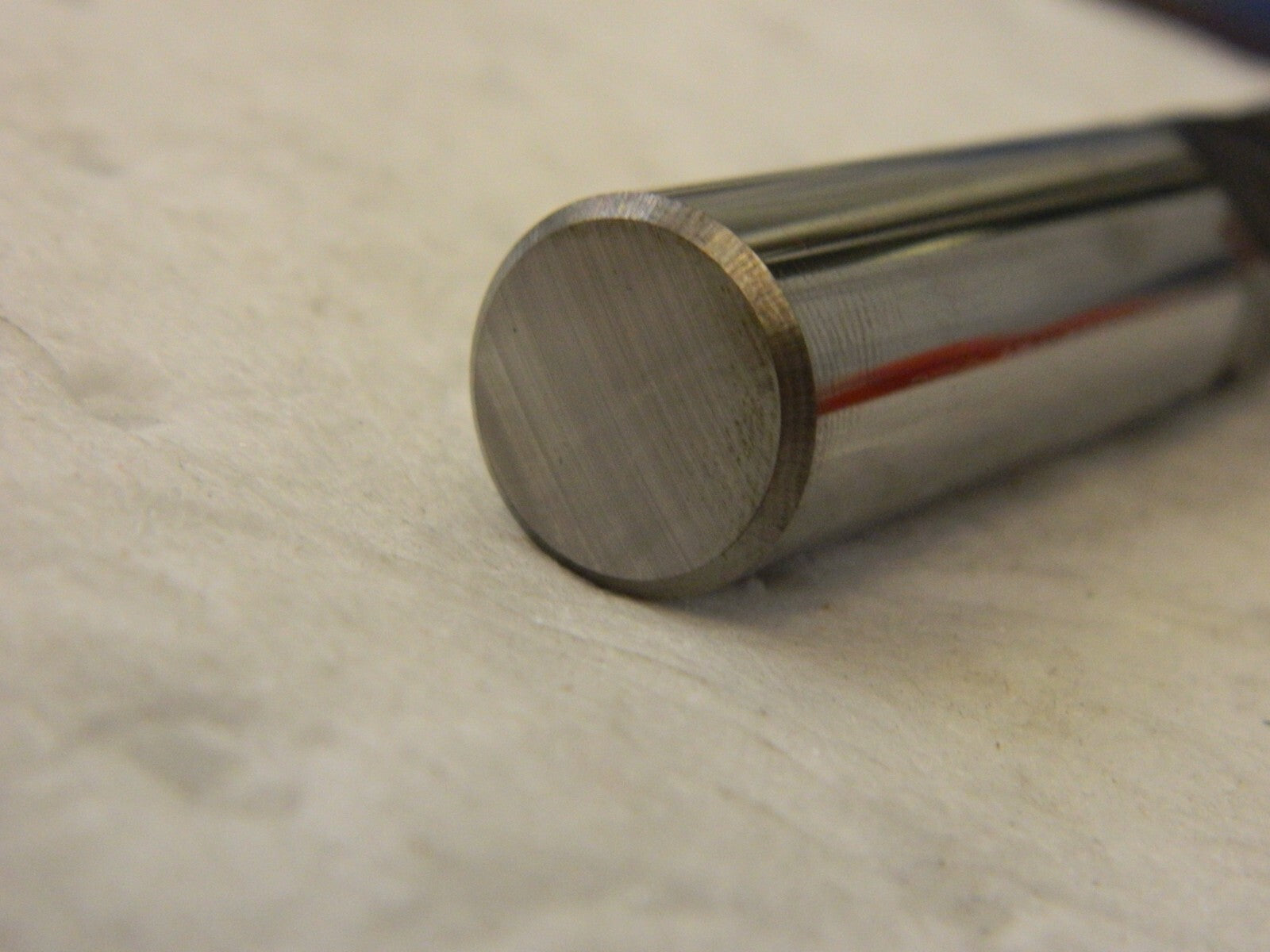

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
