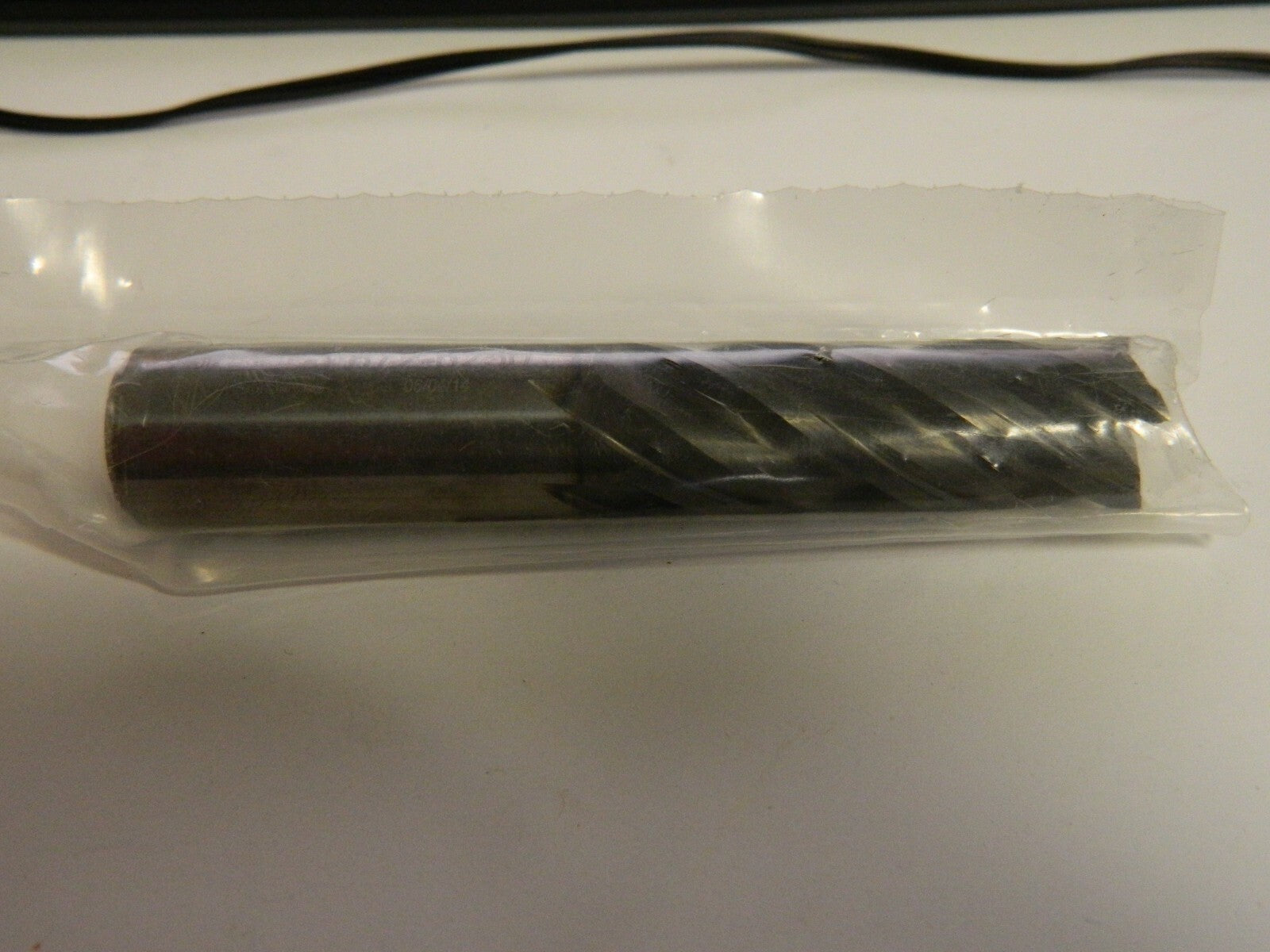

American 5/8" 1-3/4" LOC 5/8" Shank Diam 3-1/2" OAL 4 Fl SC Square EndMill

BRAND American Tool
Item Endmill

• specs

• Mill Diameter (Inch) 5/8
• Mill Diameter (Decimal Inch) 0.6250
• Number of Flutes 4
• Length of Cut (Inch) 1-3/4
• Length of Cut (Decimal Inch) 1.7500
• Material Solid Carbide
• Finish/Coating AlCrN
• Shank Diameter (Inch) 5/8
• Single or Double End Single
• Overall Length (Inch) 3-1/2
• Center Cutting Center Cutting
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Helix Angle Variable
• Flute Type Spiral
• Length Type Regular
• Helix Style Medium High
• Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.002
• Material Grade Micrograin
• Minimum Helix Angle 34
• TIR Maximum (Decimal Inch) 0.0008
• Maximum Helix Angle 39
• Chipbreaker No
• Extended Reach No
• Overall Length Tolerance (Decimal Inch) ±0.060
• Shank Diameter Tolerance (Decimal Inch) +0.0000/-0.0005
