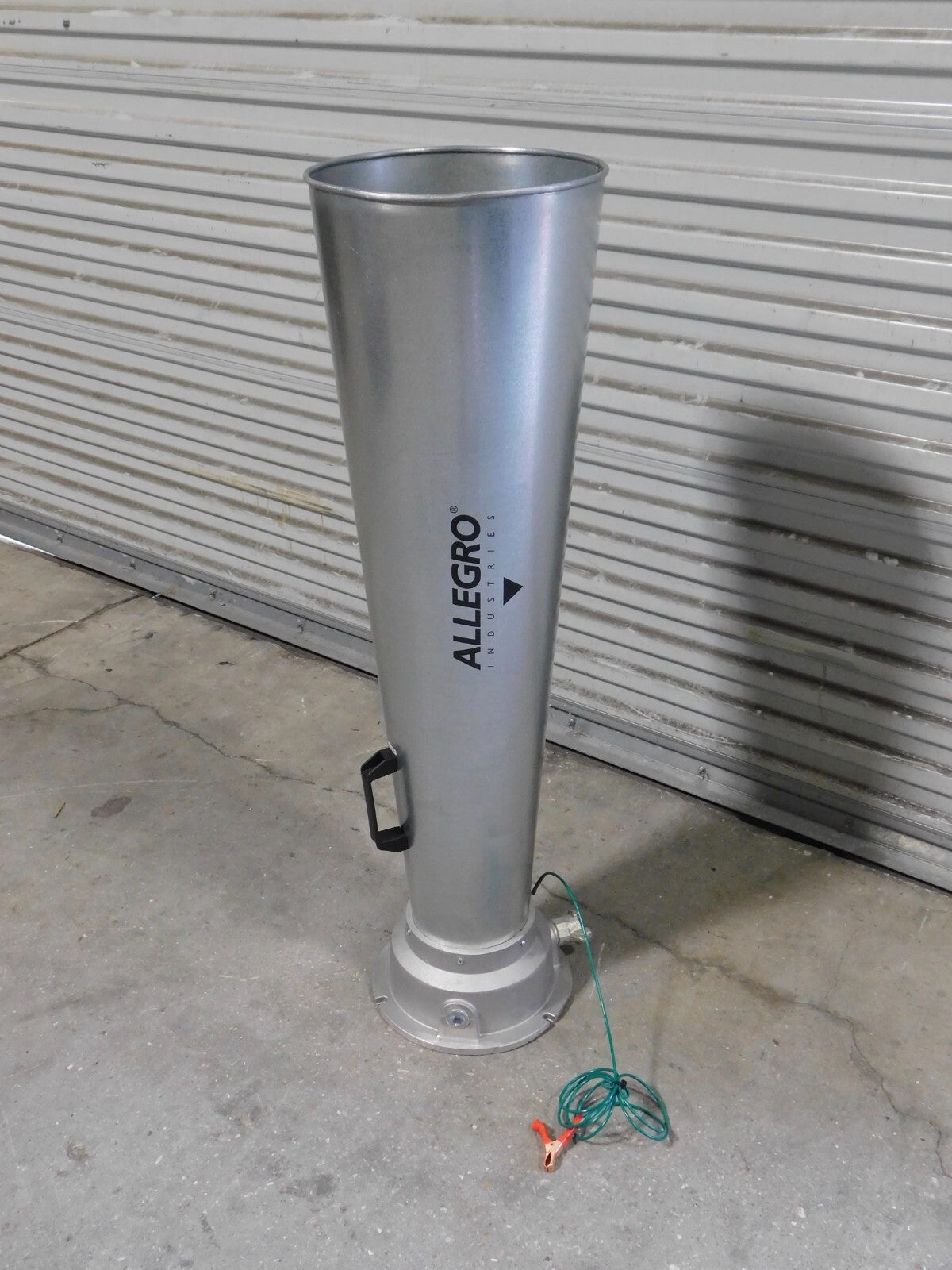

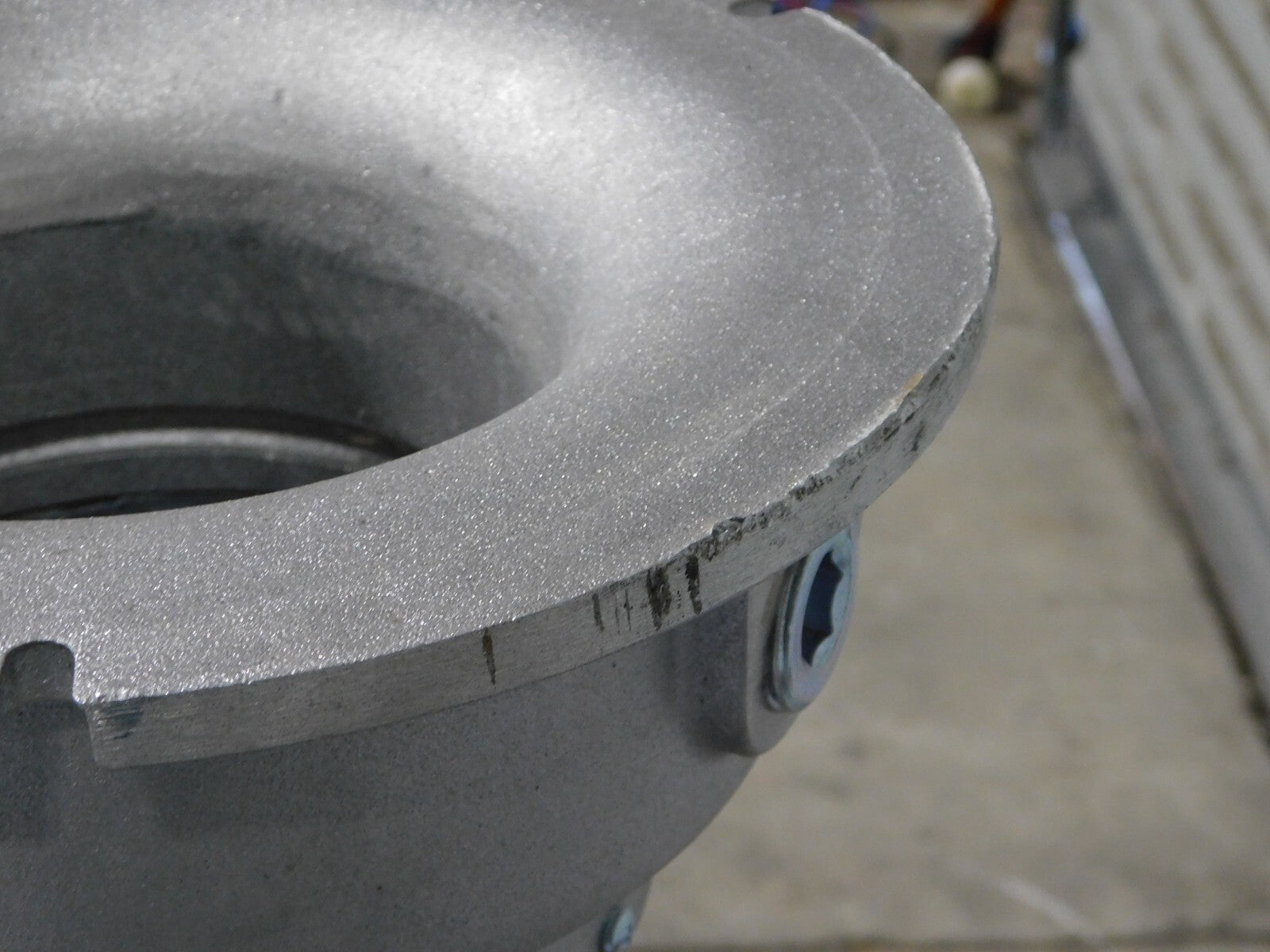

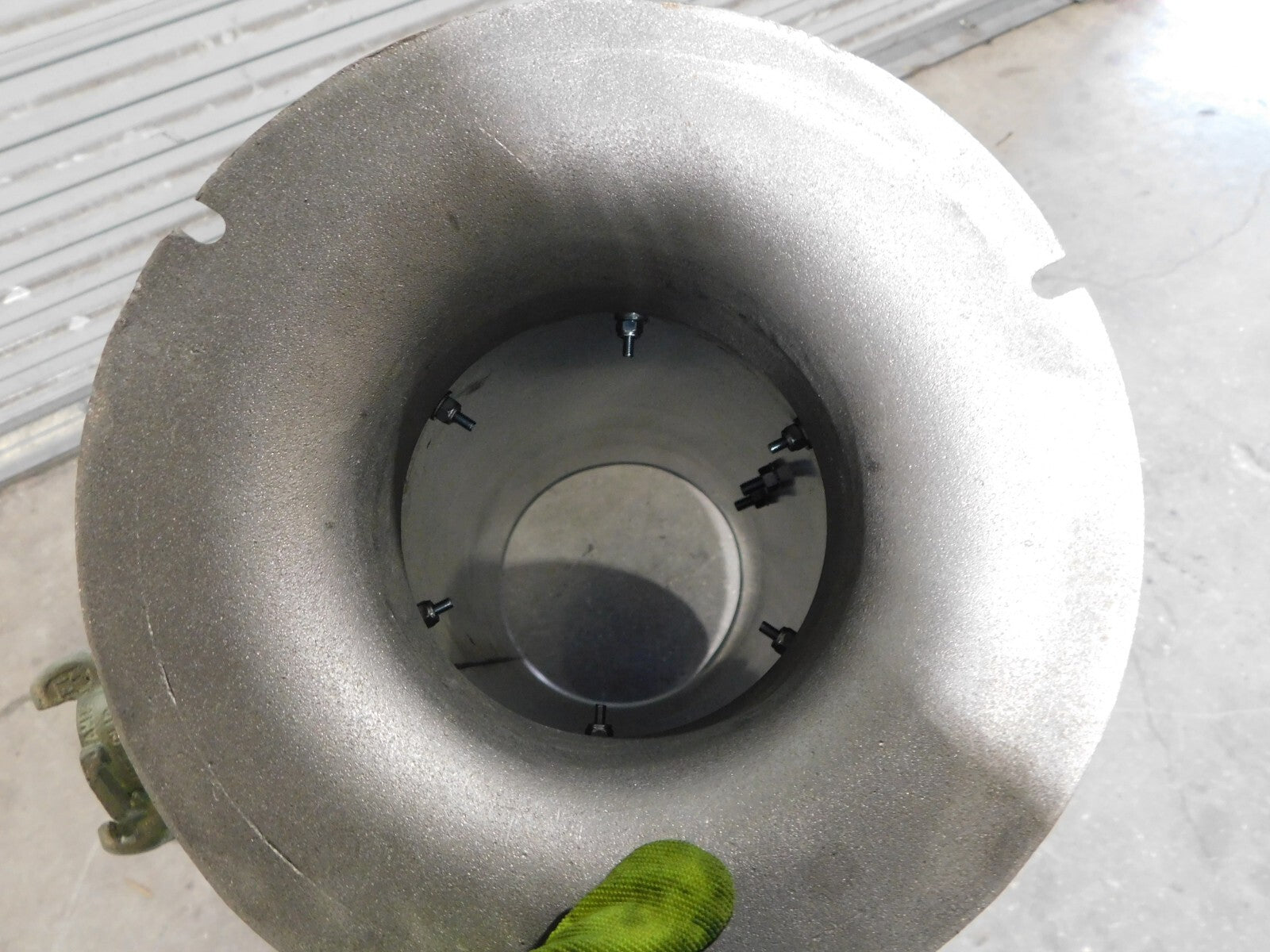

Allegro Galvanized Steel Venturi Style Pneumatic Blower 44-1/4" Long 9518-06

• CFM @ 40 PSIG (Total Air Flow) 2385
• CFM @ 60 PSIG (Total Air Flow) 2885
• CFM @ 80 PSIG (Total Air Flow) 3347
• SCFM @ 40 PSIG (Air Consumed) 73
• SCFM @ 60 PSIG (Air Consumed) 98
• Air Consumption At 60 Psig 60 SCFM
• SCFM @ 80 PSIG (Air Consumed) 124
• Air Consumption At 80 Psig 80 SCFM
• Horn Material Galvanized Steel
• NPT Size (Inch) 1
• Overall Length 44.25 in
• Face Diameter 12.5 in

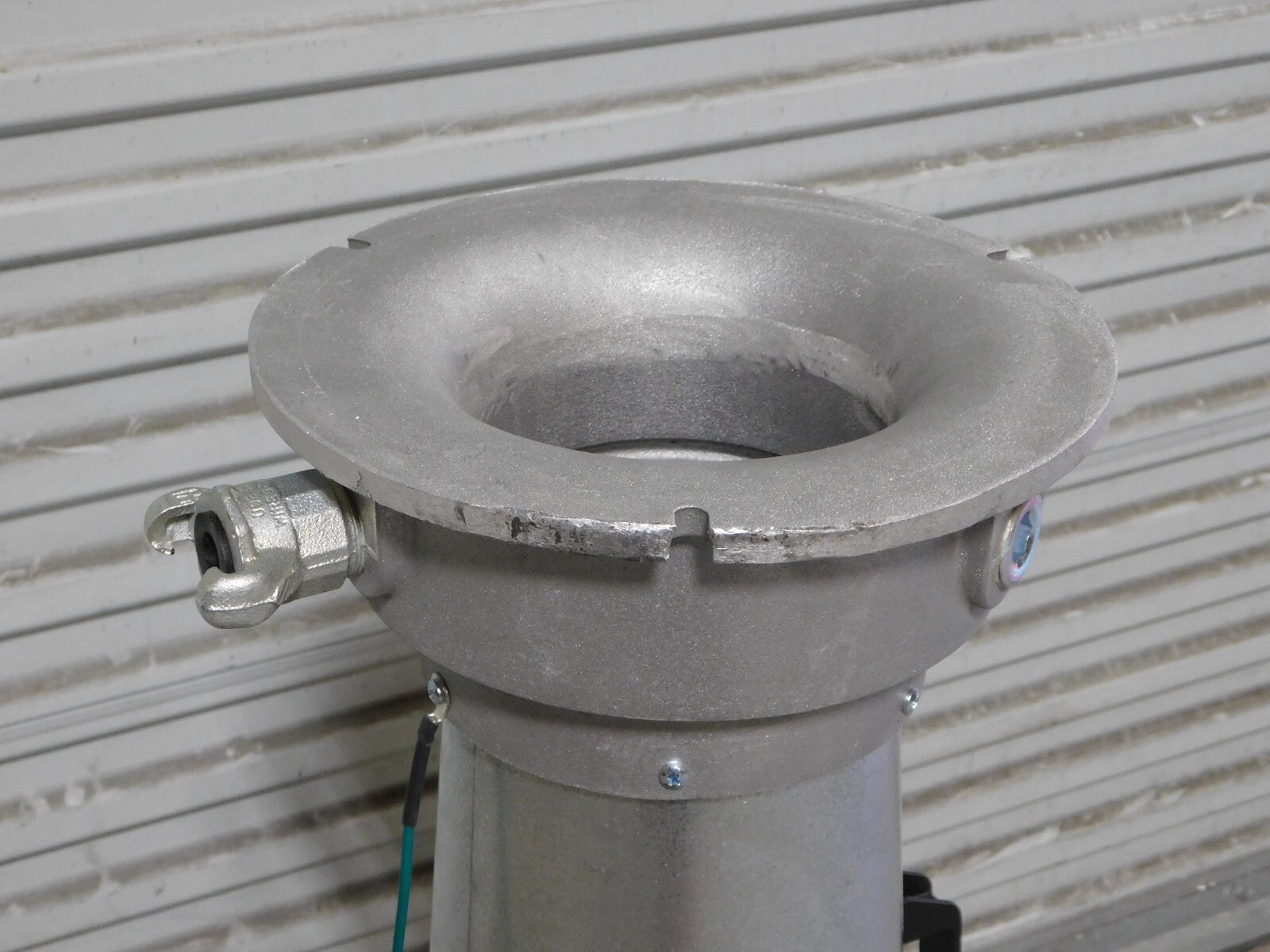

• Base Slot Diameter 0.4 in
• Housing Material Steel
• Hazardous Location Yes
• Application Moving Air in Refineries, Utility and Power Plants, Shipyards, Paper and Pulp Plants, The Marine and Steel Industry and Manhole Operations
• Overall Length (Decimal Inch) 44.2500
• Base Diameter (Decimal Inch) 11.25 in
• Face Diameter (Decimal Inch) 12.5000
• Base Circle Diameter (Decimal Inch) 10.5000
• Base Slot Diameter (Decimal Inch) 0.4000
