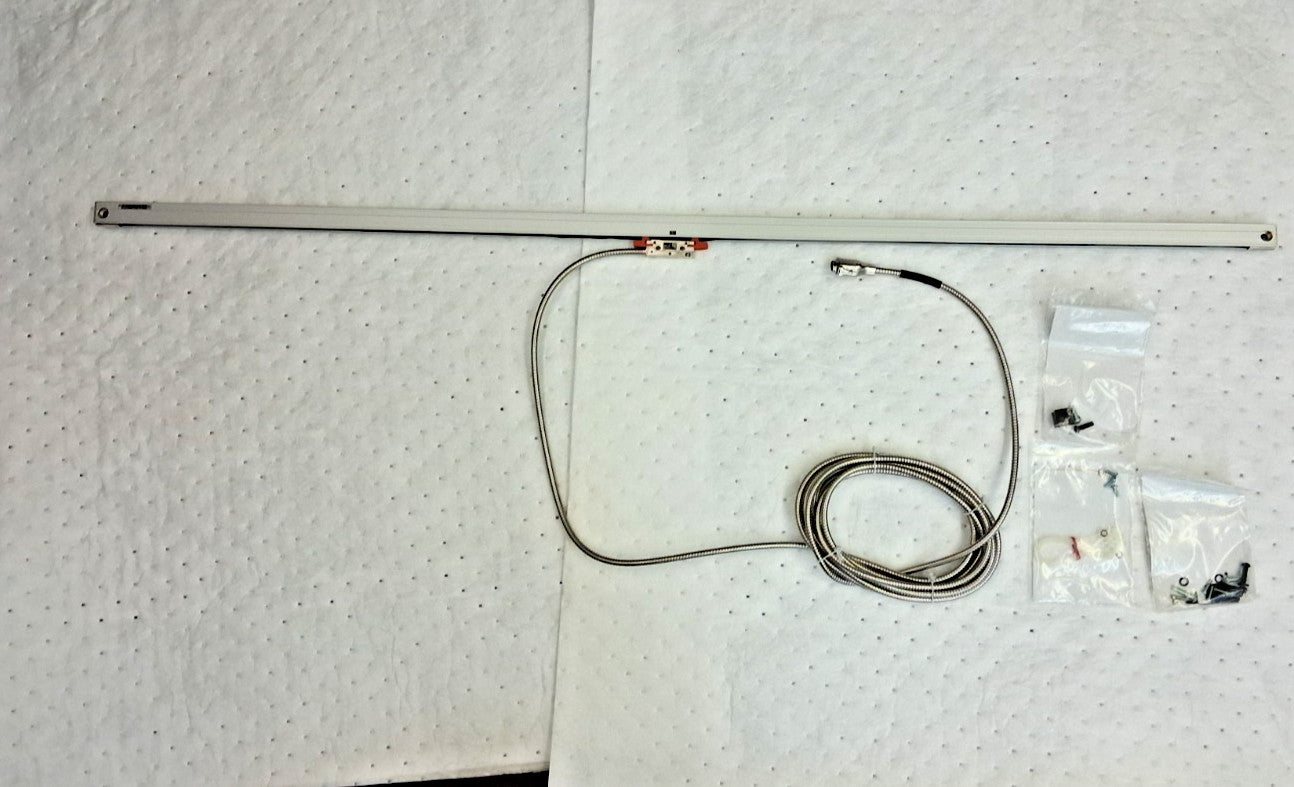

ACU-RITE DRO Linear Scale 48" Max Measuring .000200" Resolution 558125-48

ACU-RITE
DRO Linear Scale

MSRP: $1610

• Scale Type: Glass
• Maximum Measuring Range (Decimal Inch): 48.0000
• Maximum Measurement (mm): 48.00
• Maximum Measuring Range (mm): 1225.00
• Resolution (mm): 0.0050 Resolution (Decimal Inch): 0.000200
• Resolution (Micron): 5.00
• Resolution: 0.0050 mm; 0.000200 in; 5.00 μm
• Scale Length (mm): 1219.20 Accuracy (micrometer): 3; 5
• Accuracy (Decimal Inch): 0.000200
• Ip Rating: IP53; IP64
• Cable Connection Type: DE-9P
• Cable Length (Meters): 6.00
• Cable Length (Inch): 228.0000
• Overall Length: 54.3600
• Application: Metrology

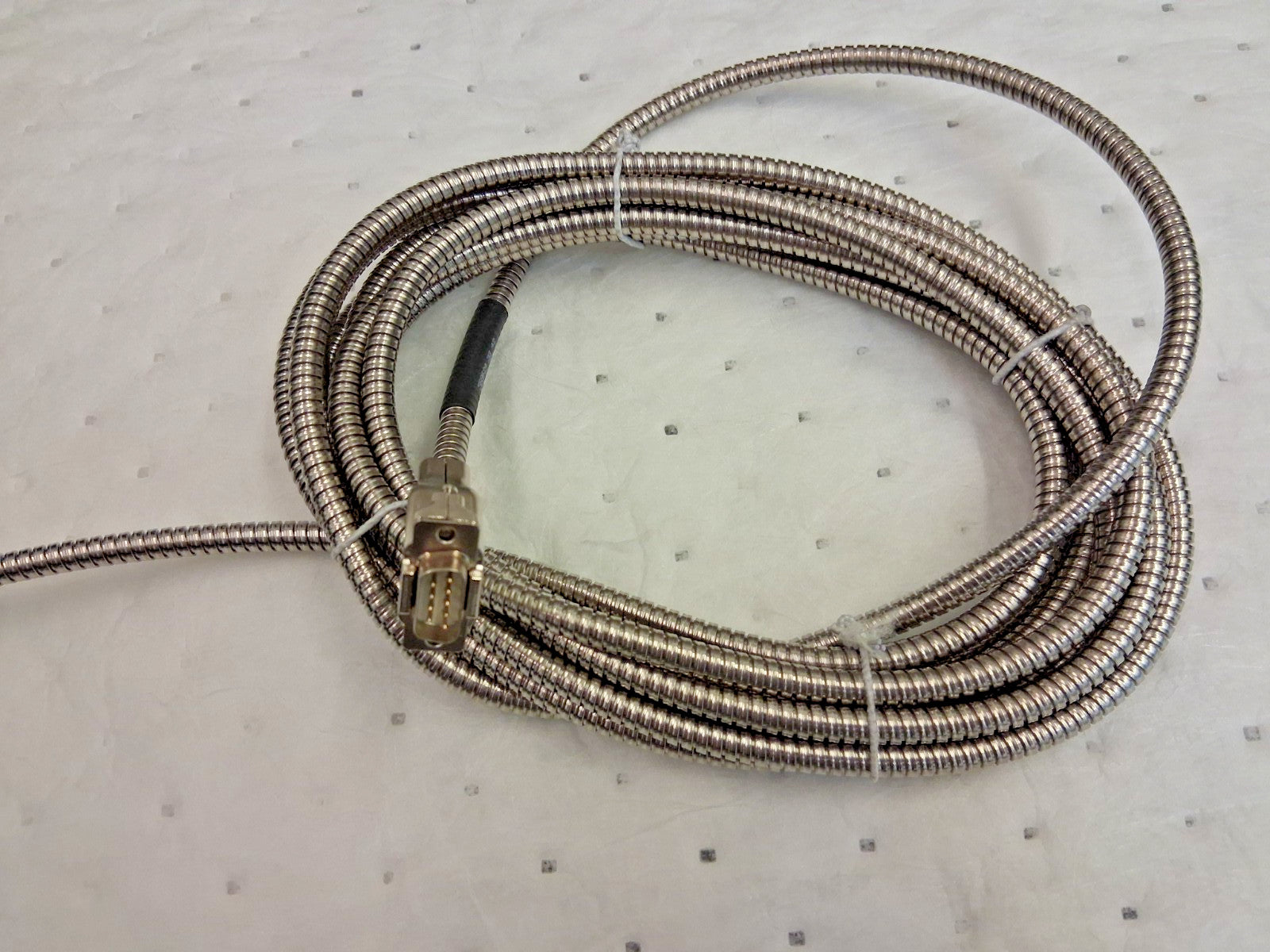

• Features: Flexible Mounting; Durable & Rugged Scale Case; Easy Workpiece Zero-Reset After Power Loss; Position-Trac - Enables Quick; Armored Cable

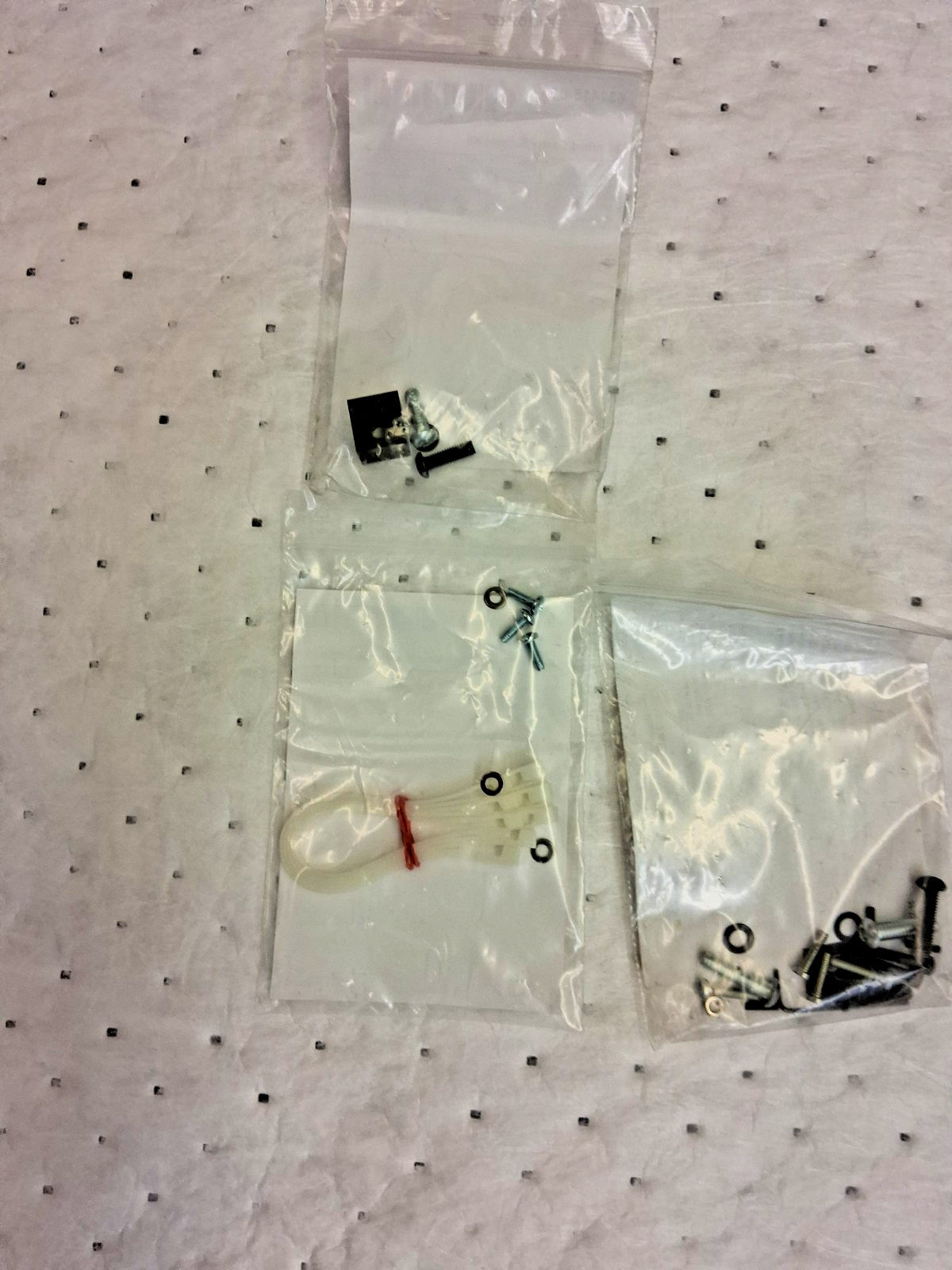

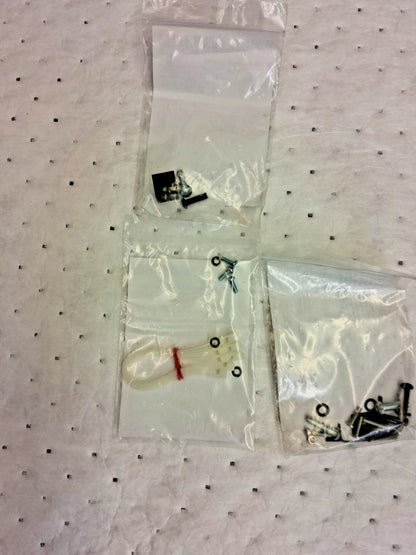

• Includes: Mounting Spar For Use With: Grinders; EDMs; Milling Machines; Lathes; Inspection Equipment

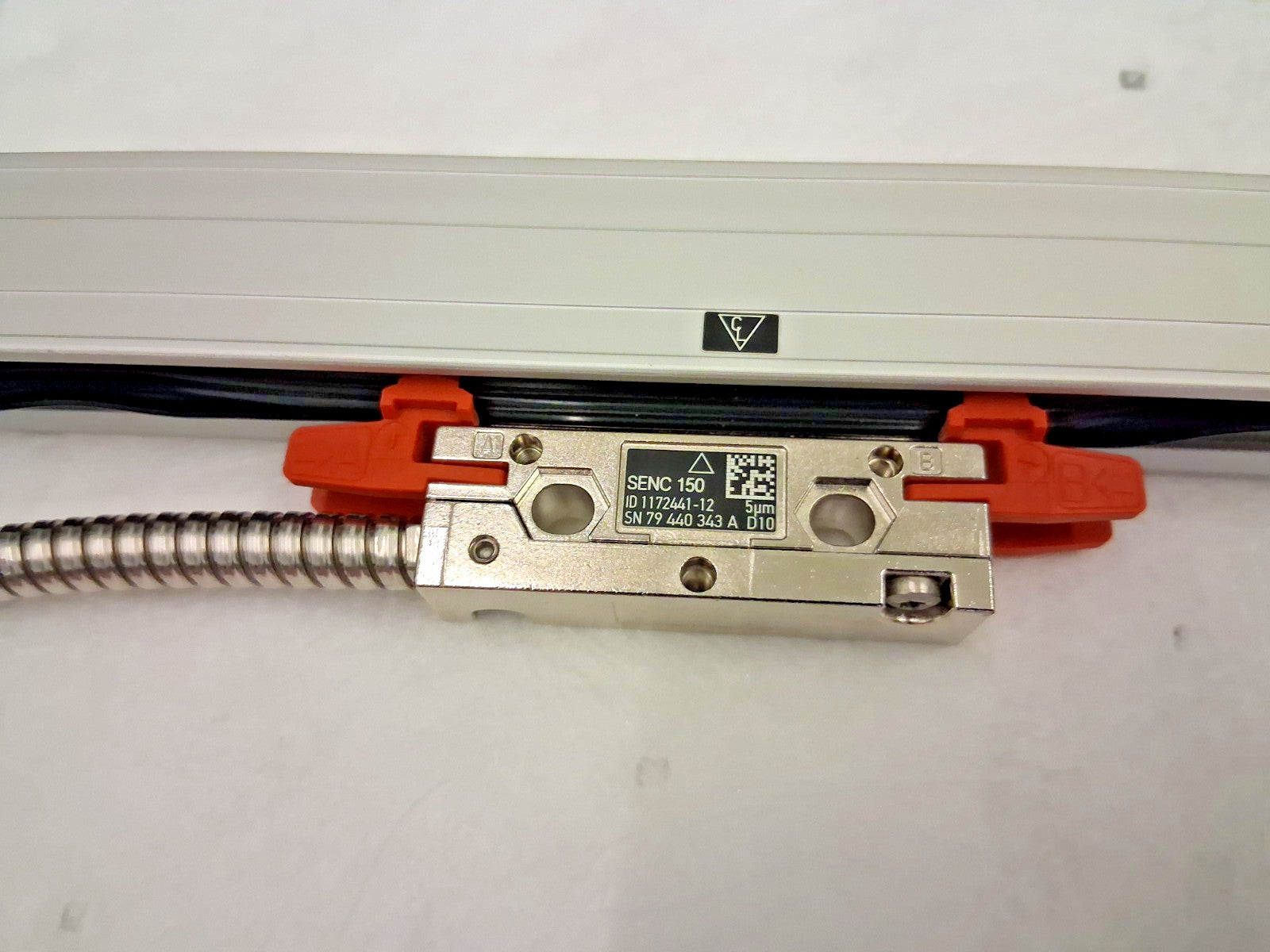

• Series: SENC 150
• Operating Temperature Range (C): 0 to 50
• Storage Temperature Range (C): -20 to 70
• UNSPSC Code: 41111900

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
