Acu-Rite DRO Linear Scale 13" Max Measuring 0.000200" Resolution 558115-13

Acu-Rite
DRO Linear Scale

MSRP: $660

• Scale Type Glass
• Maximum Measuring Range (Decimal Inch) 13.0000
• Maximum Measurement (mm) 13
• Maximum Measuring Range (mm) 325.00
• Resolution (mm) 0.0050
• Resolution (Decimal Inch) 0.000200
• Resolution (Micron) 5.00
• Resolution 0.0050 mm; 0.000200 in; 5.00 μm
• Scale Length (mm) 330.20
• Accuracy (micrometer) 3; 5
• Accuracy (Decimal Inch) 0.000200
• Ip Rating IP53; IP64
• Cable Connection Type DE-9P
• Cable Length (Meters) 3.9624
• Cable Length (Inch) 156
• Overall Length 19.36
• Application Metrology
• Features Flexible Mounting; Durable & Rugged Scale Case; Easy Workpiece Zero-Reset After Power Loss; Position-Trac - Enables Quick; Armored Cable
• Includes Mounting Spar
• For Use With Grinders; EDMs; Milling Machines; Lathes; Inspection Equipment
• Series SENC 150
• Operating Temperature Range (C) 0 to 50
• Storage Temperature Range (C) -20 to 70
• UNSPSC Code 41111900

*NIB*

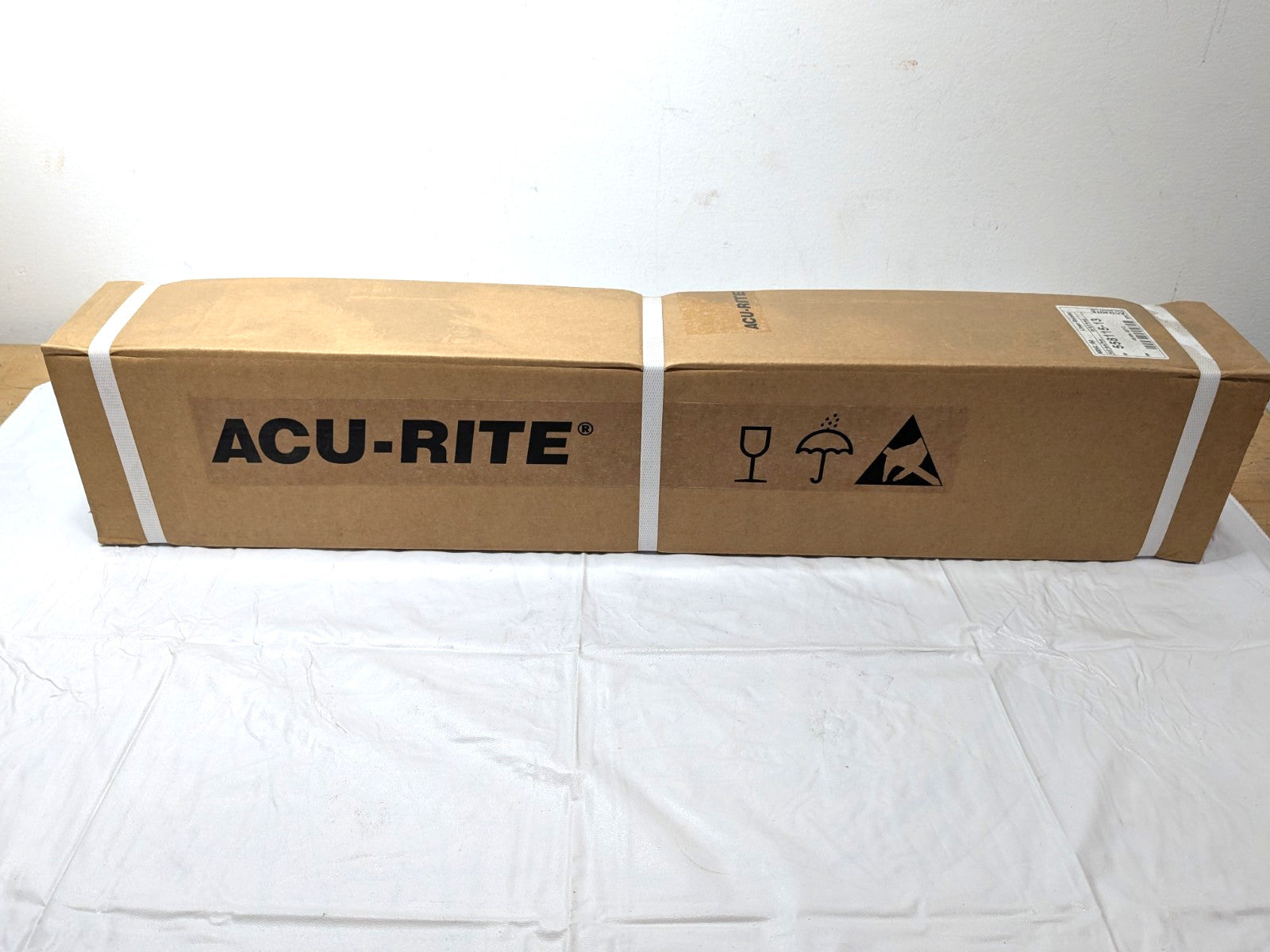

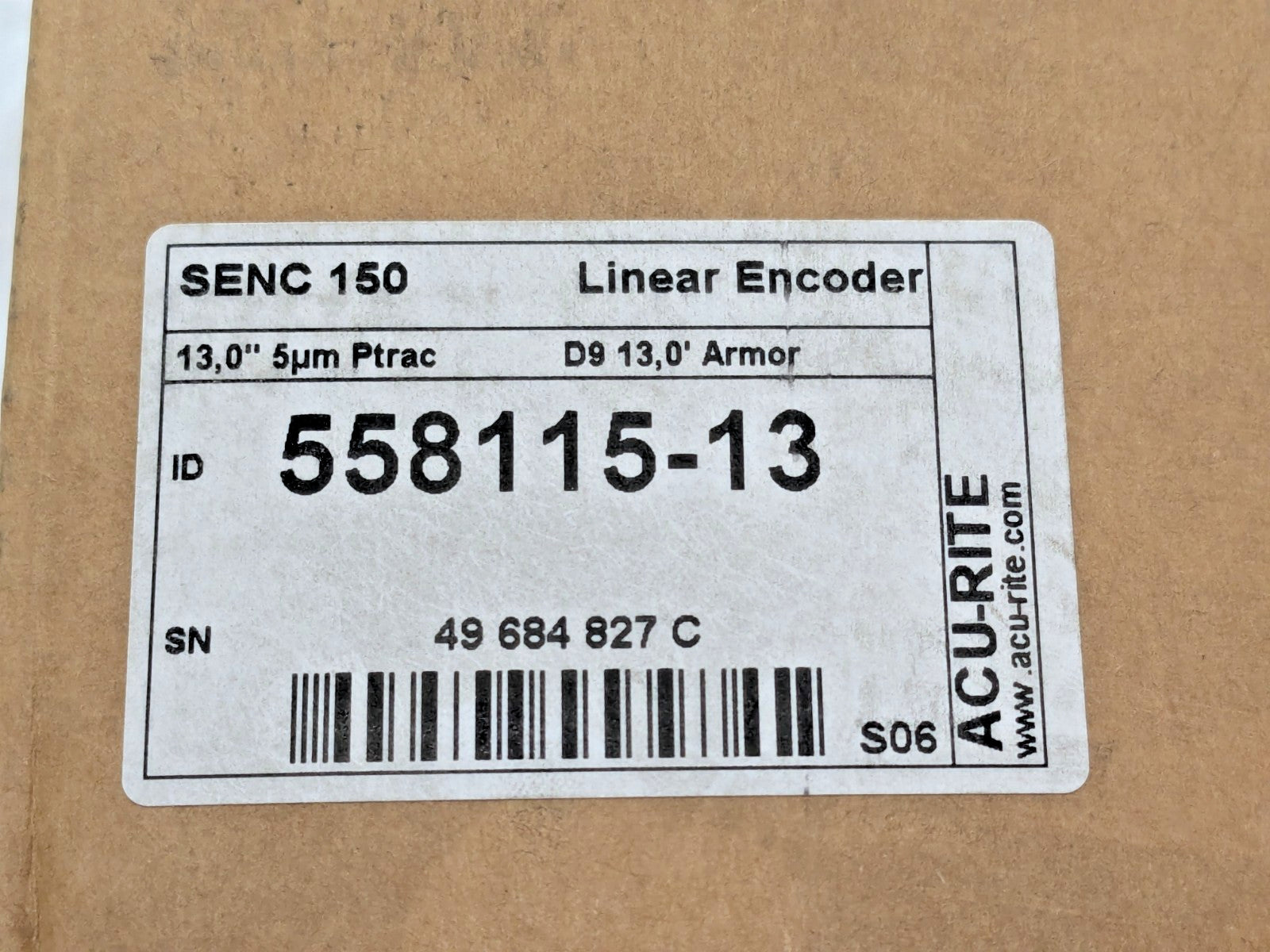

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
