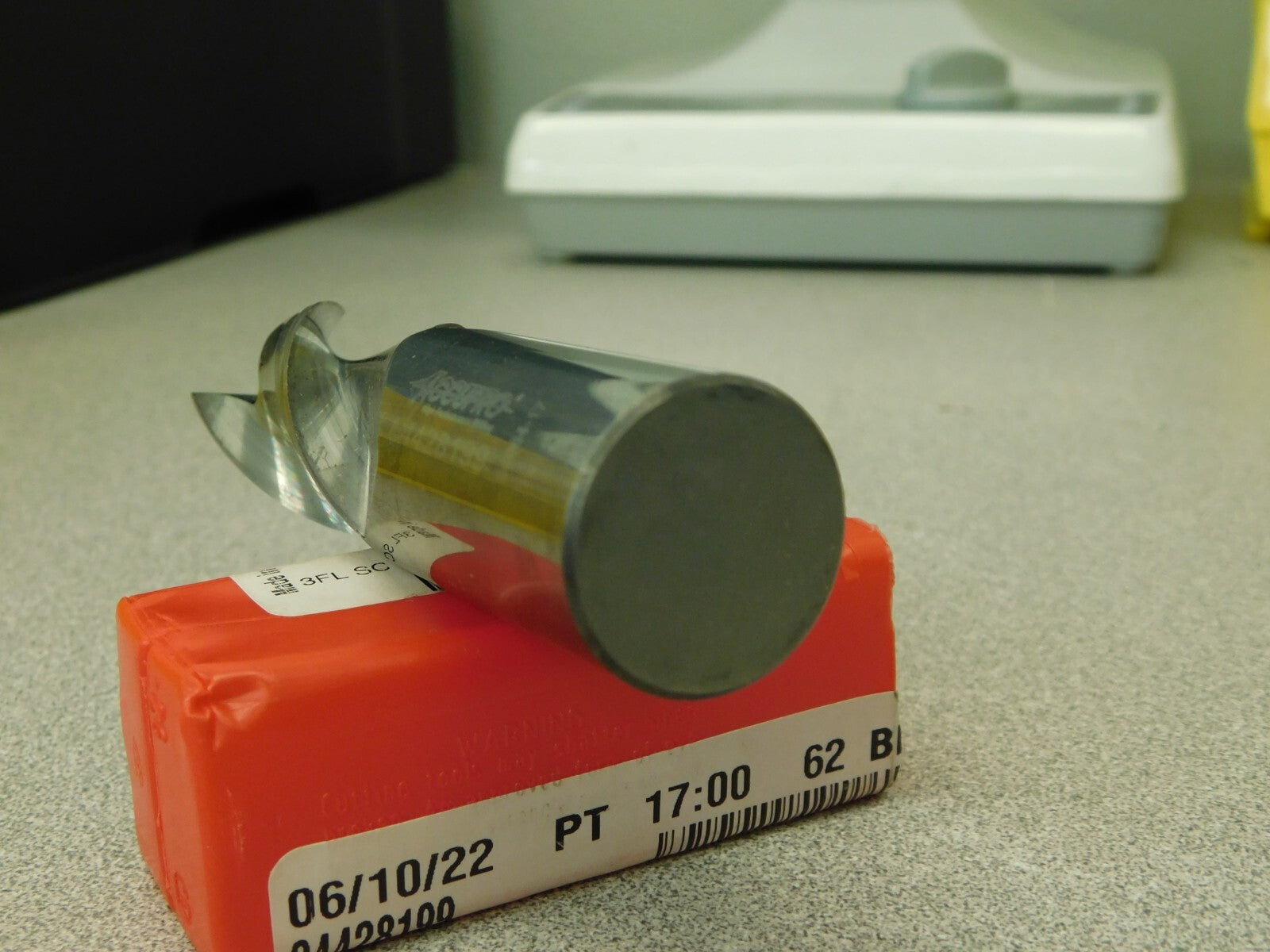

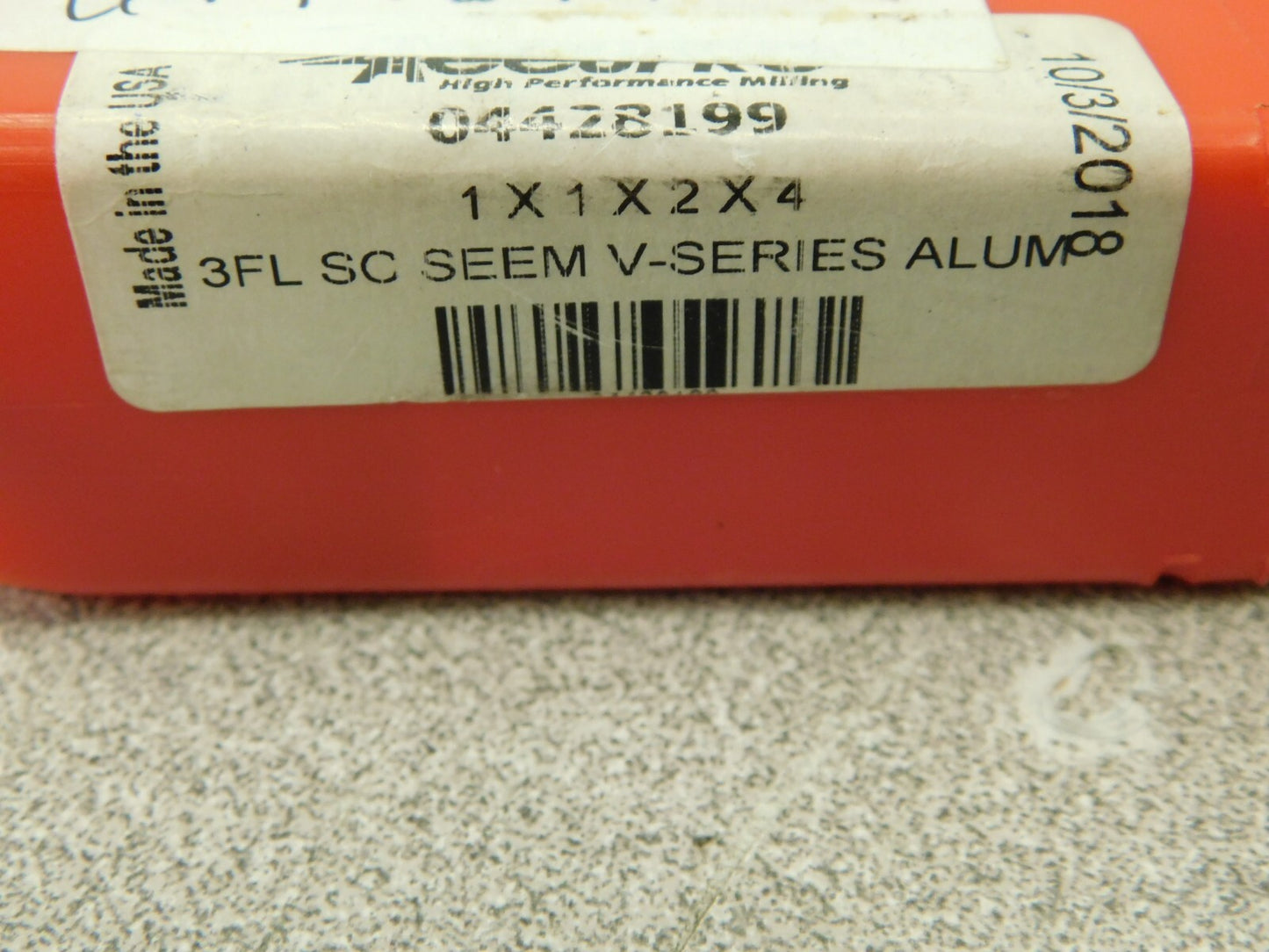

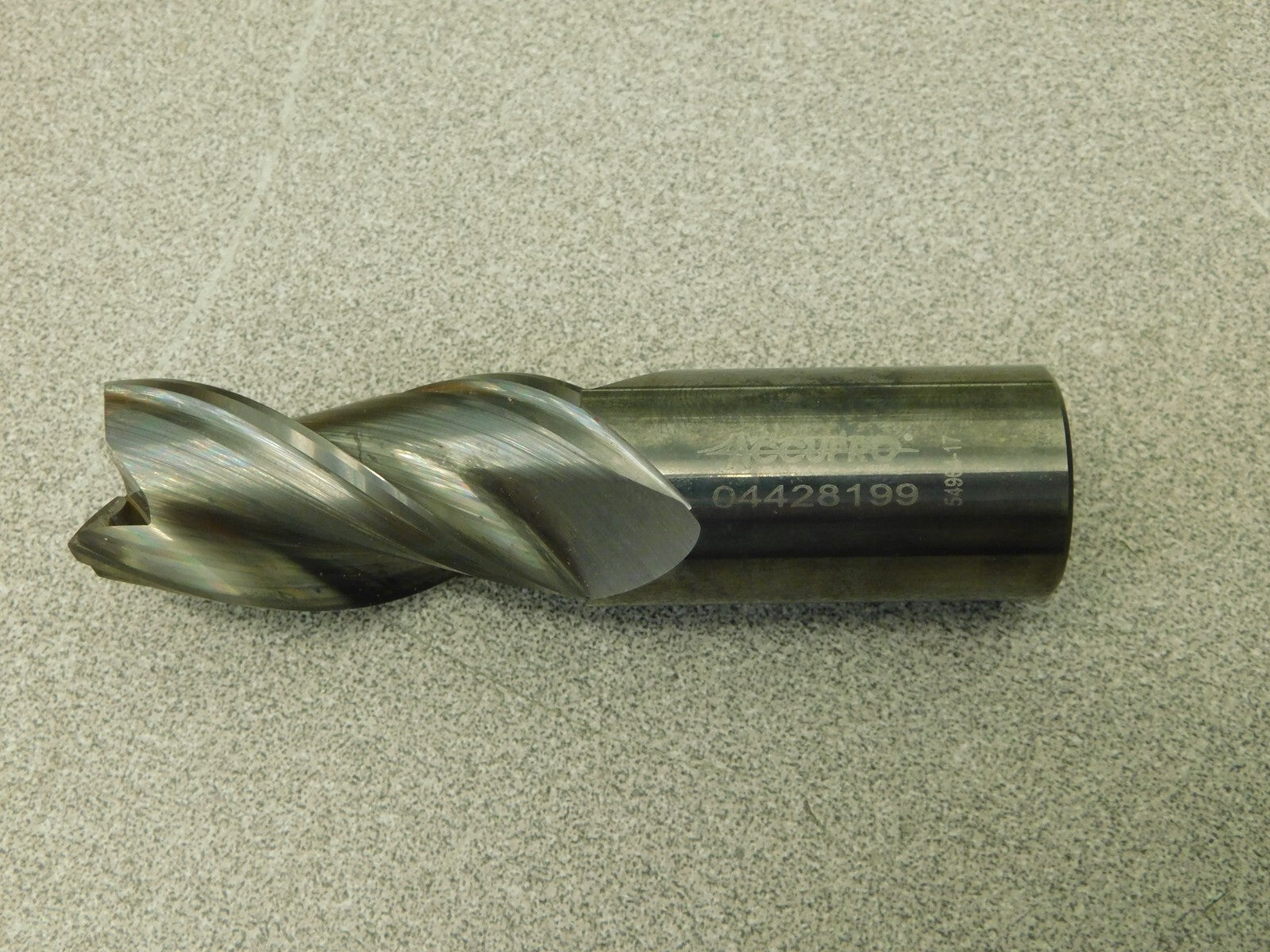

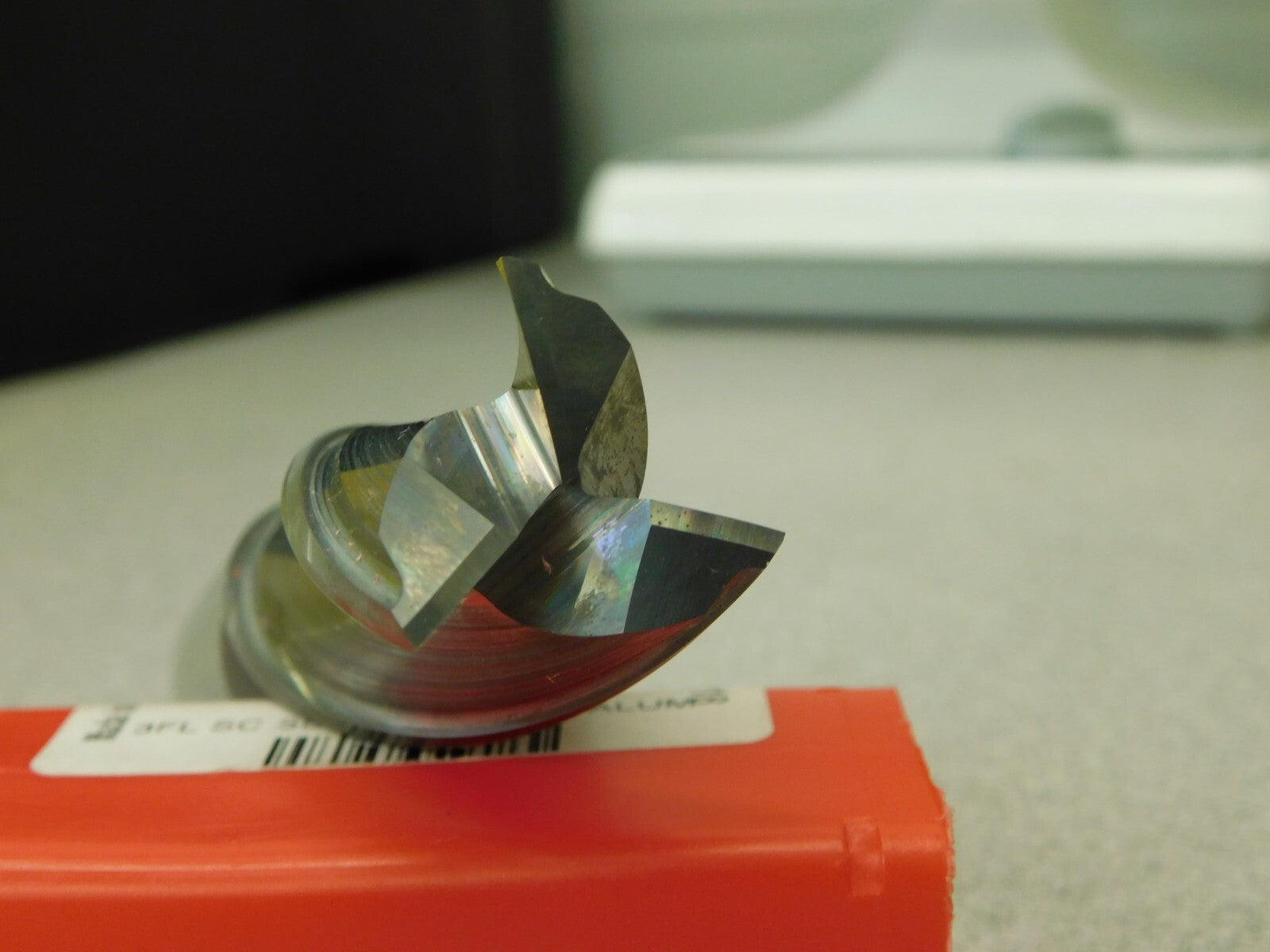

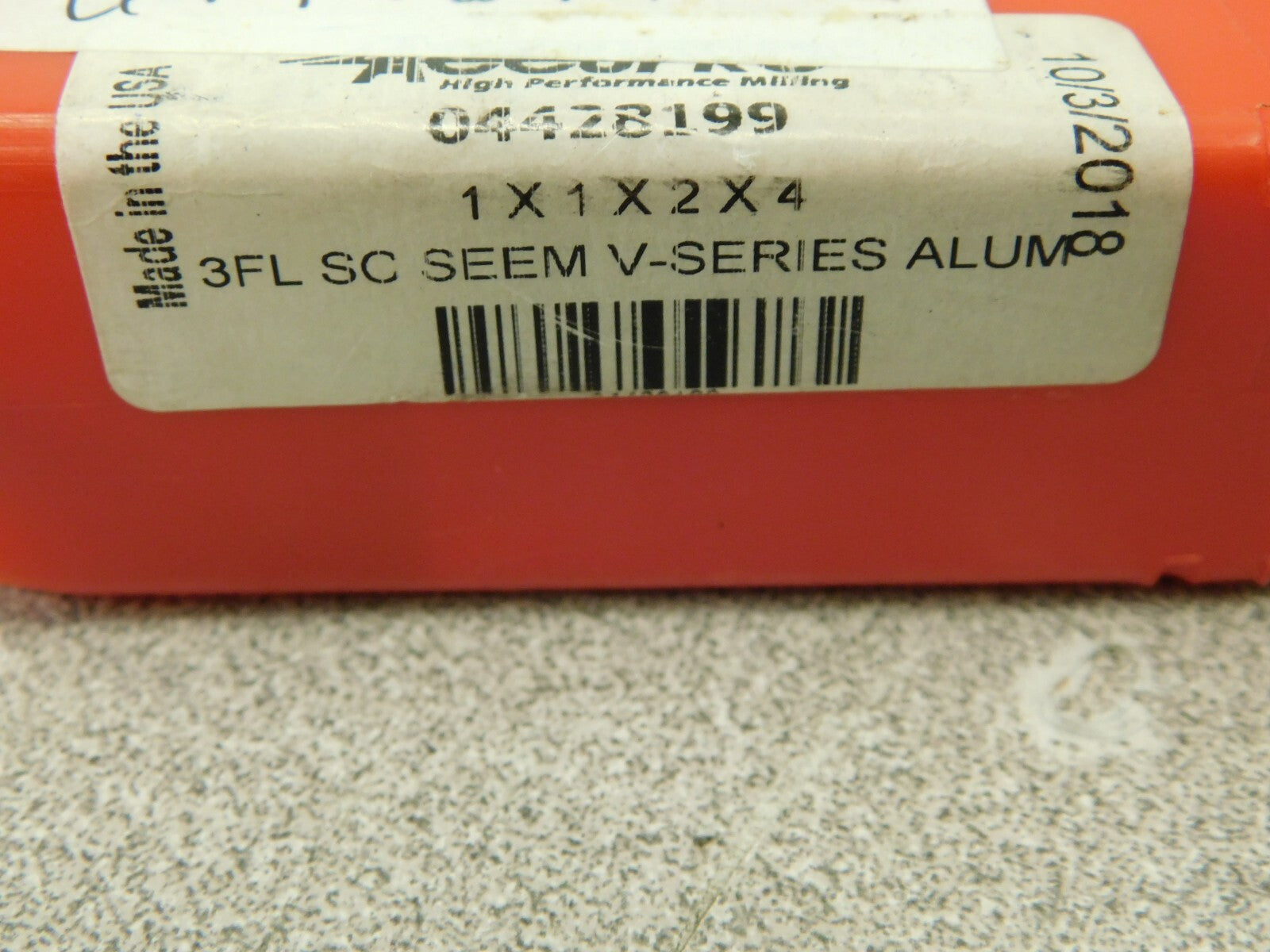

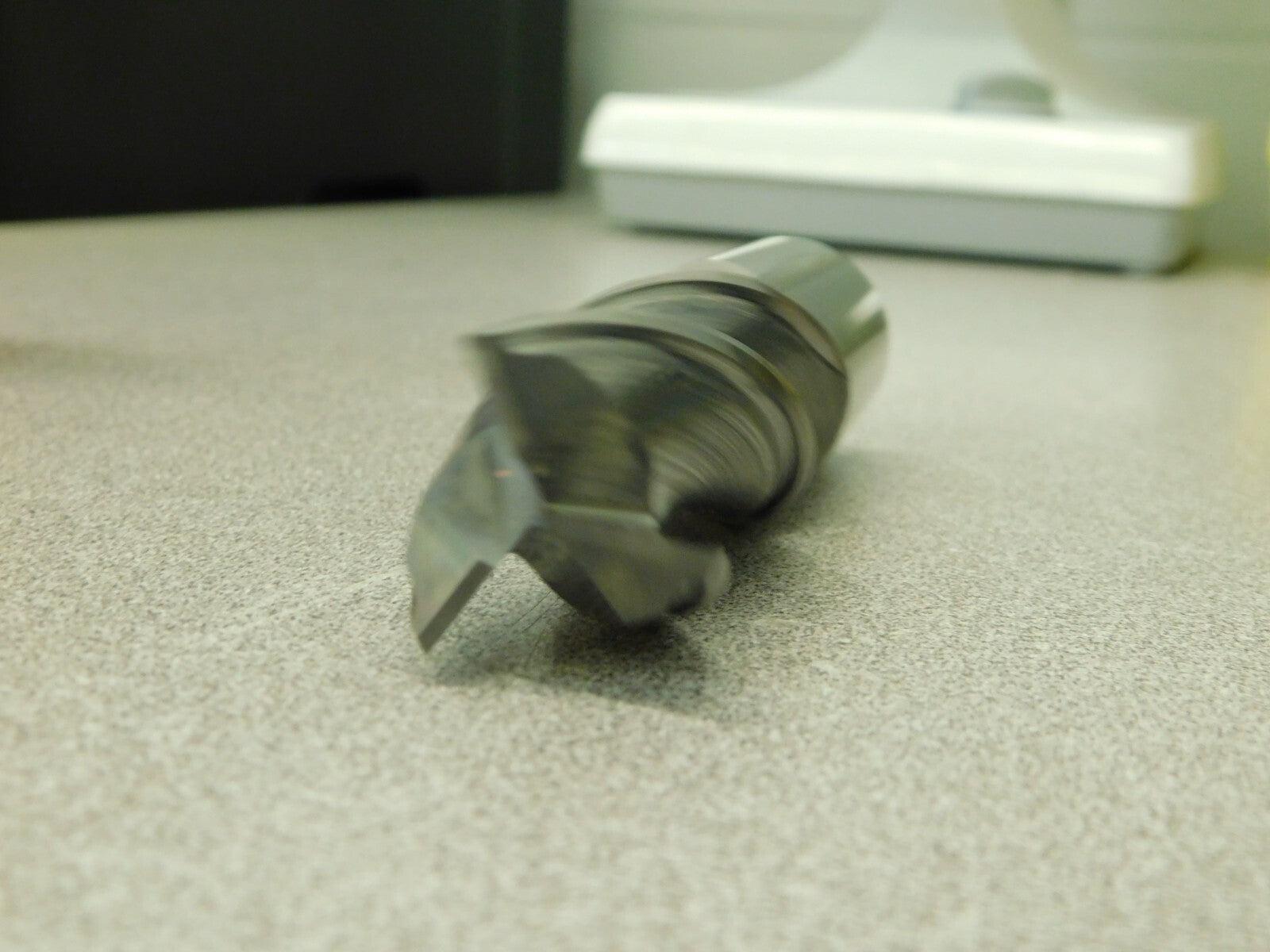

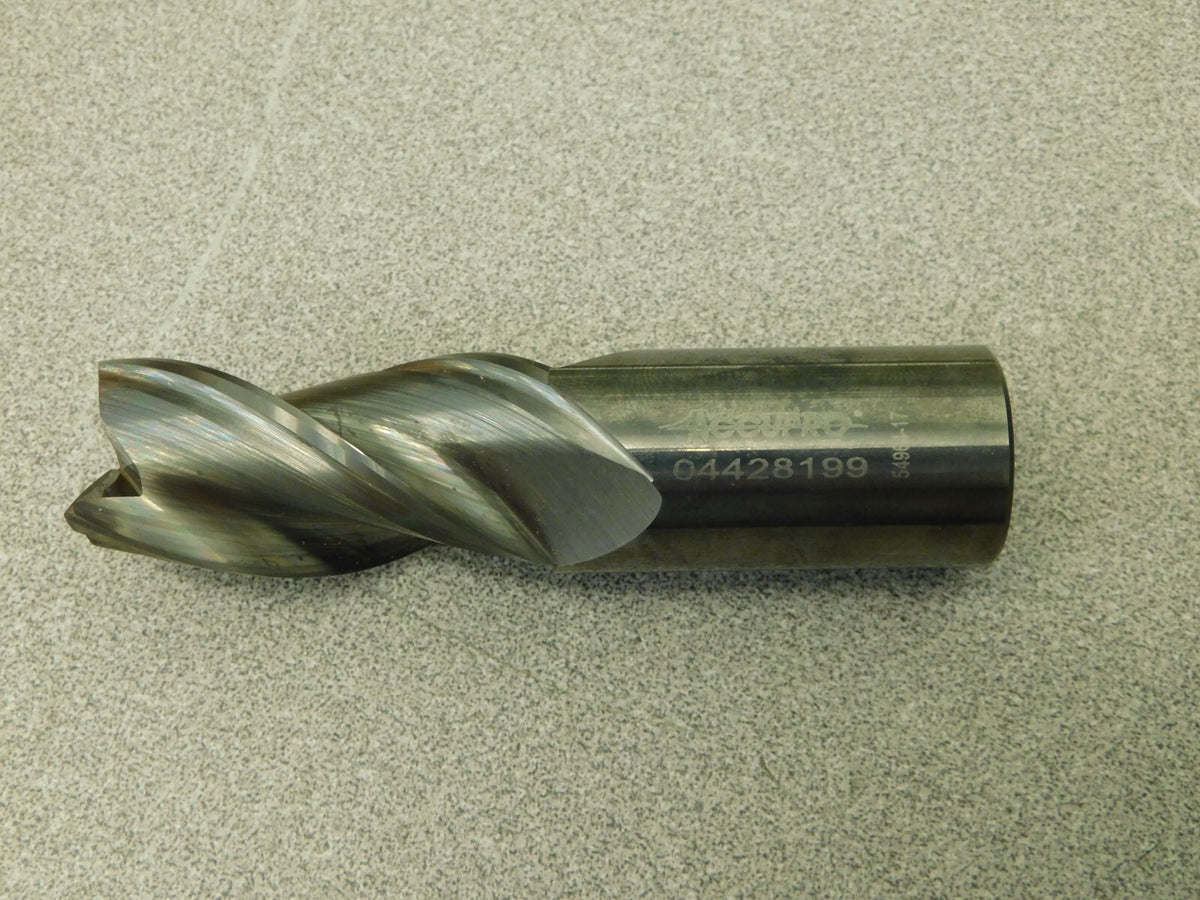

Accupro Solid Carbide Square End Mill 1″, 2″ LOC 1″ Shank Diam 3 Flute 3511000C5

• Mill Diameter (mm) 1in; 1.0in
• Mill Diameter (Inch) 1
• Mill Diameter (Decimal Inch) 1.0000
• Number of Flutes 3
• Length Of Cut 2in; 2.0in
• Length of Cut (Inch) 2
• Length of Cut (Decimal Inch) 2.0000
• Material Solid Carbide
• Shank Diameter (Inch) 1in; 1
• Single or Double End Single
• Finish/Coating ZrN
• Overall Length (Inch) 4; 4in
• Overall Length (Decimal Inch) 4in
• Center Cutting Center Cutting
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Helix Angle Variable
• Variable Helix Yes
• Shank Diameter Tolerance +0.0001/-0.0004 in
• Flute Type Spiral
• Length Type Regular
• Helix Style Medium
• Mill Diameter Tolerance (mm) +0.000/-0.002 in
• Mill Diameter Tolerance (Decimal Inch) +0.000/-0.002
• Material Grade C2
• Minimum Helix Angle 30?
• Maximum Helix Angle 40?
• Chipbreaker No
• Extended Reach No
• Shank Diameter Tolerance (Decimal Inch) +0.0001/-0.0004
