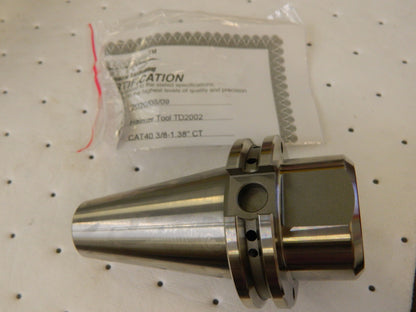

ACCUPRO End Mill Holder: CAT40 Taper Shank, 3/8″ Hole 772030

ACCUPRO

 End Mill Holder: CAT40 Taper Shank, 3/8″ Hole 772030
MSRP: $130

•

• Shank Type Taper
• Overall Length (Inch) 4
• Overall Length (Decimal Inch) 4.0000
• Taper Size CAT40
• Hole Diameter (Inch) 3/8
• Nose Diameter (Decimal Inch - 4 Decimals) 1.0000
• Nose Diameter (Inch) 1
• Projection (Inch) 1-3/8
• Projection (Decimal Inch) 1.3750
• Through Coolant Yes
• Clamping Depth (Decimal Inch) 1.3400
• Clamping Depth (mm) 34.04
• TIR (mm) 0.0050
• TIR (Decimal Inch) 0.000200
• Coolant Type Through-Spindle & DIN Flange

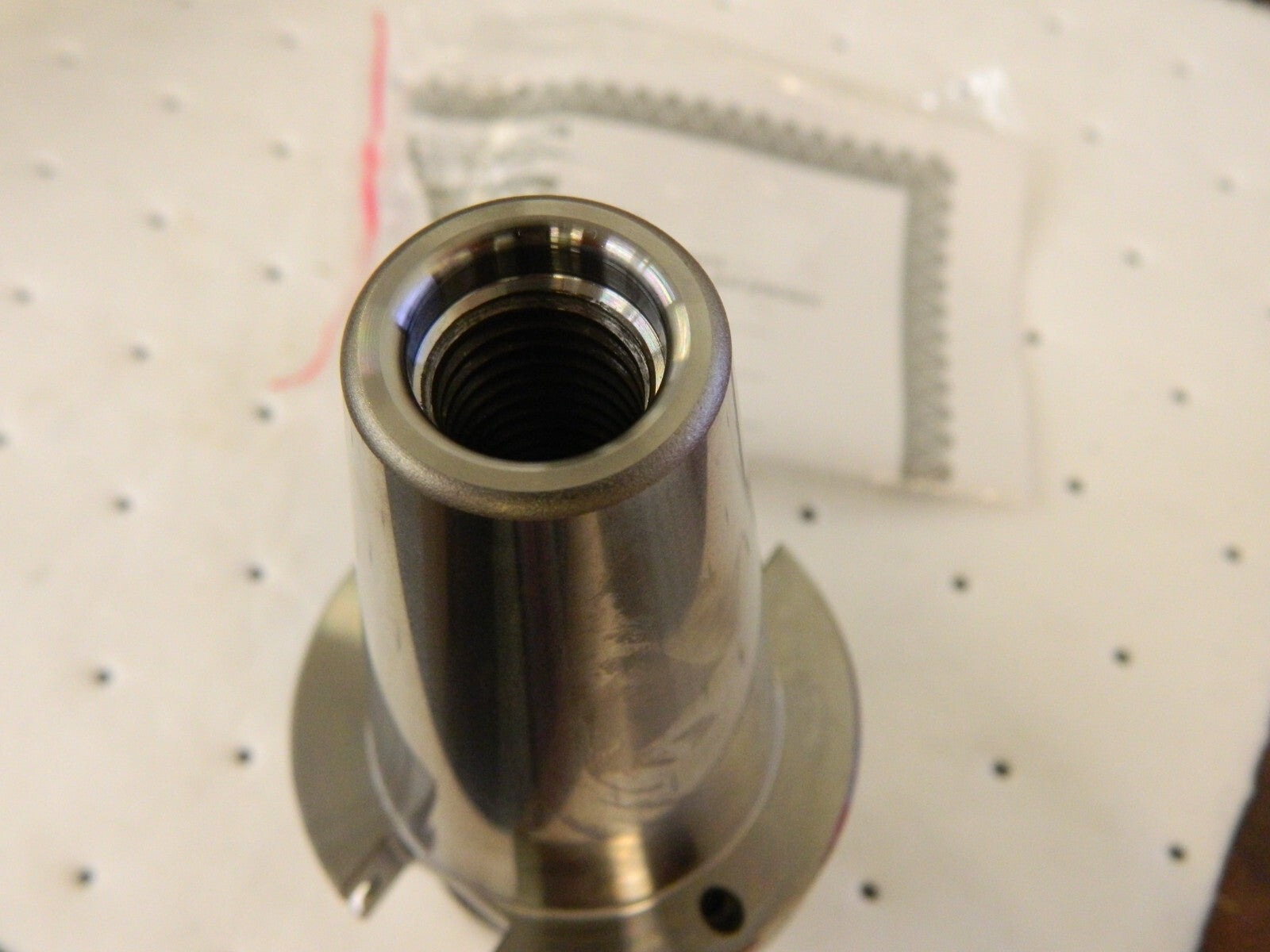

• Drawbar Thread Size 5/8-11
• Retention Knob Thread Size 5/8-11
• Balanced To Rpm 30000

 Please review photos, comes as shown.
