ACCUPRO End Mill: 5/16" Dia, 5/8" LOC, 4 Flute, Solid Carbide 58724725

Accupro
End Mill

MSRP: $50.00

• Mill Diameter (Decimal Inch) 0.3125
• Mill Diameter (Inch) 5/16
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.6250
• Length of Cut (Inch) 5/8
• Shank Diameter (Inch) 5/16
• Shank Diameter (Decimal Inch) 0.3125
• Overall Length (Decimal Inch) 4.0000
• Overall Length (Inch) 4
• Single Or Double End Single
• Coating/Finish Family AlTiN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach Yes
• Coolant Through No
• Helix Angle 40
• Coating/Finish AlTiN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Material Grade Micrograin
• Neck Length (Decimal Inch) 2.6250
• Reach Length (Inch) 2-5/8
• Length Of Cut Range (Decimal Inch) 0.6000 - 0.7000
• Mill Diameter Tolerance +0.0000/-0.0020 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Series ASQSC4-AT-CCER-40H
• System Of Measurement Fractional Inch
• UNSPSC Code 27112803

This item appears to be new and in good condition. SOLD AS IS.

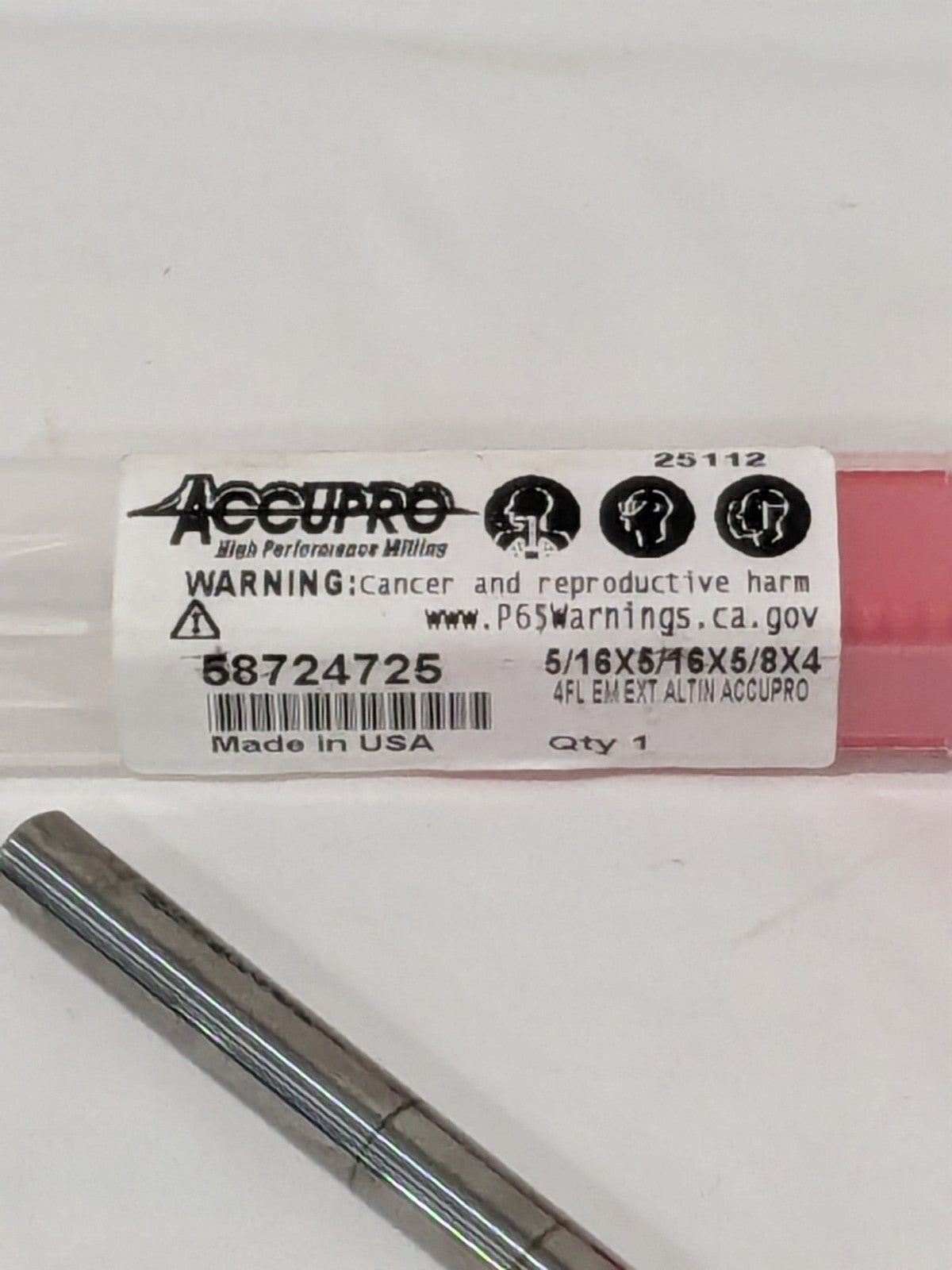

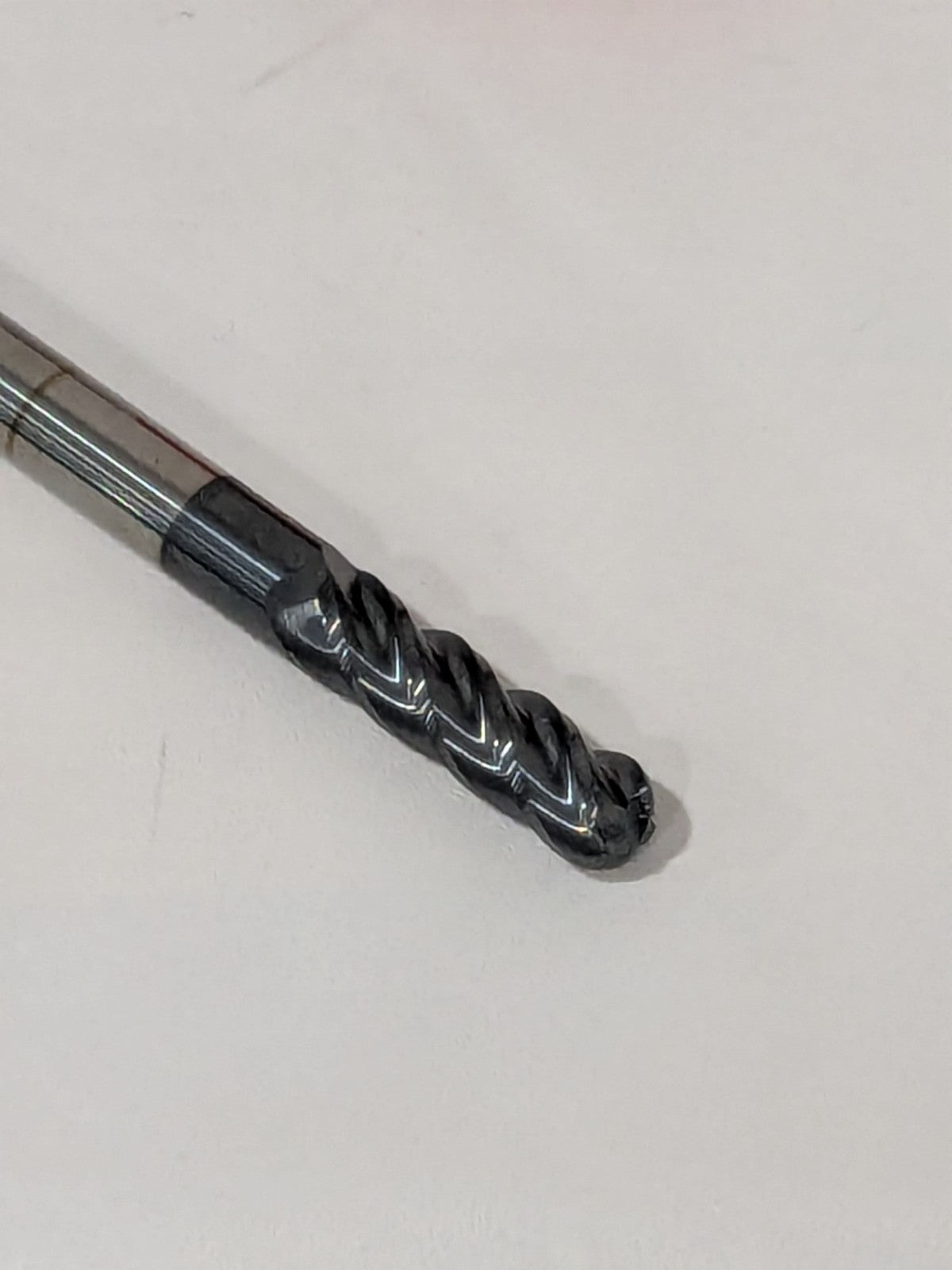

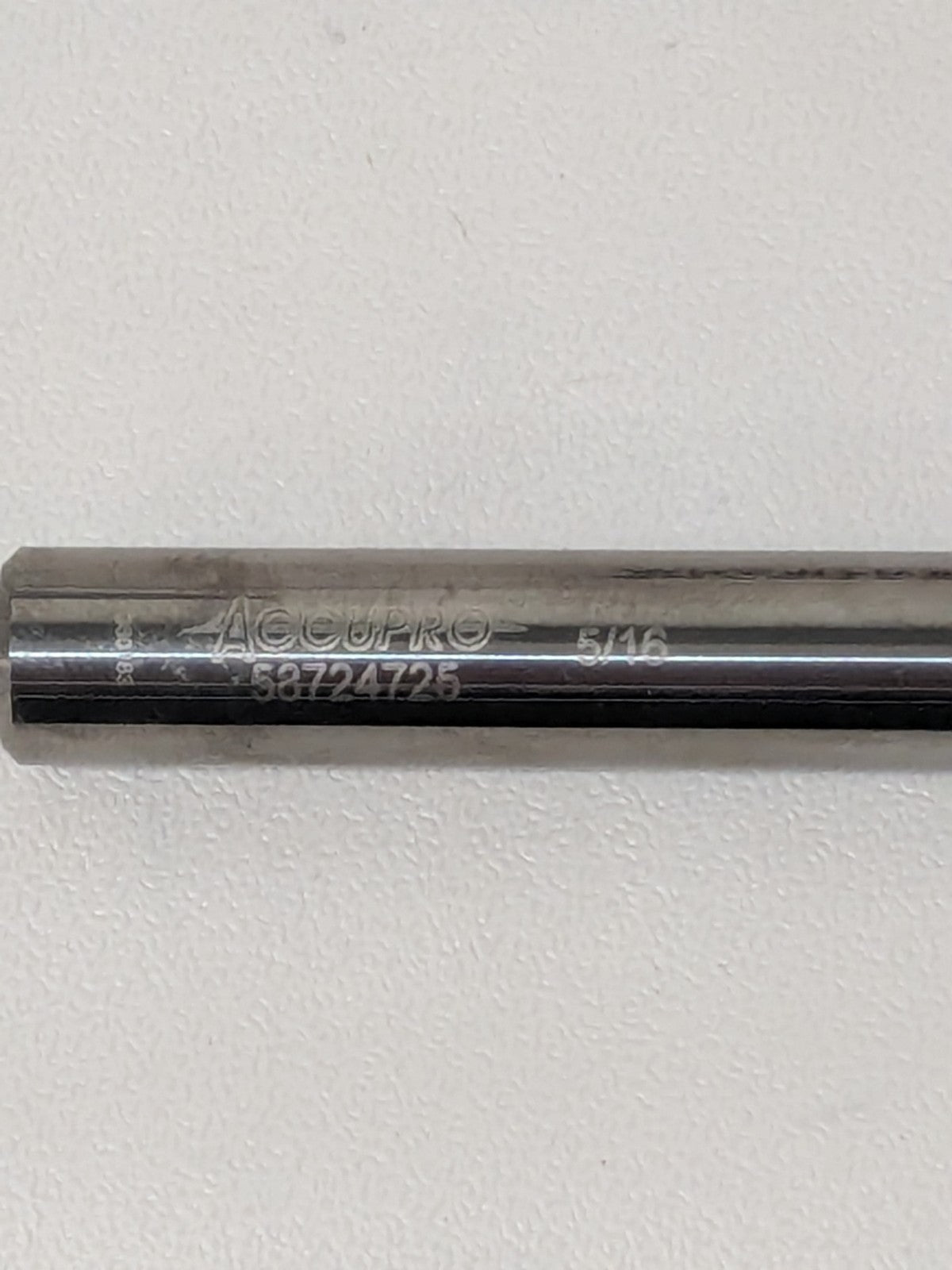

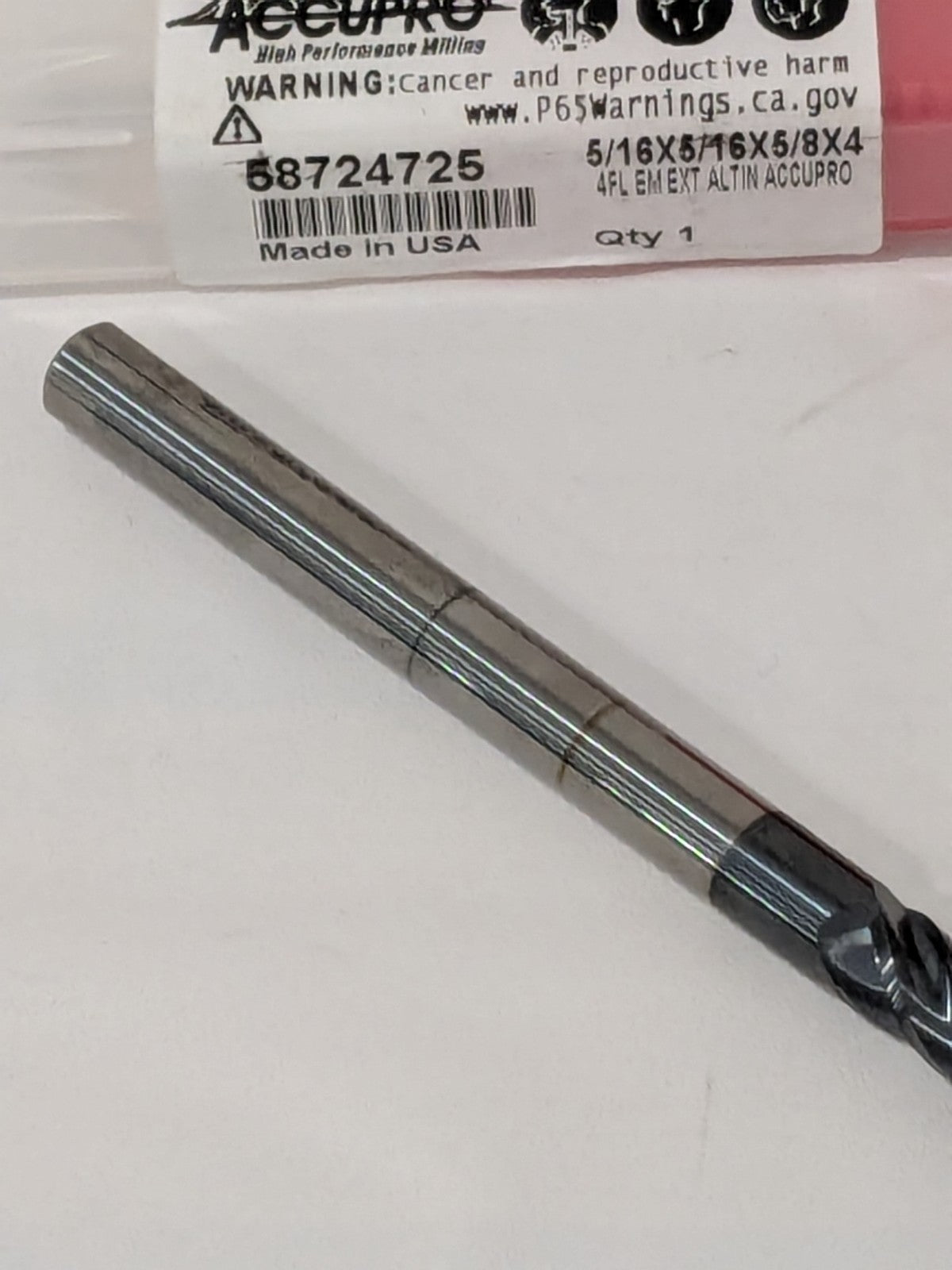

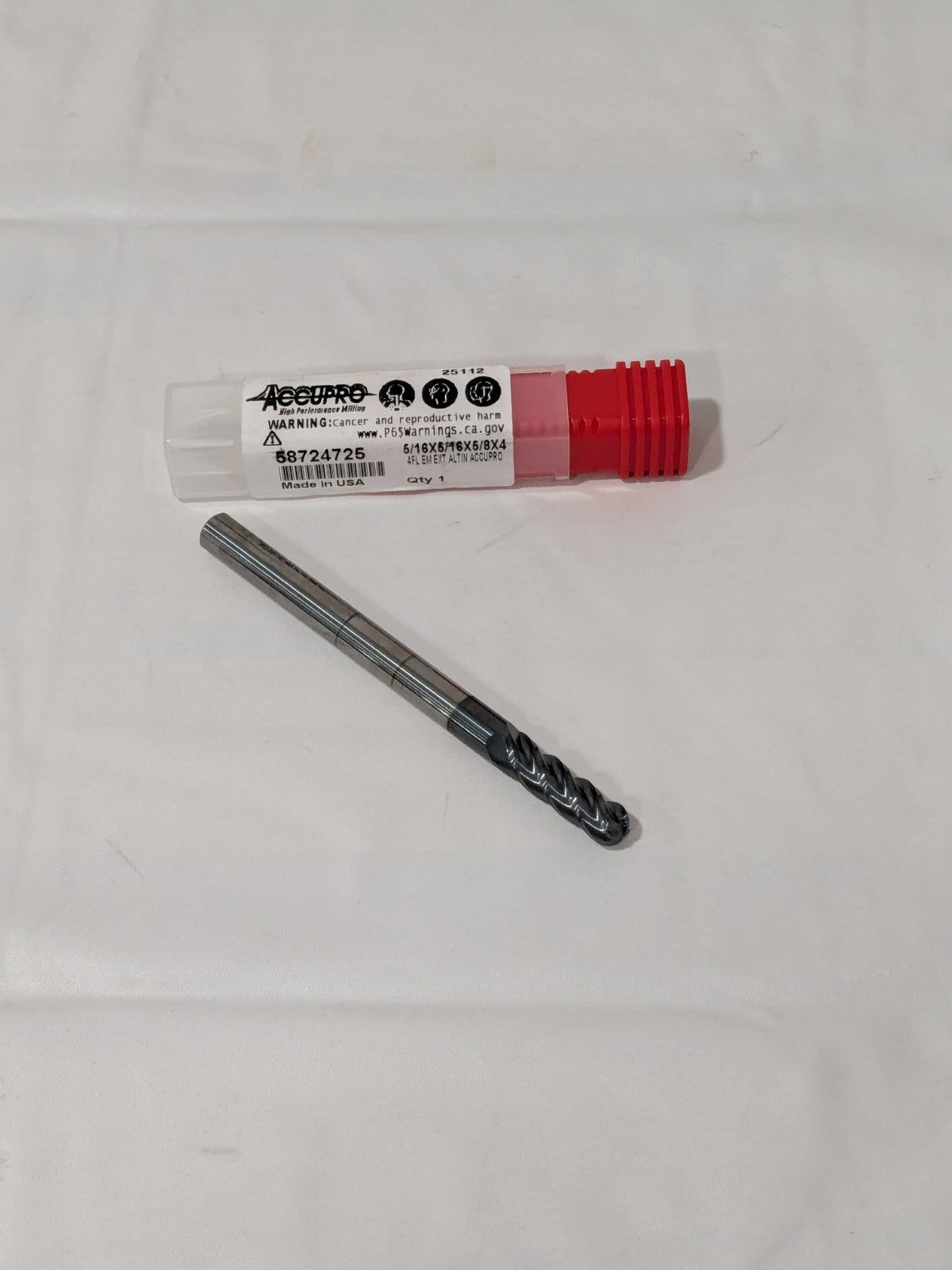

Please review photos, comes as shown.
