ACCUPRO Corner Radius End Mill: 5/8″ Dia 4 Fl Carbide 6504415

ACCUPRO

 Corner Radius End Mill: 5/8″ Dia 4 Fl Carbide 6504415


MSRP: $160

• Mill Diameter (Inch) 5/8
• Mill Diameter (Decimal Inch) 0.6250
• Mill Diameter (mm) 15.88
• Number Of Flutes 4
• Length of Cut (mm) 31.75
• Length of Cut (Inch) 1-1/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlCrTiN
• Overall Length (Inch) 3-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.1200
• Variable Index Yes
• Variable Helix Yes
• Cutting Direction Right Hand
• Overall Length (mm) 88.90
• Overall Length (Decimal Inch) 3.5000
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.6250
• Length Type Regular
• Flute Type Helical
• Extended Reach No
• Shank Type Straight-Cylindrical
• Shank Diameter (Decimal Inch) 0.6250
• Shank Diameter (Inch) 5/8
• Mill Diameter Tolerance +0.000000 to -0.025000 mm; +0.000000 to -0.001000 in
• Shank Diameter Tolerance h6
• Overall Length Tolerance +0.0400 to -0.0000 in
• UNSPSC Code 27112803
• Material Grade Micrograin
• Series VS
• TIR Maximum (Decimal Inch) 0.0012
• TIR Maximum (mm) 0.17
• Coating Classification PVD

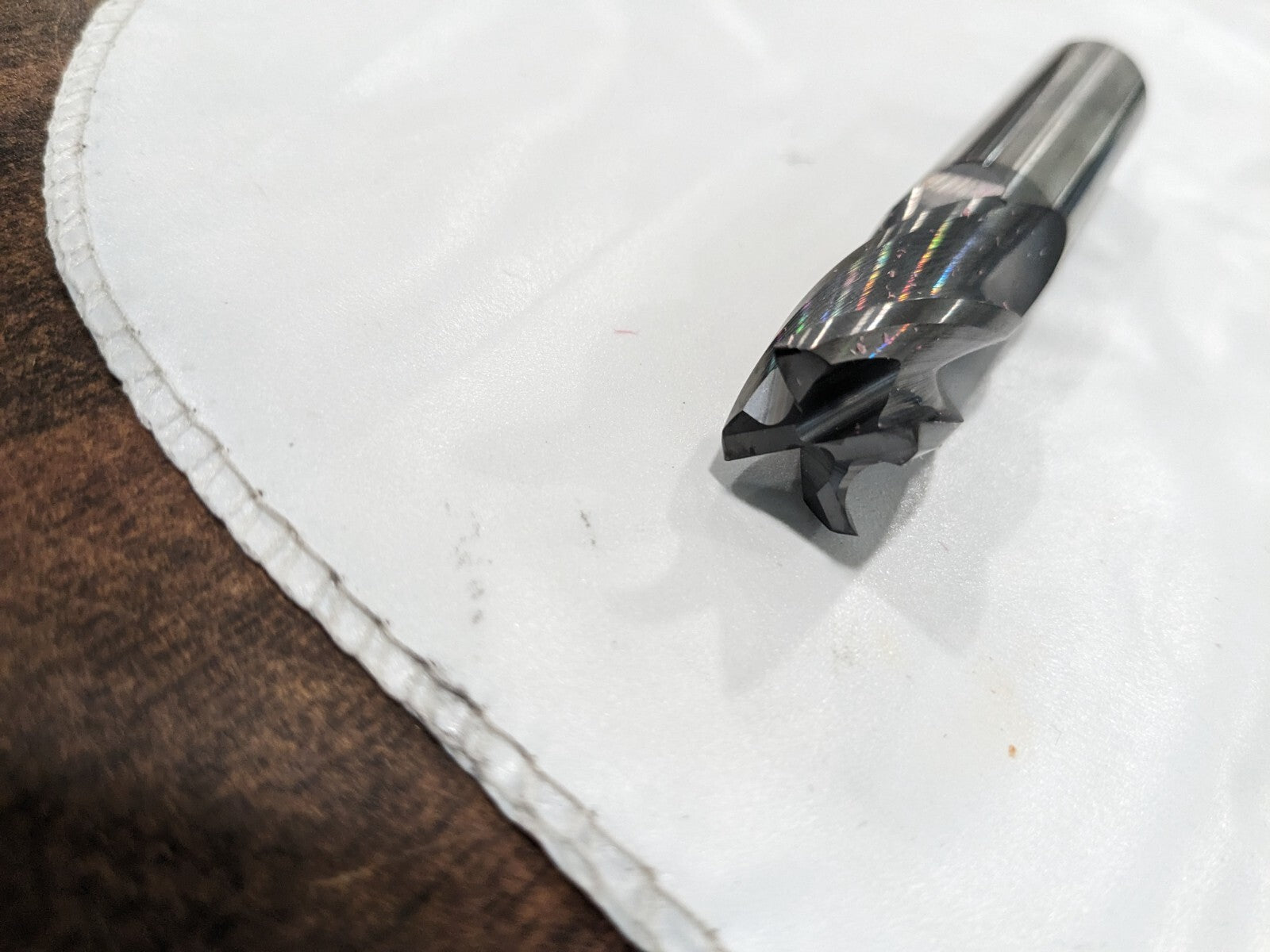

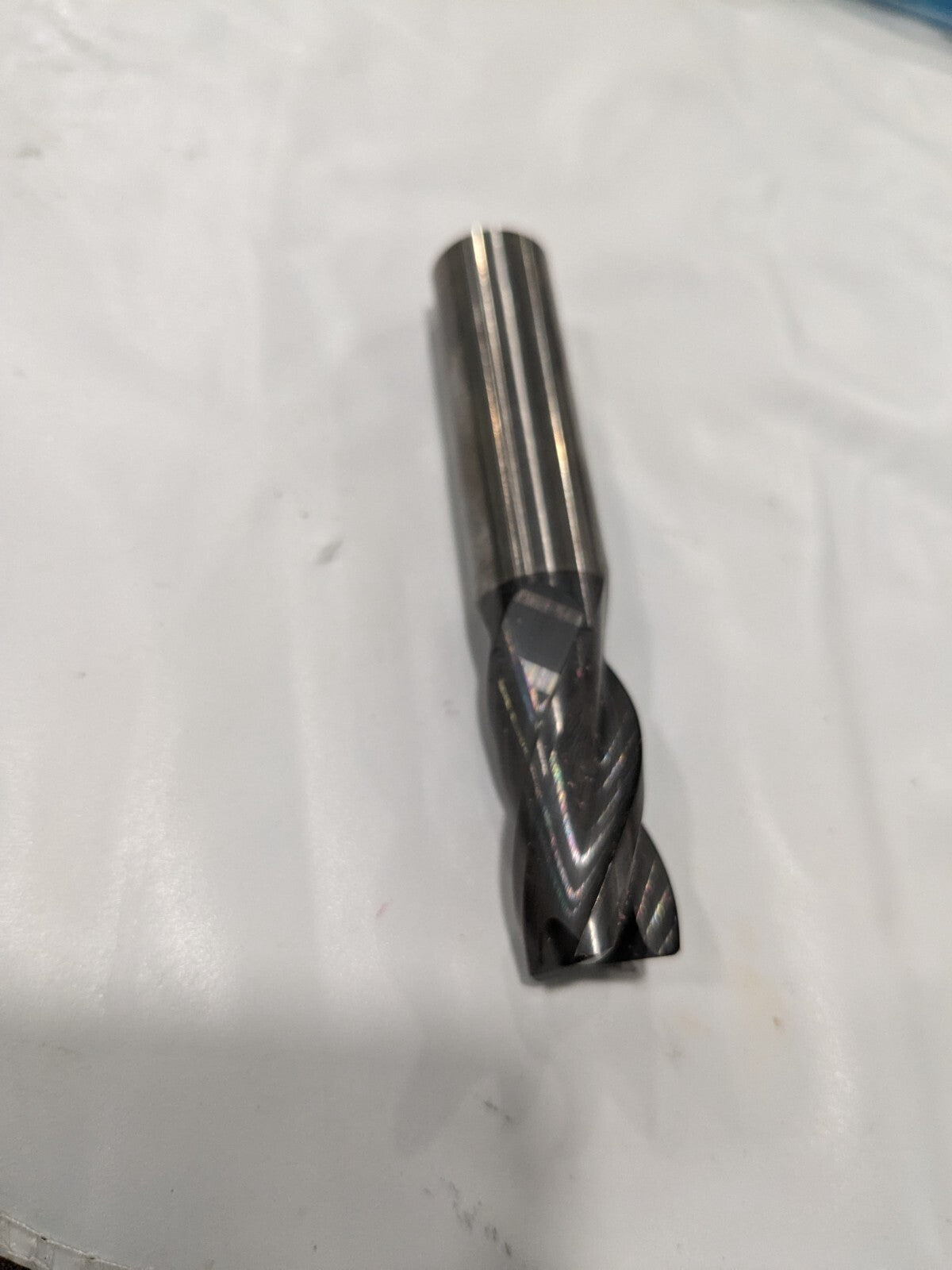

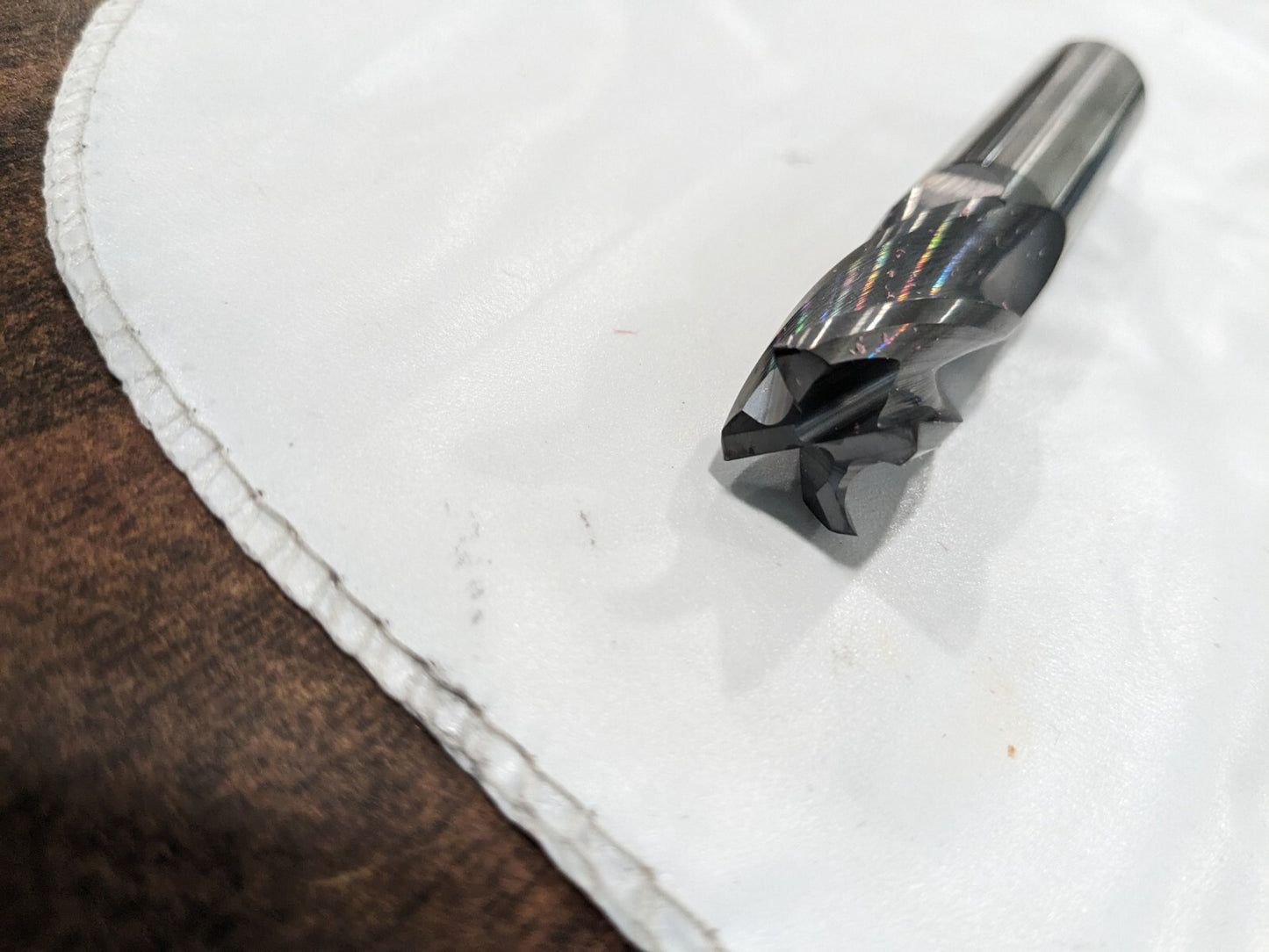

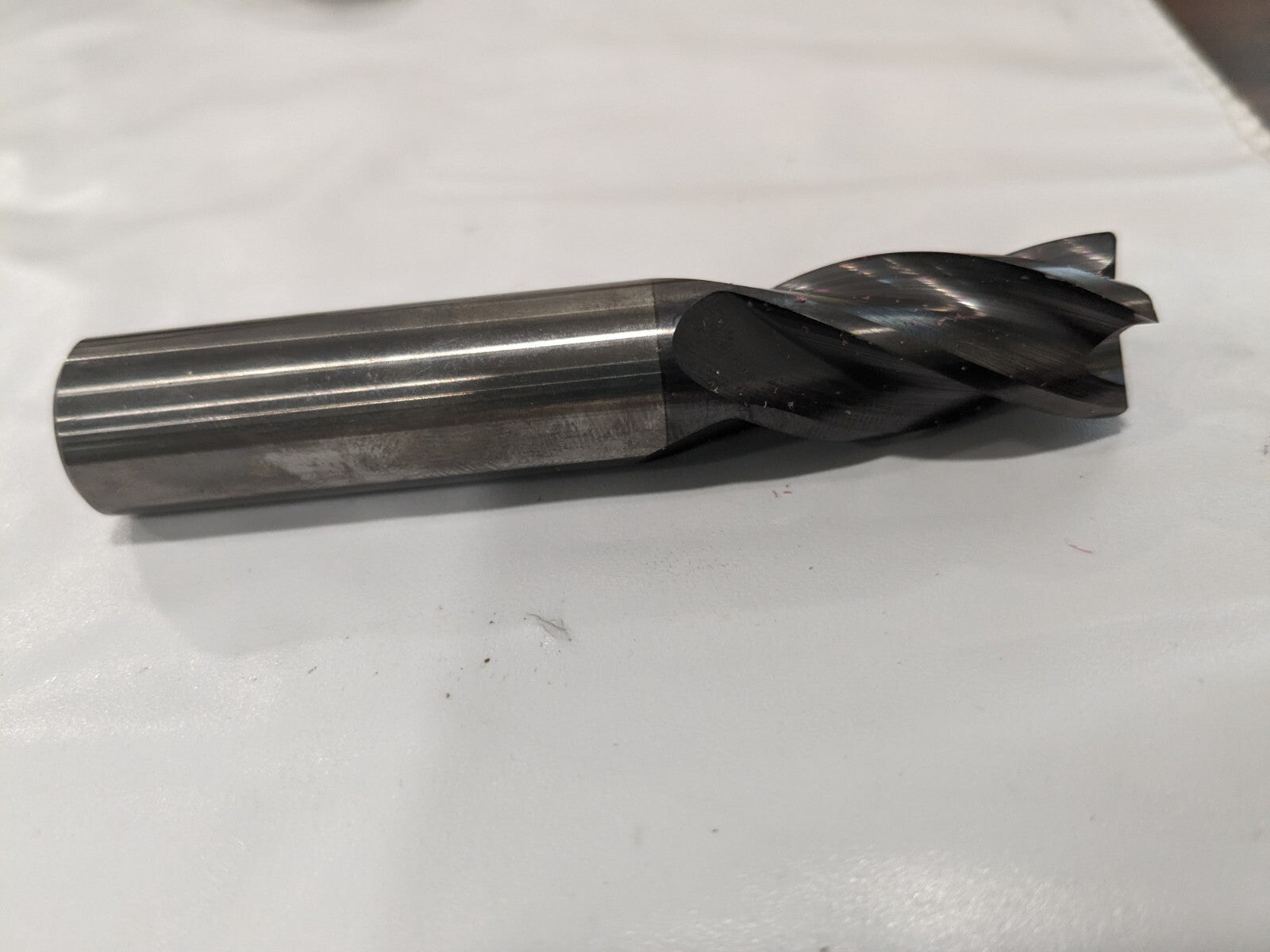

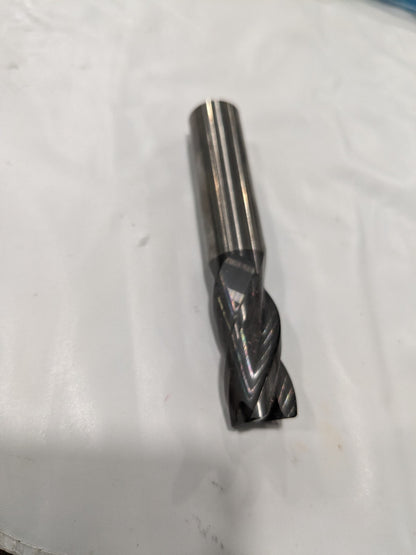

Please review photos, comes as shown.
