ACCUPRO Corner Radius End Mill: 1/2″ Dia 5 Fl Solid Carbide 6502980

ACCUPRO

Corner Radius End Mill: 1/2″ Dia 5 Fl Solid Carbide 6502980
MSRP: $108

• Mill Diameter (Inch) 1/2
• Corner Radius (Decimal Inch) 0.1200
• Coating/Finish AlTiCrN
• End Mill Material Solid Carbide
• Number Of Flutes 5
• Single Or Double End Single
• Overall Length (Inch) 6
• Length of Cut (Inch) 5/8
• Cutting Direction Right Hand
• Mill Diameter (Decimal Inch) 0.5000
• Flute Direction Right Hand
• Helix Angle 38
• Overall Length (Decimal Inch) 6.0000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.6250
• Flute Type Spiral
• Extended Reach Yes
• Centercutting Yes
• Variable Index Yes
• Variable Helix No
• Shank Diameter (Inch) 1/2
• Neck Diameter (mm) 0.47
• Neck Diameter (Decimal Inch) 0.4750
• Reach Length (Inch) 3-3/8
• Mill Diameter Tolerance +0.000000 to -0.001000 in
• Material Grade Micrograin
• Series HS

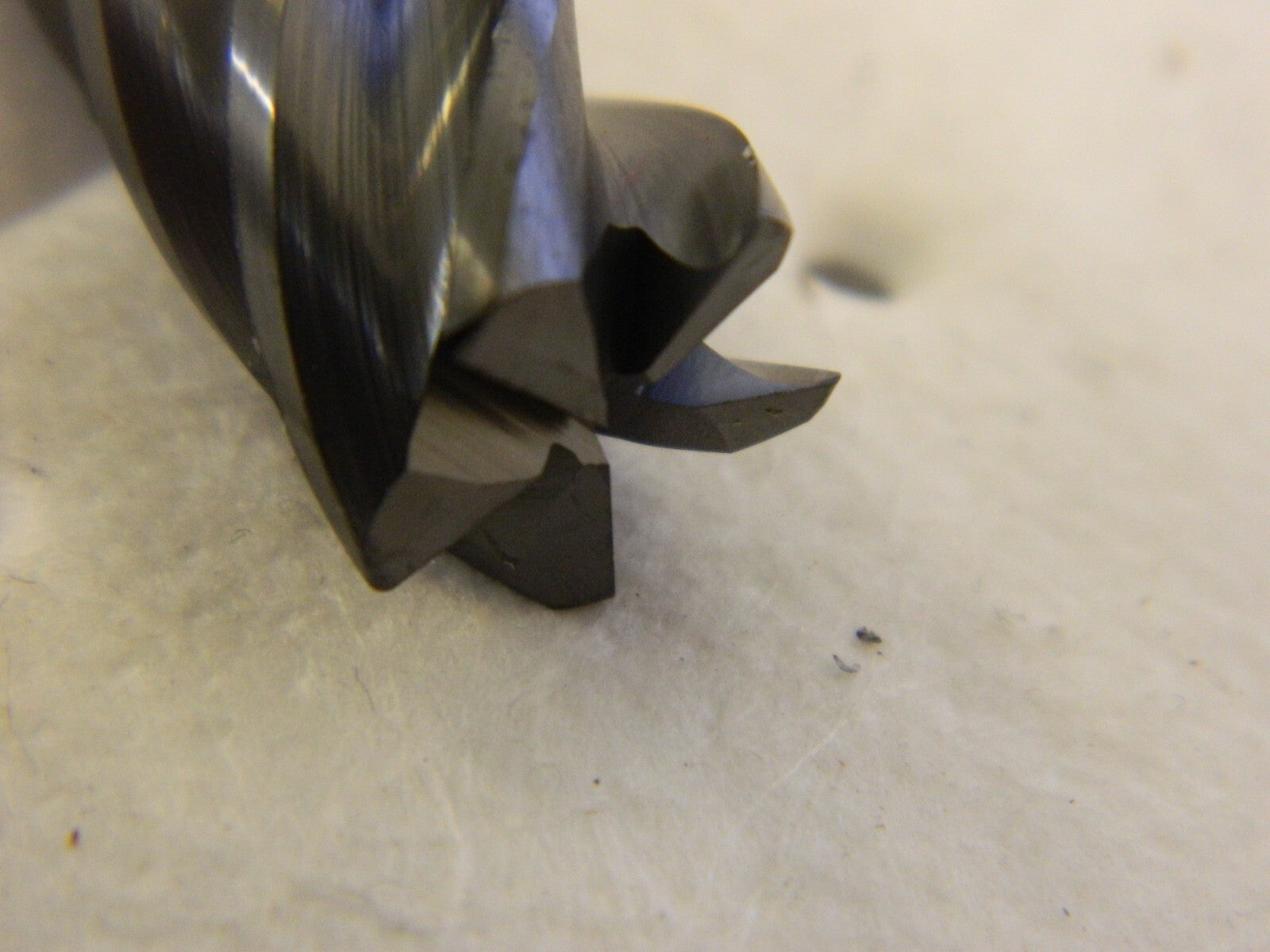

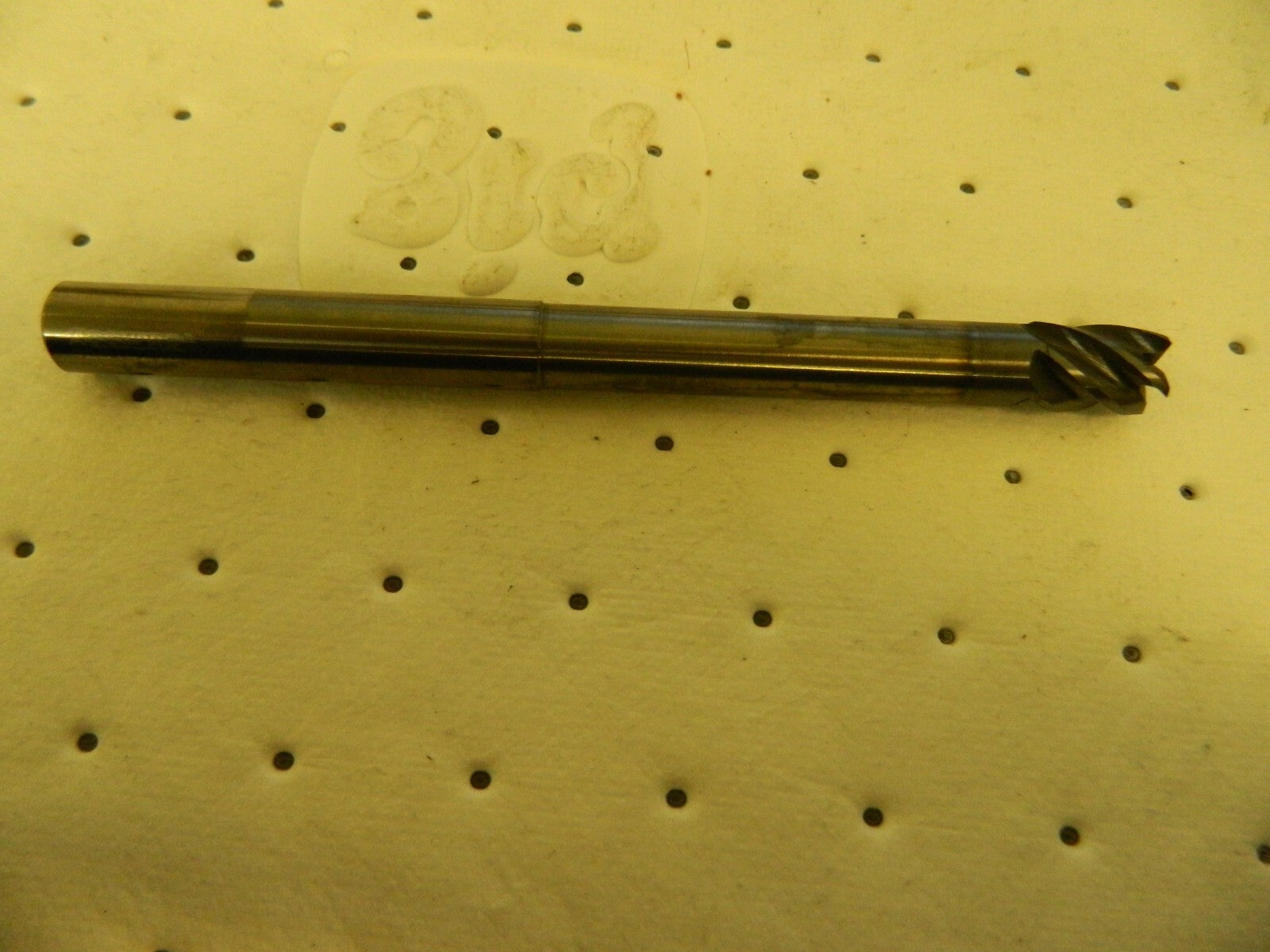

Please review photos, comes as shown.
