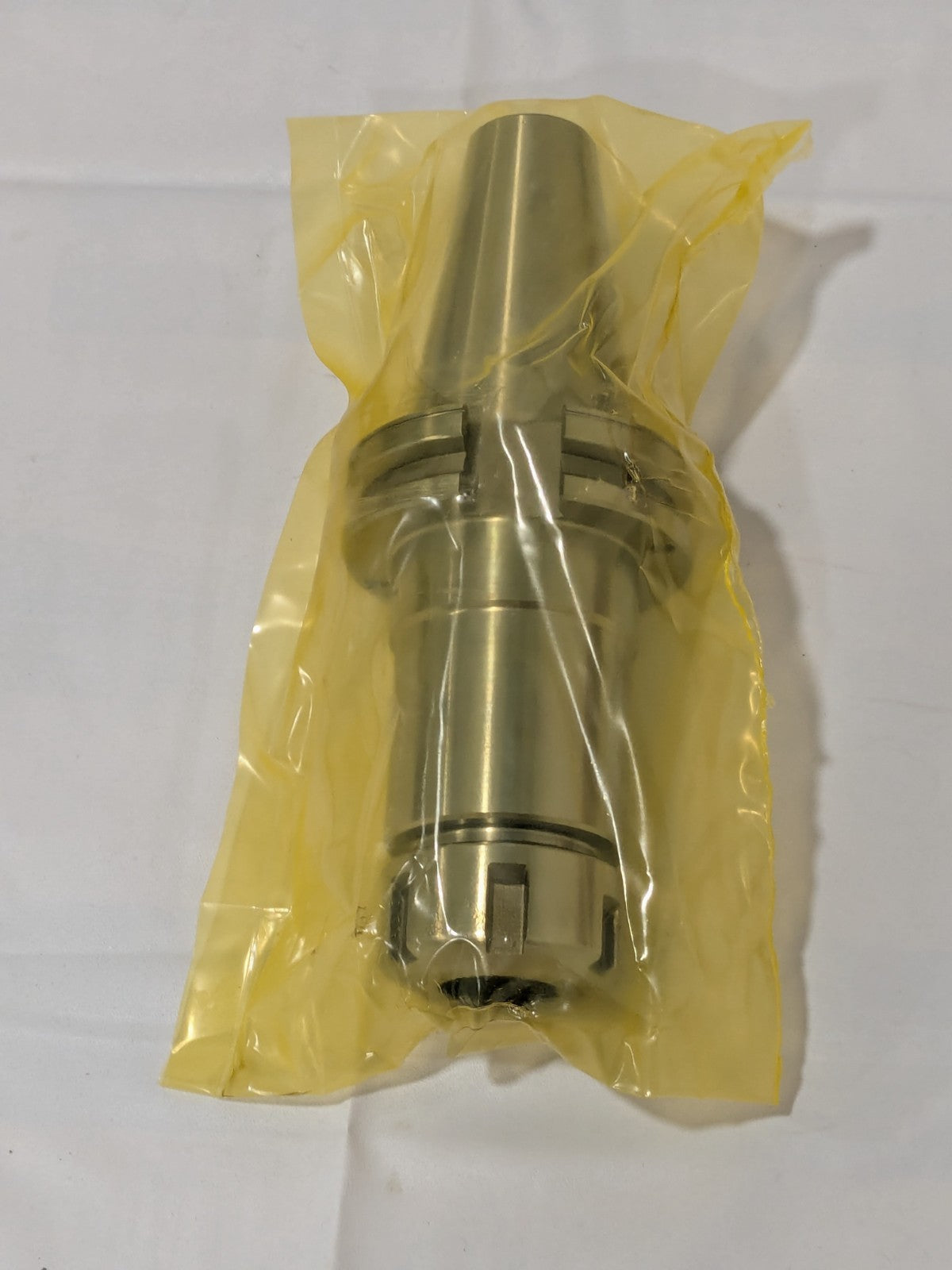

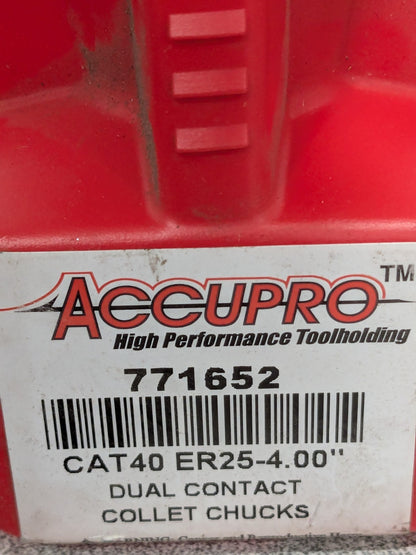

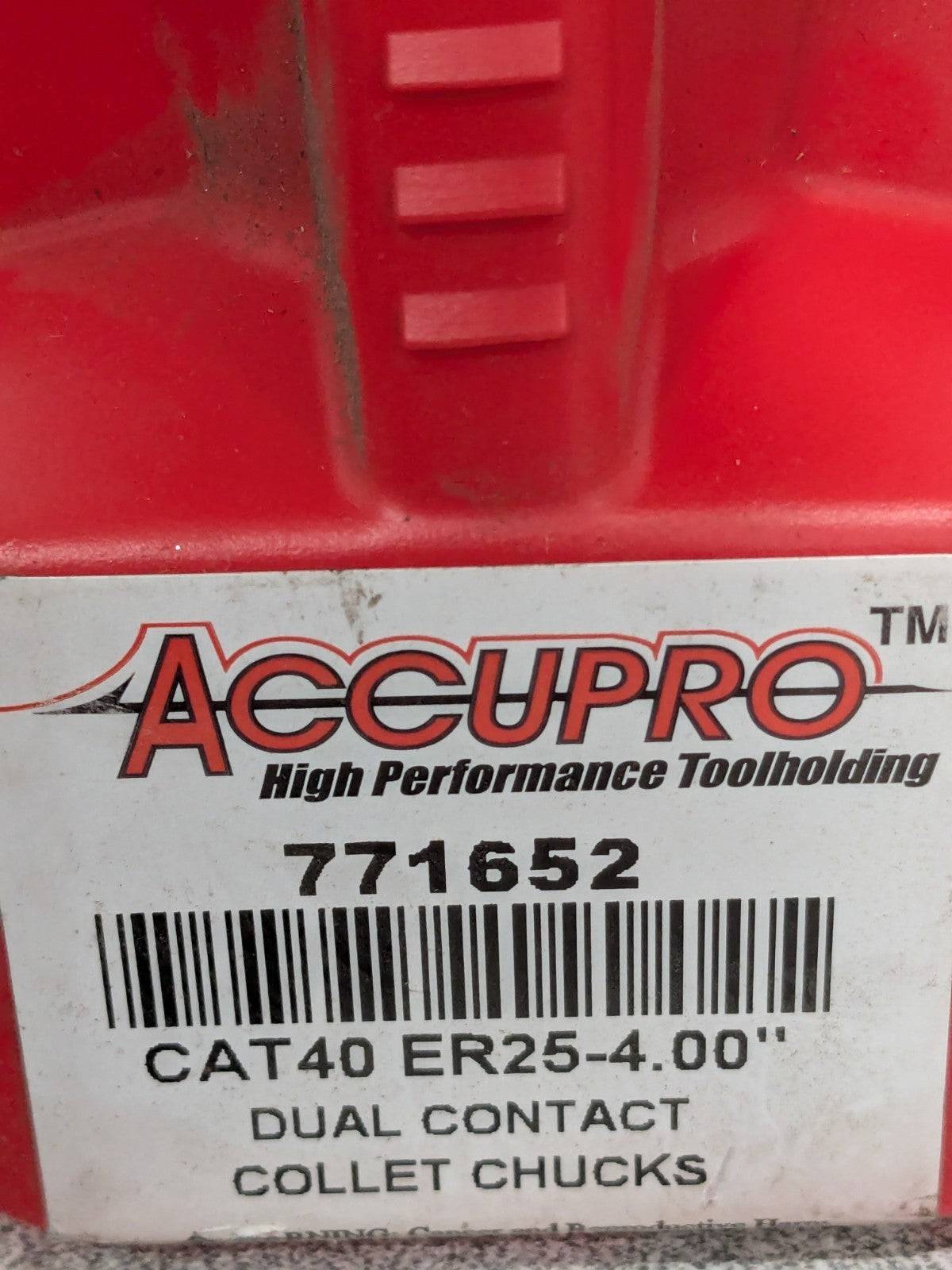

ACCUPRO Collet Chuck: 0.0390 to 0.6290" Capacity, ER25 Collet 771652

Accupro
Collet Chuck

MSRP: $200.00

• Collet System: ER
• Collet Series: ER25
• Shank Type: Dual Contact Taper
• Taper Size: CAT40
• Projection (Decimal Inch): 4.0000 in
• Projection (Inch): 4
• Through Coolant: Yes
• Minimum Collet Capacity (Decimal Inch): 0.0390
• Minimum Collet Capacity (Inch): 25/64
• Maximum Collet Capacity (mm): 15.97
• Maximum Collet Capacity (Decimal Inch): 0.6290
• Overall Length (Inch): 6-11/16
• Nose Diameter (Decimal Inch - 4 Decimals): 1.6500
• Shank Length (Inch): 2-11/16
• TIR (mm): 0.0070
• TIR (Decimal Inch): 0.0003
• Coolant Type: Through-Spindle & DIN Flange
• Collet Nut Diameter (Decimal Inch): 1.6500
• Type: ER Collet
• Hex Diameter (Decimal Inch): 1.6500
• UNSPSC Code: 27112808
• Product Service Code: 5136
• Balanced To Rpm: 30000
• Country of Origin: Taiwan
• Ordered as Part #: 771652

This item appears to be new and in good condition. SOLD AS IS.

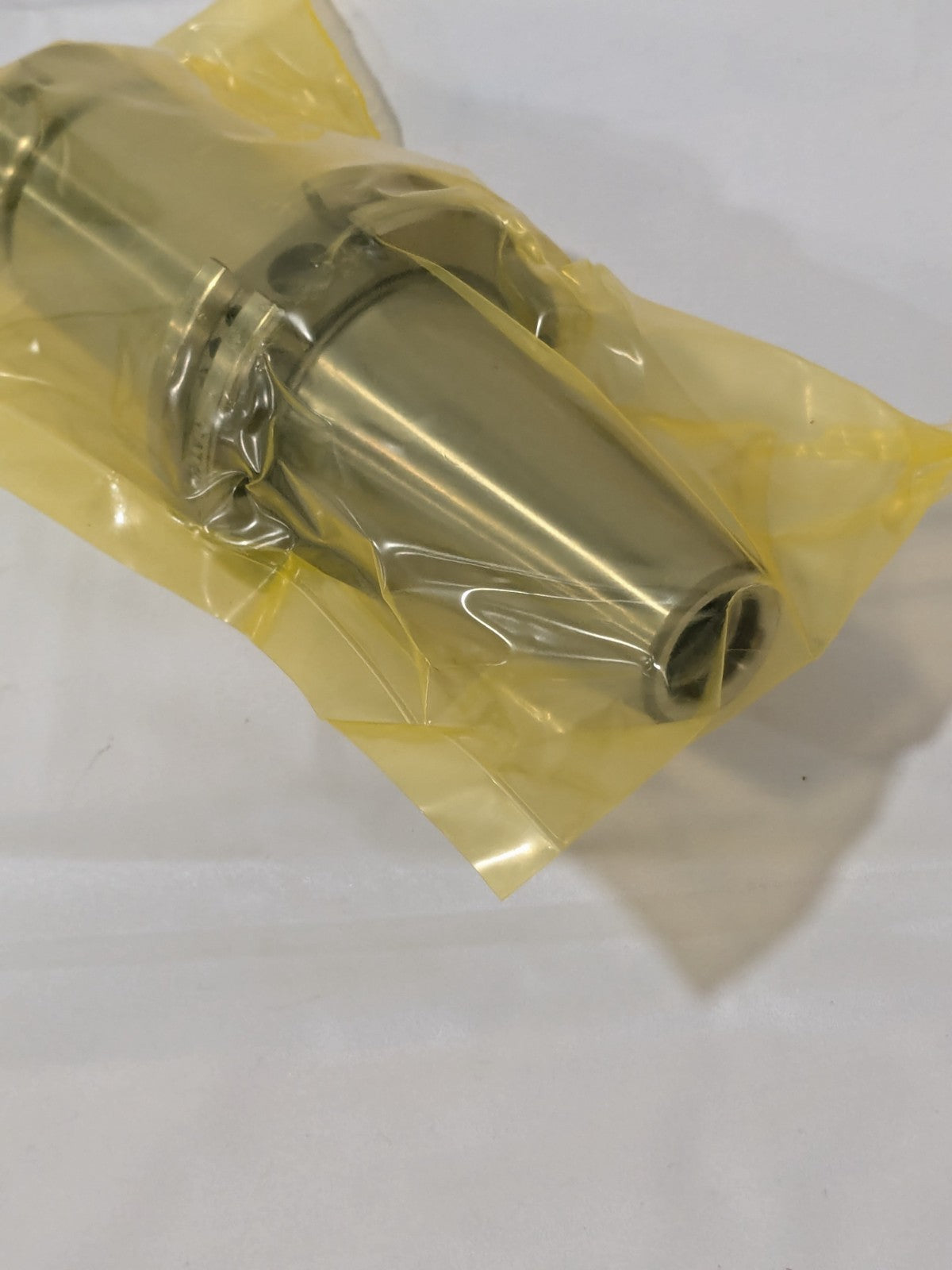

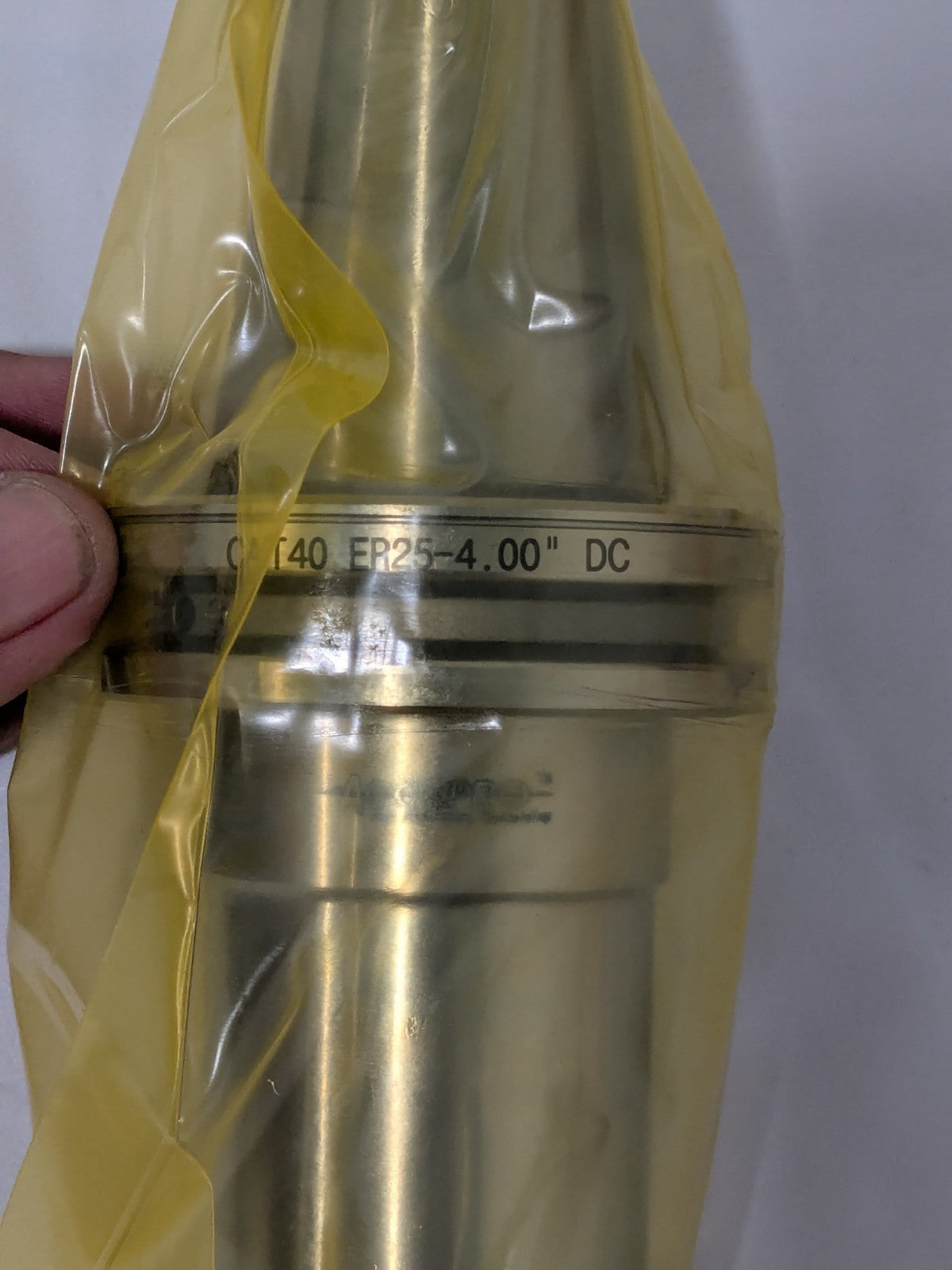

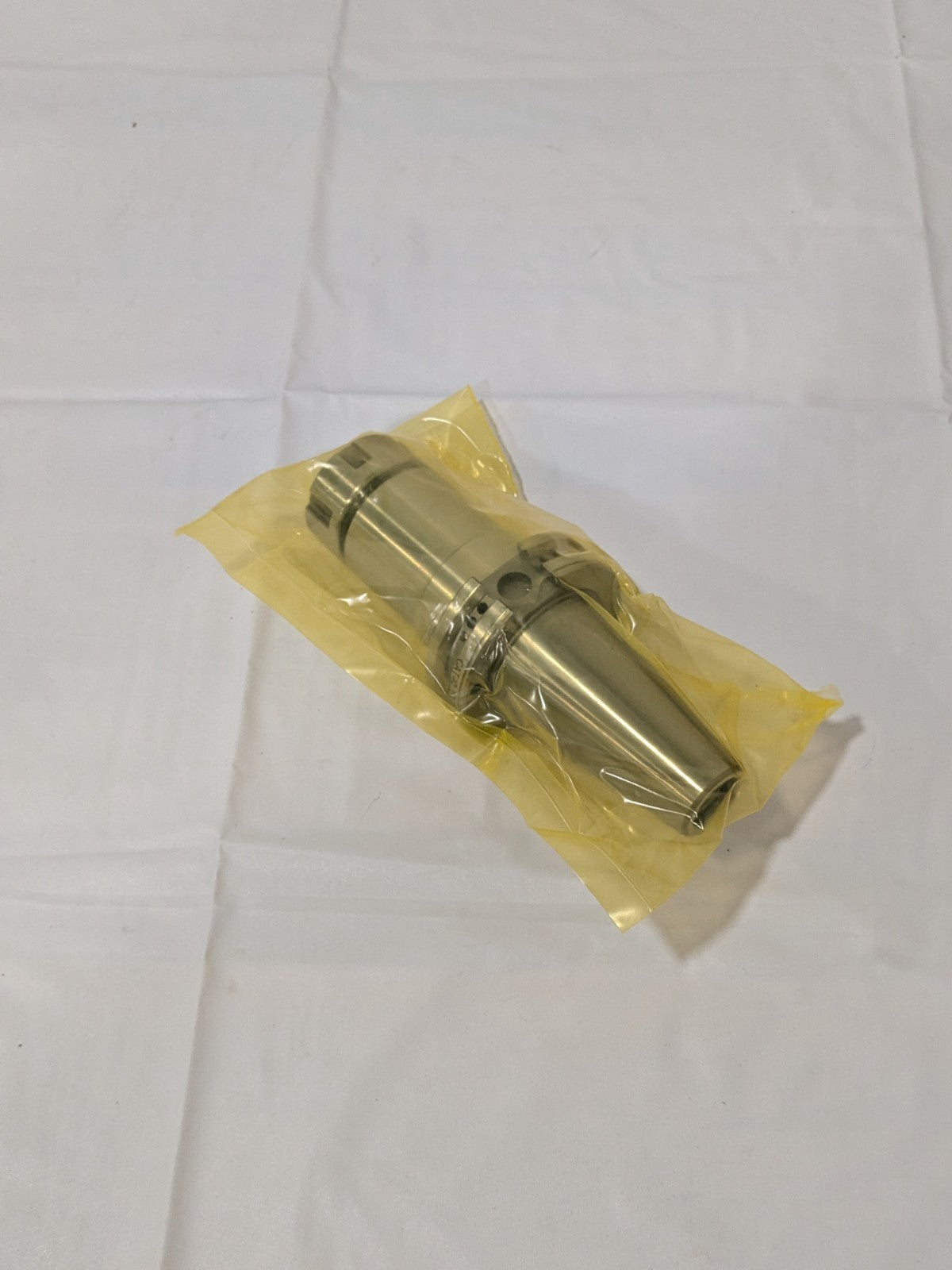

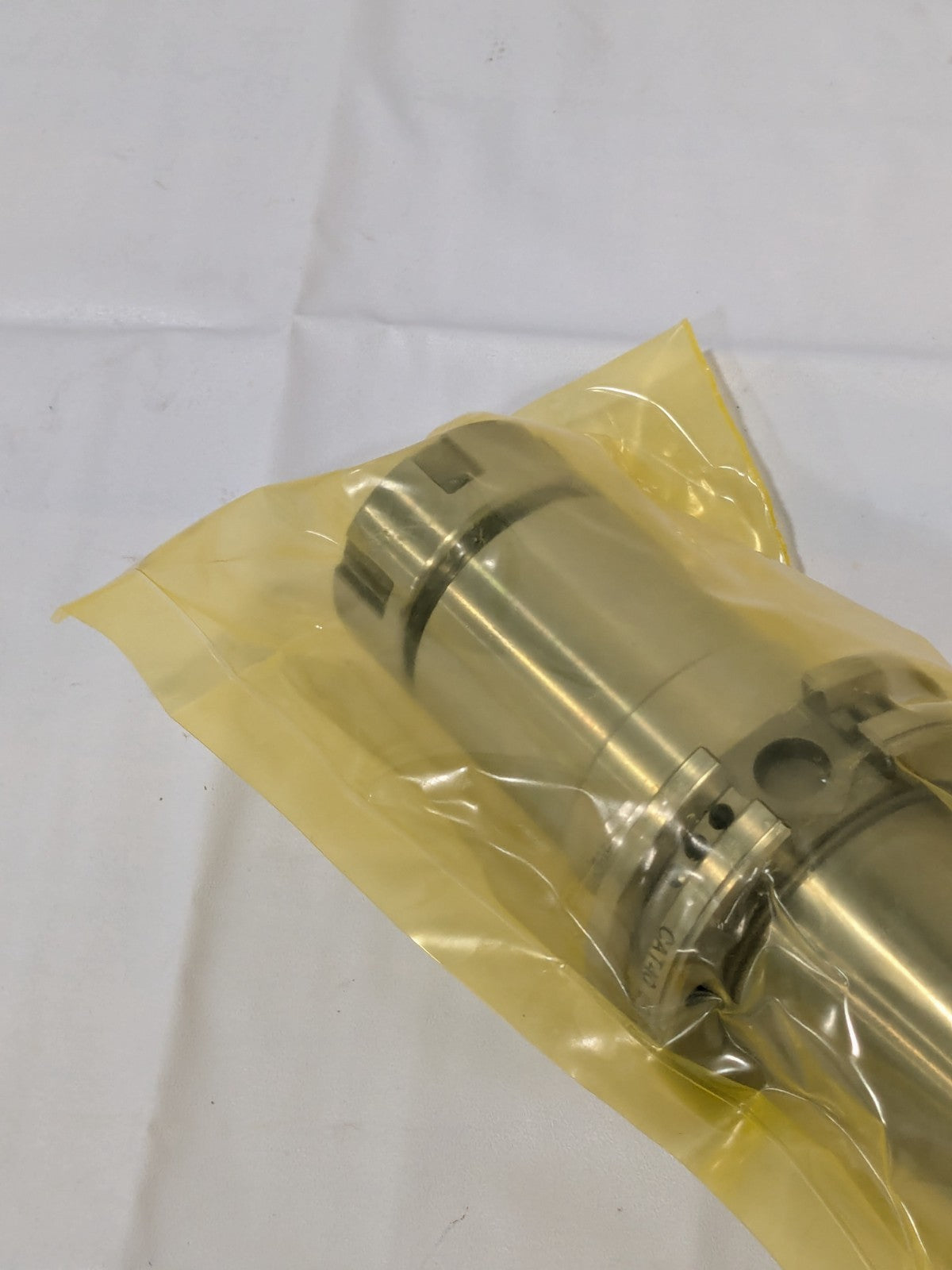

Please review photos, comes as shown.
