Accupro Carbide Turning Inserts QTY10 CNMG322IPK+ ACM25P 75264606

Accupro
Carbide Turning Inserts 1 pack of 10
MSRP: $125

• nsert Style CNMG
• ANSI Size Code 322
• ISO Size Code 090308
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.3752
• Inscribed Circle (mm) 9.53
• Corner Radius (mm) 0.80
• Corner Radius (Decimal Inch) 0.0315
• Insert Material Carbide
• Manufacturer Grade ACM25P
• Coating/Finish PVD
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1252
• Insert Thickness 3.18
• Insert Hand Neutral
• Series CI
• Grade Characteristics Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.1512
• Maximum Depth of Cut (mm) 4.20
• Maximum Depth of Cut (Decimal Inch) 0.1654
• ANSI Insert Code CNMG322
• ISO Insert Code CNMG090308
• Insert Holding Method Pin; Screw; Clamp; Lever Lock
• Clearance Code N
• Tolerance Code M
• Primary Workpiece Material Code P; S; M
• Iso Code CNMG090308
• Standards ANSI Code: CNMG322
• Chip Breaker IPK+
• UNSPSC Code 23242105
• Insert Size Code 09

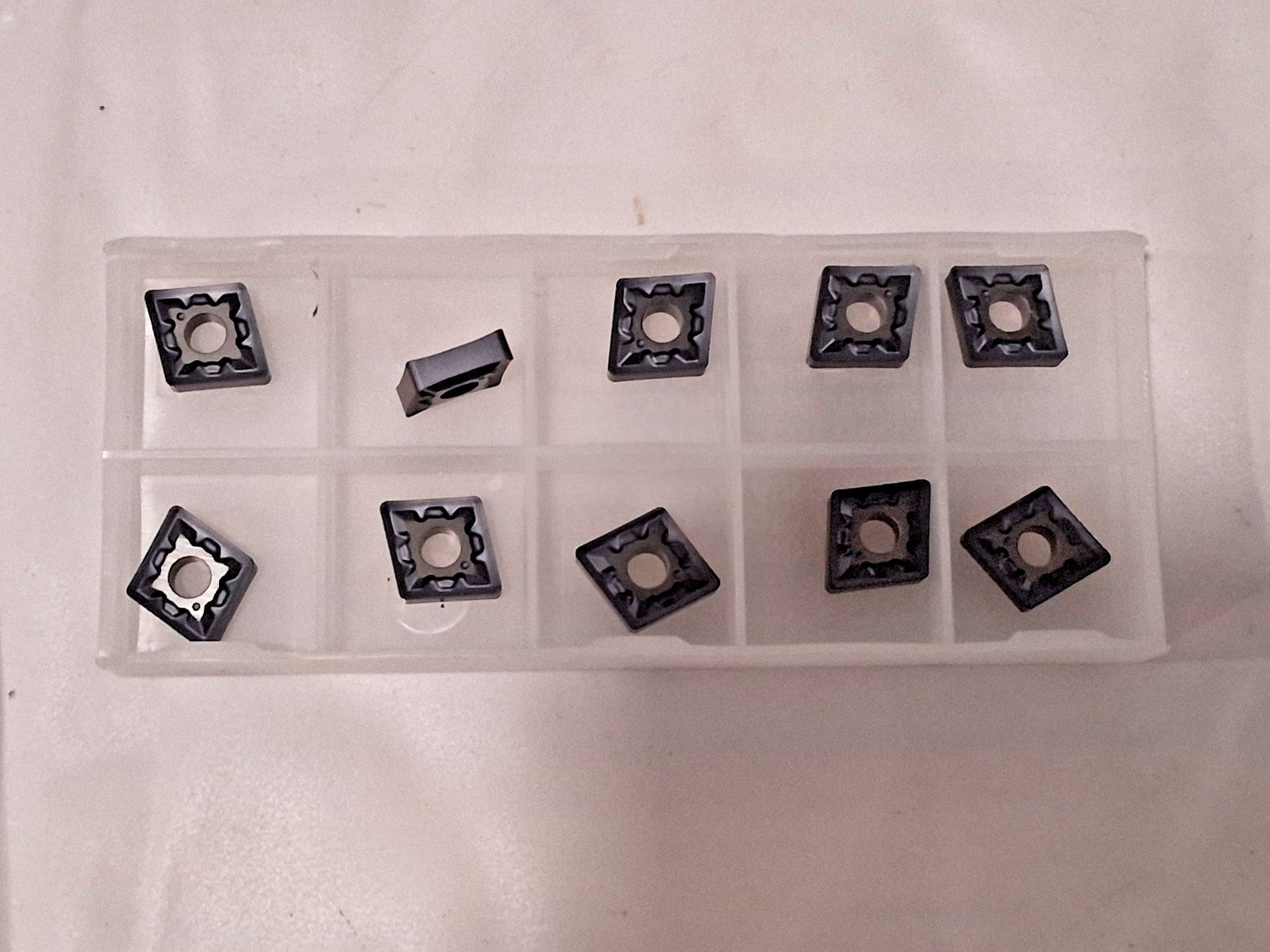

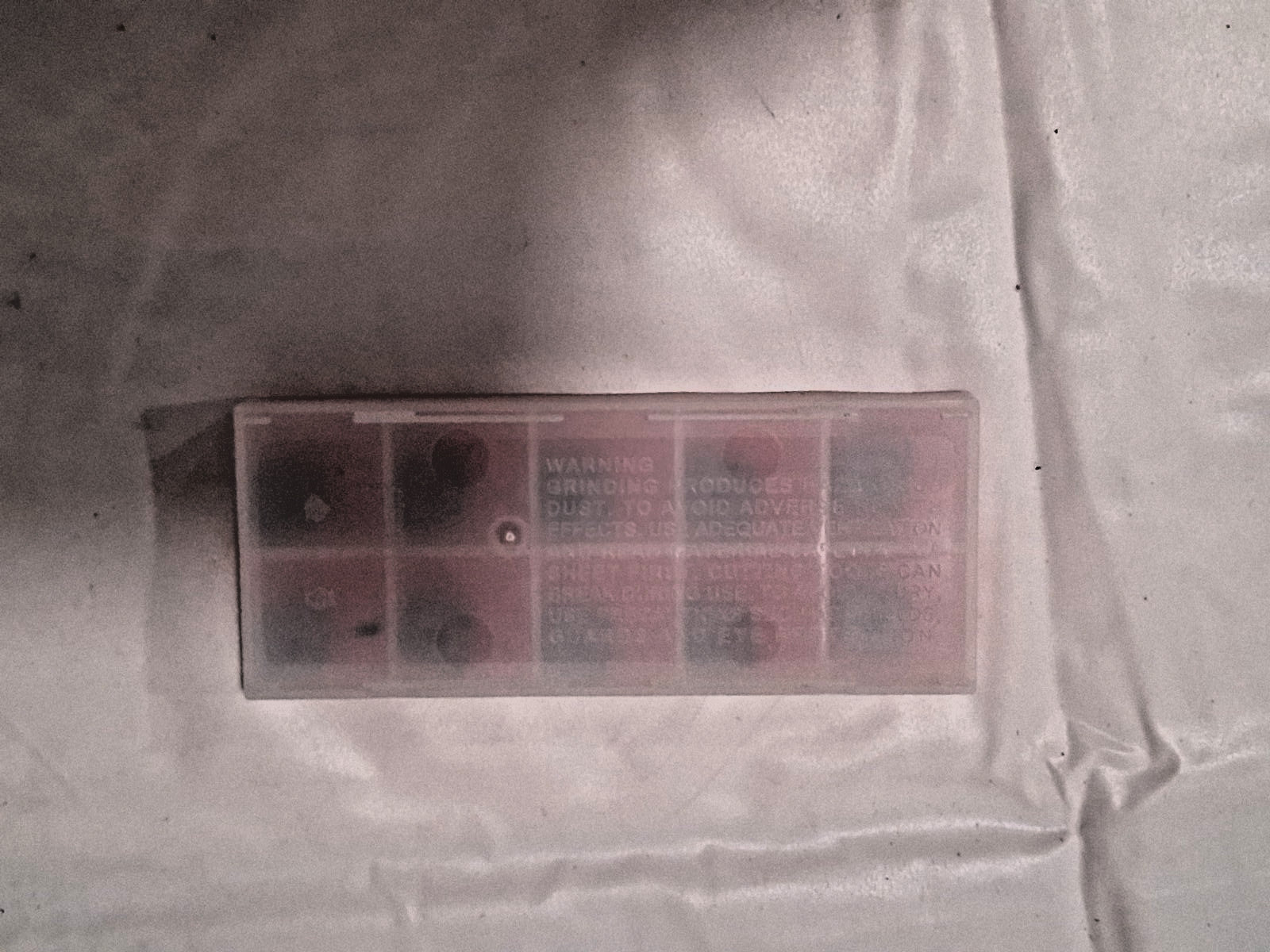

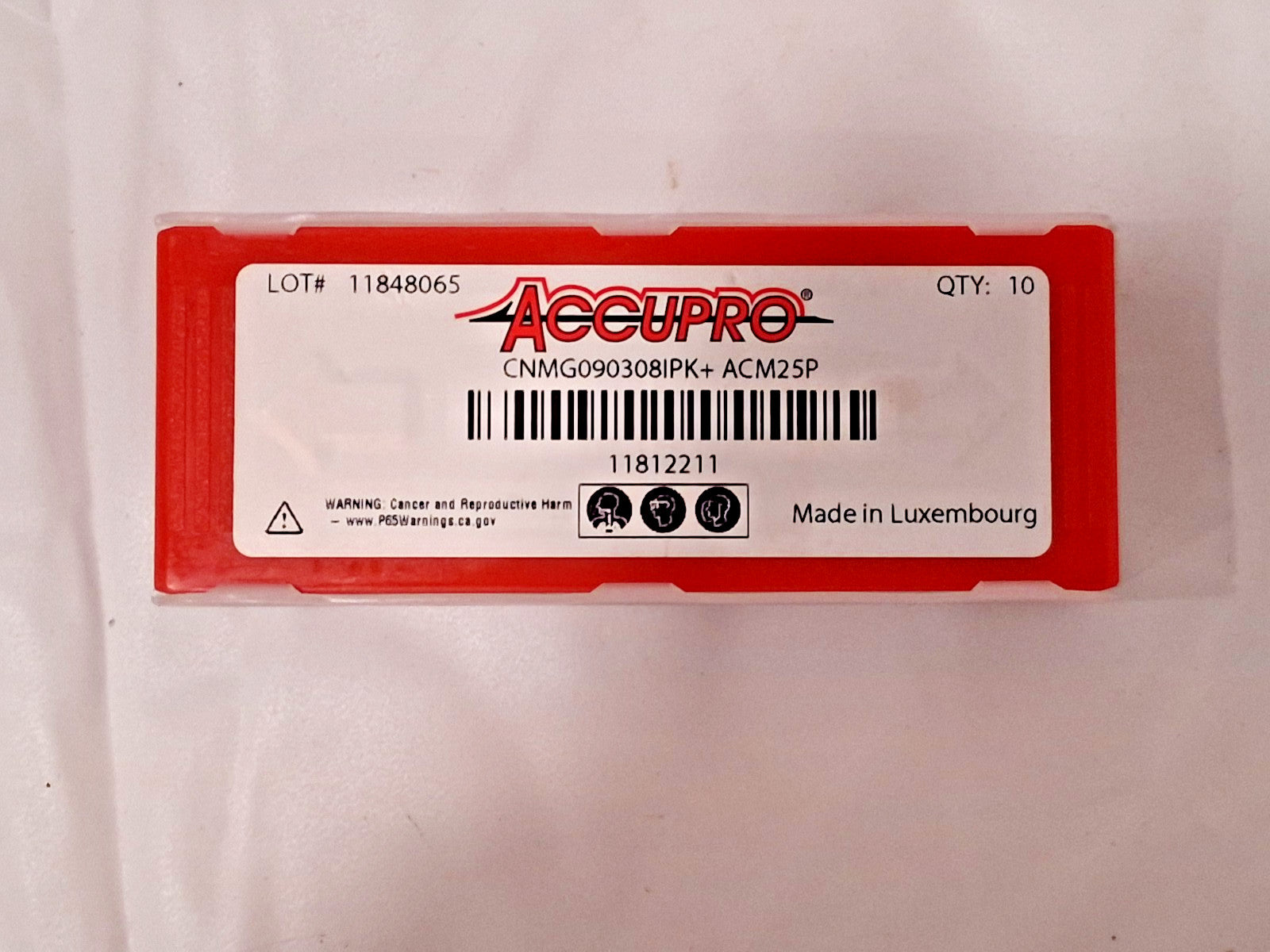

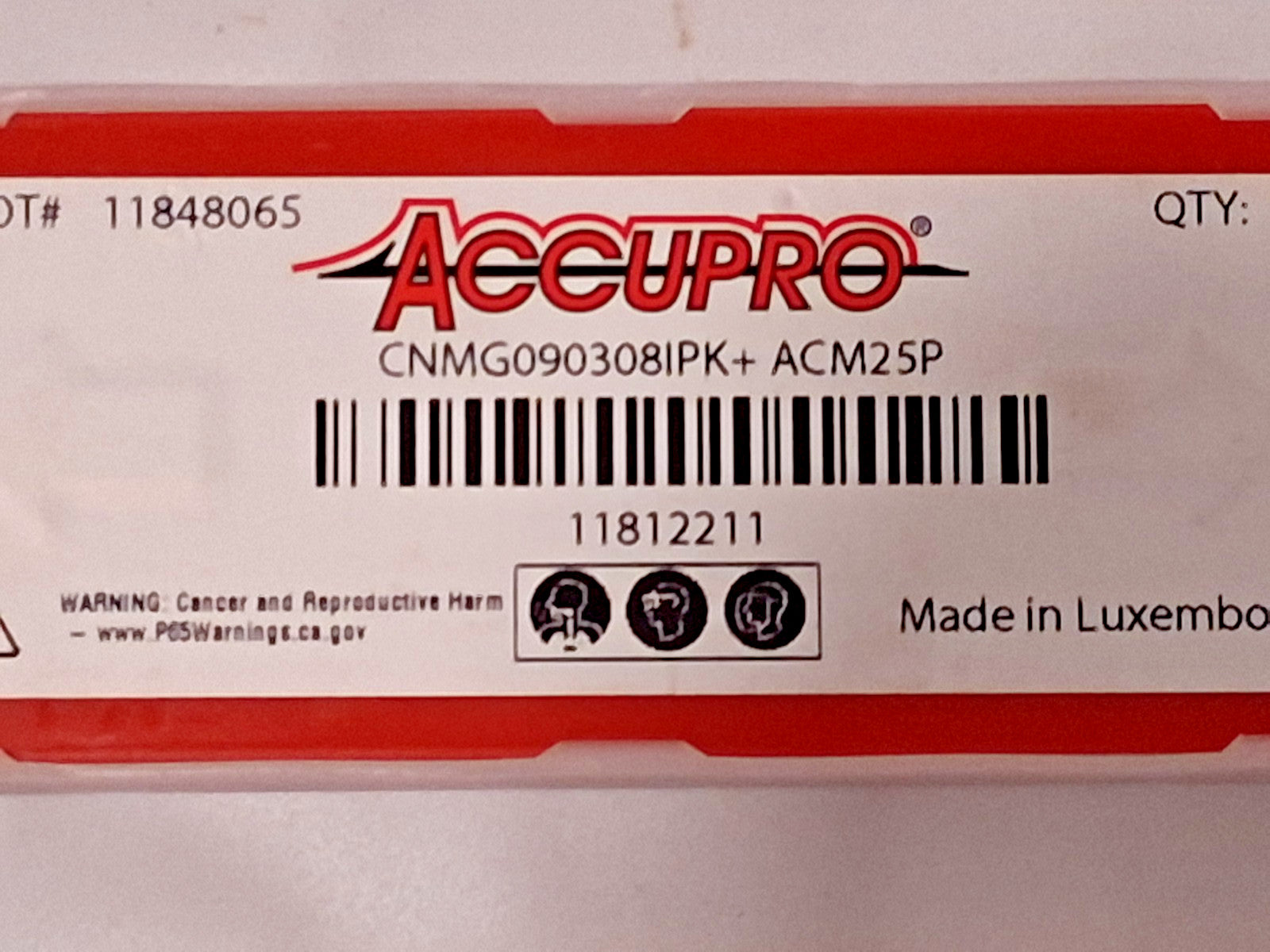

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
