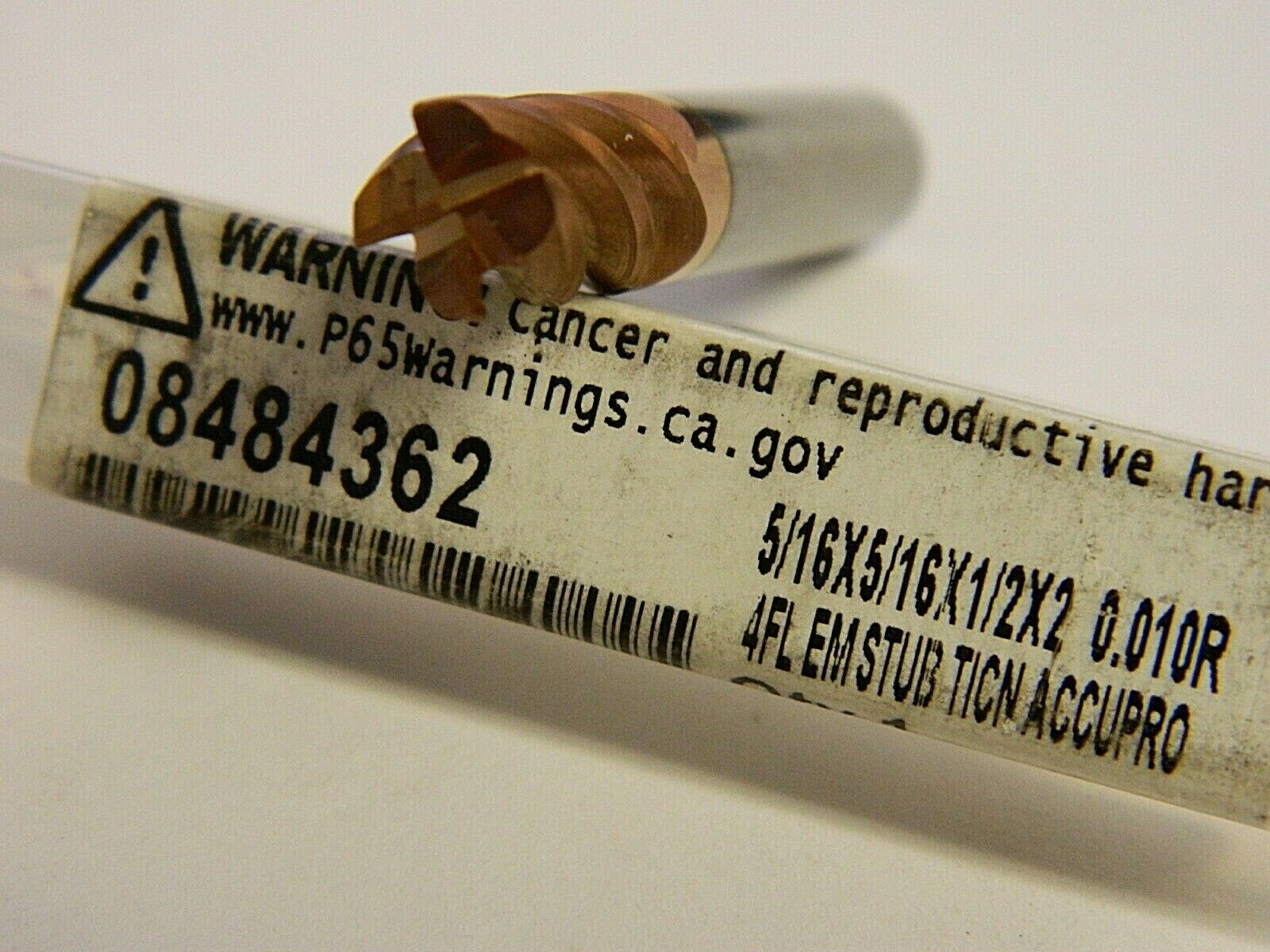

Accupro 5/16" Diam 4 Fl Single End SC 0.01" Corner Radius End Mill 08484362
Accupro 5/16" Diam 4 Fl Single End SC 0.01" Corner Radius End Mill 08484362
Regular price
$24.48 USD
Regular price
$50.00 USD
Sale price
$24.48 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $50.00
Model:
Description:
Mill Diameter (Inch) 5/16
Mill Diameter (Decimal Inch) 0.3125
End Type Corner Radius
Corner Radius (Decimal Inch) 0.0100
Number of Flutes 4
Material Solid Carbide
Finish/Coating TiCN
Length of Cut (Inch) 1/2
Length of Cut (Decimal Inch) 0.5000
Shank Diameter (Inch) 5/16
Overall Length (Inch) 2
Flute Type Spiral
Cutting Direction Right Hand
Helix Angle 40.00
Variable Index No
Material Grade Micrograin
Single or Double End Single
Length Type Stub
Centercutting Yes
Flute Direction Right Hand
Mill Diameter Tolerance (Decimal Inch) +0.000/-0.0025
Corner Radius Tolerance (Decimal Inch) +/-0.0015
Shank Diameter Tolerance (Decimal Inch) -0.0001/-0.0004
Extended Reach No
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
