ACCUPRO 3/4″ Diam 4 Flute Carbide 0.06″ Corner Radius End Mill 6504424
ACCUPRO 3/4″ Diam 4 Flute Carbide 0.06″ Corner Radius End Mill 6504424
Regular price
$84.91 USD
Regular price
$180.00 USD
Sale price
$84.91 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ACCUPRO
3/4″ Diam 4 Flute Carbide 0.06″ Corner Radius End Mill 6504424
MSRP: $180
- Mill Diameter (mm) 19.05
- Mill Diameter (Inch) 3/4
- Mill Diameter (Decimal Inch) 0.7500
- End Type Corner Radius
- Corner Radius (Decimal Inch) 0.06
- Number of Flutes 4
- Material Carbide
- Finish/Coating AlCrTiN
- Length of Cut (mm) 38.1000
- Length of Cut (Inch) 1-1/2
- Length of Cut (Decimal Inch) 1.5000
- Shank Diameter (mm) 19.0500
- Shank Diameter (Inch) 0.75
- Overall Length (mm) 101.6000
- Overall Length (Inch) 4
- Flute Type Helical
- Cutting Direction Right Hand
- Helix Angle Variable
- Variable Index Yes
- Variable Helix Yes
- Material Grade Micrograin
- Single or Double End Single
- Minimum Helix Angle 30
- Maximum Helix Angle 32
- Length Type Regular
- Centercutting Yes
- Flute Direction Right Hand
- Mill Diameter Tolerance (mm) +0.000 to -0.025
- Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.001
- Shank Diameter Tolerance (mm) h6
- Shank Diameter Tolerance (Decimal Inch) h6
- Extended Reach No
- Overall Length Tolerance (Decimal Inch) +0.040 to -0.000
- Shank Type Straight
- TIR Maximum (Decimal Inch) 0.0013
- TIR Maximum (mm) 0.18
- Series/List VS
- Chipbreaker No
This Accupro end mill is a high-quality tool designed for precision machining in metalworking. Its 3/4 inch diameter and 4 flute design make it a reliable choice for finishing and end milling tasks. The corner radius end mill is made of solid carbide material, ensuring durability and longevity. With a length of cut of 1-1/2 inches and an overall length of 4 inches, this unit is perfect for a variety of metalworking projects. The end mill is made in the United States and is ideal for use in CNC, metalworking, and manufacturing industries. Its shank diameter of 3/4 inches and brand name of Accupro make it a top choice for professionals in the field.

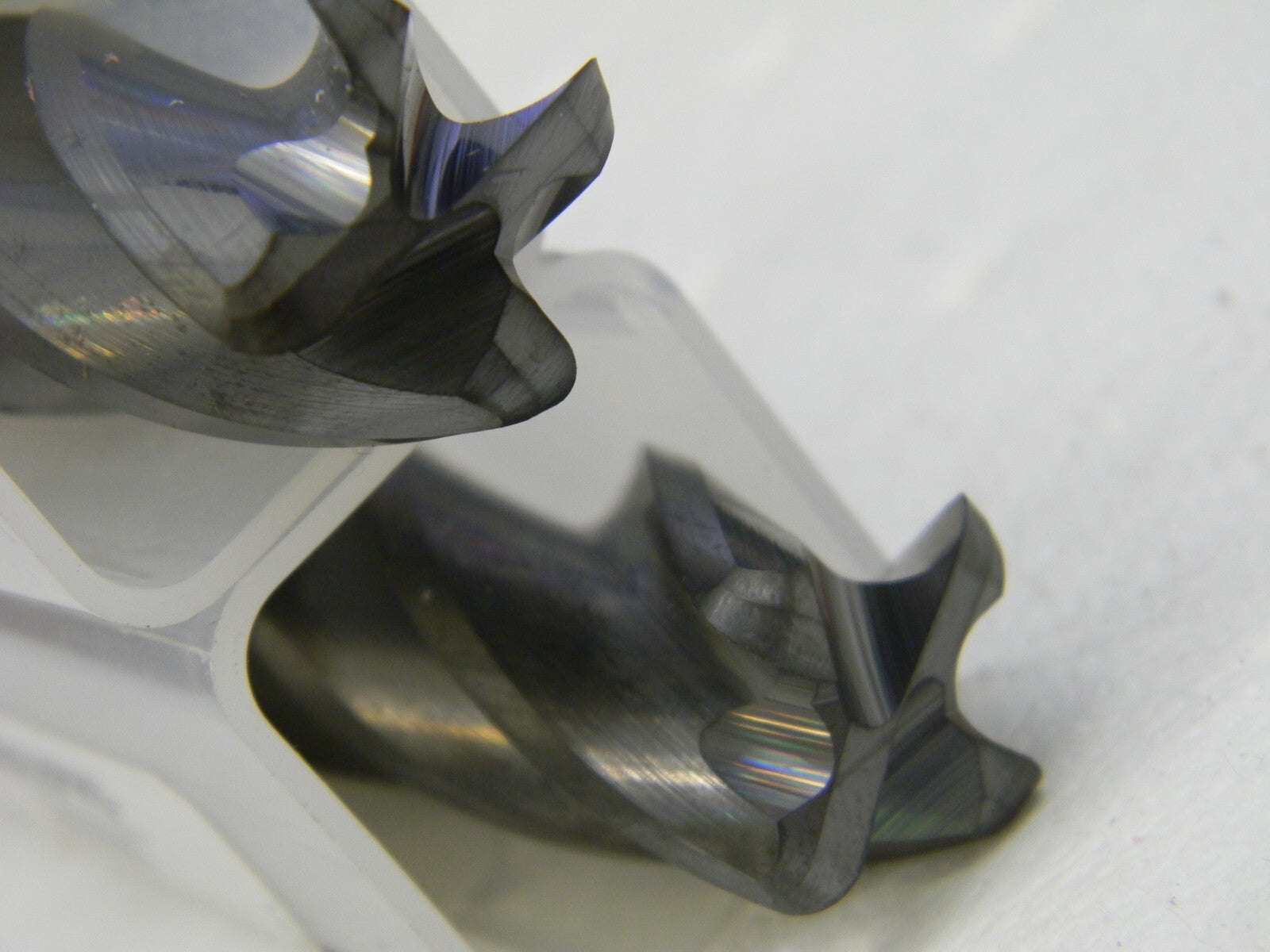

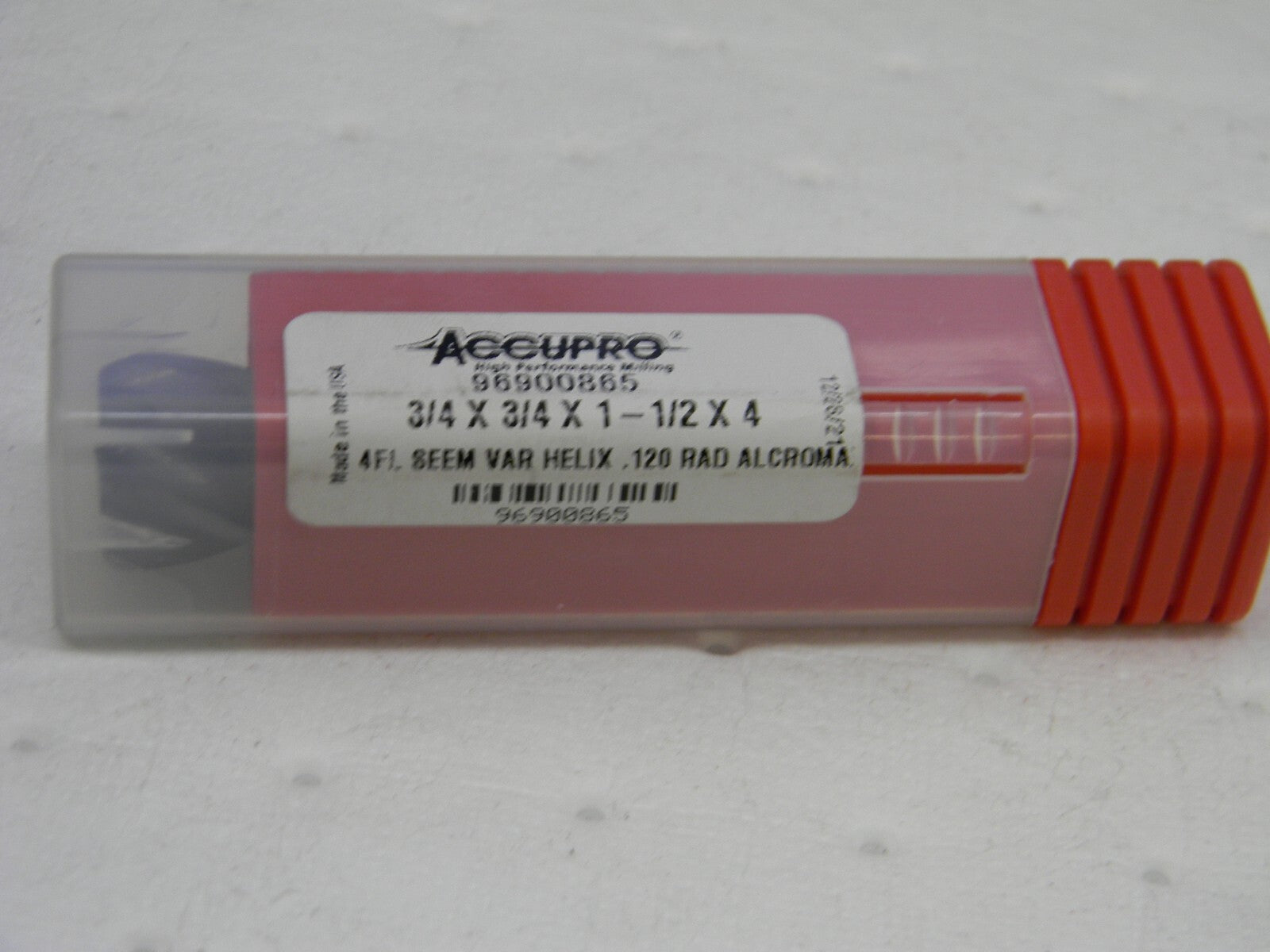

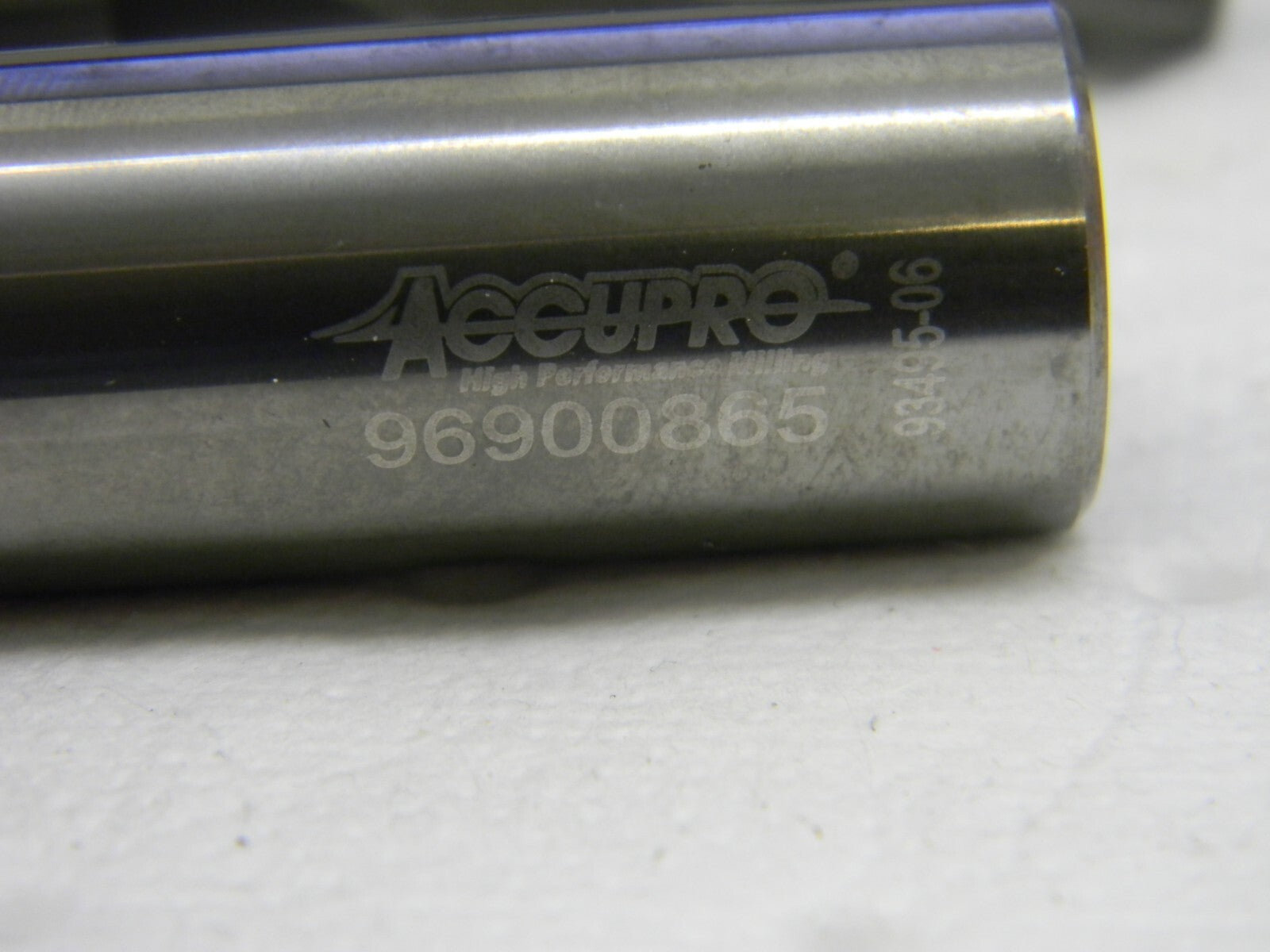

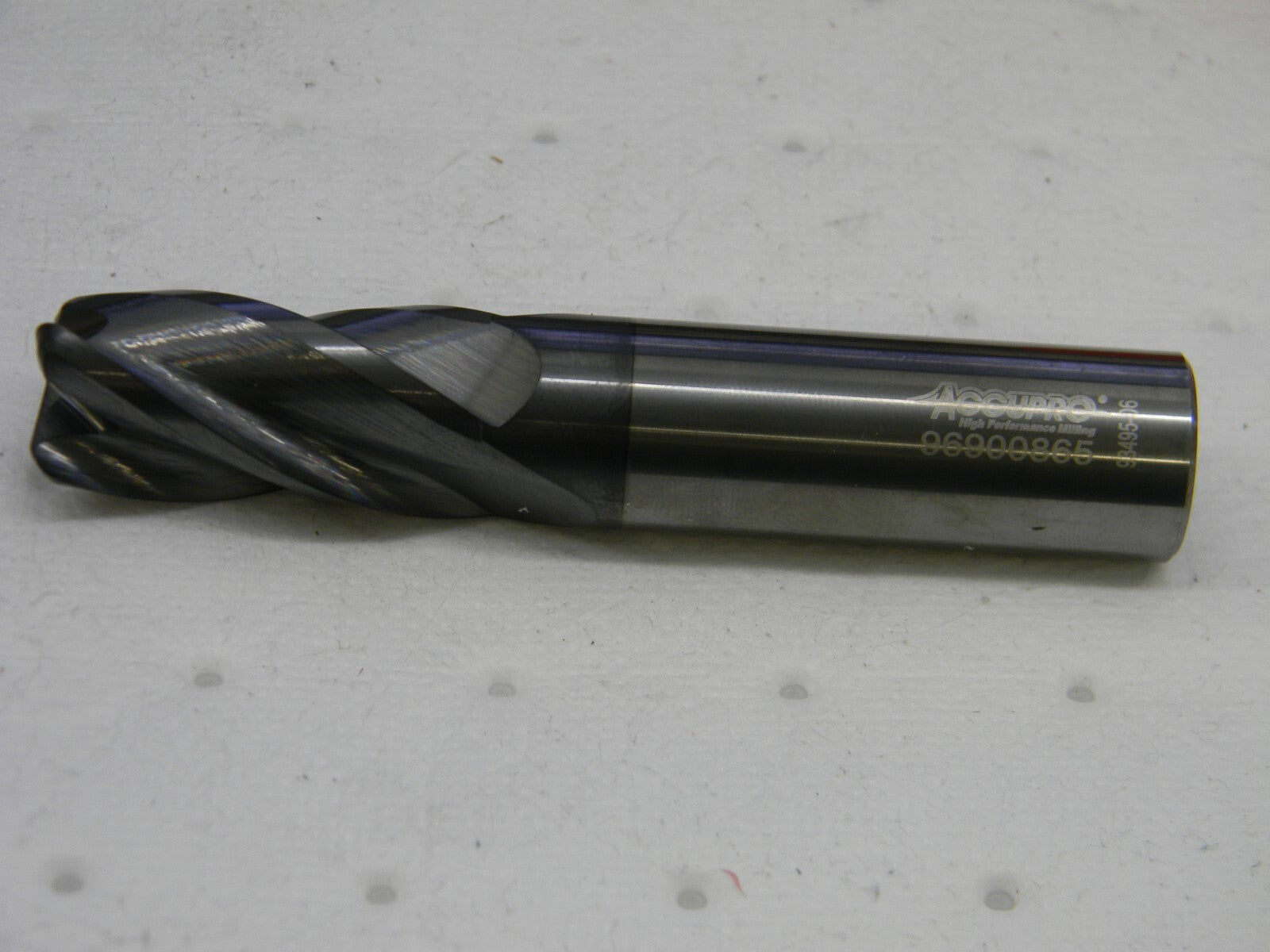

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
