ABBOTT WORKHOLDING PRODUCTS Soft Lathe Chuck Jaw Set: Serrated 2pc KTT8SSQ

ABBOTT WORKHOLDING PRODUCTS

Soft Lathe Chuck Jaw Set: Serrated 2pc KTT8SSQ
MSRP: $60

• Jaw Shape Square
• Jaw Interface Type Serrated
• Material Steel
• Maximum Compatible Chuck Diameter (mm) 8.00
• Maximum Compatible Chuck Diameter (Decimal Inch) 8.0000
• Distance Between Mount Hole Centers (Decimal Inch) 0.9843
• Distance Between Mount Hole Centers (mm) 25.00
• Fastener Size (mm) 12.00
• Fastener Size (Decimal Inch) 0.4724
• Slot Width (Decimal Inch) 0.5510
• Groove Width (mm) 14.00
• Groove Width (Decimal Inch) 0.5512
• Overall Height (Decimal Inch) 2.0000
• Overall Height (Mm - 5 Decimals) 50.80
• Overall Length (Inch) 4
• Overall Length (Decimal Inch) 4.0000
• Material Grade 1018
• Overall Width/Diameter (Decimal Inch) 1-1/2
• Overall Width/Diameter (Decimal Inch) 1.5000
• Number Of Jaws 3

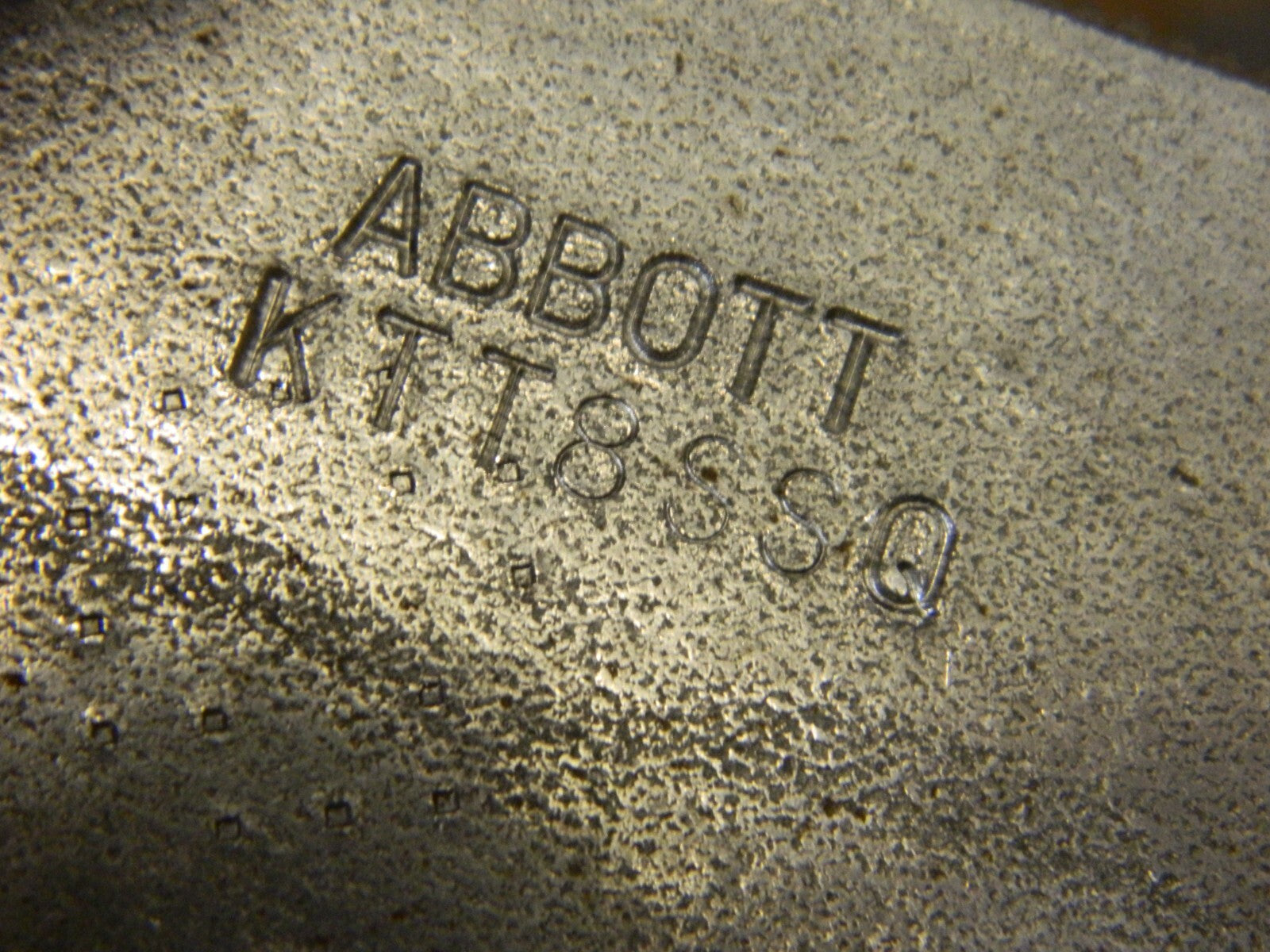

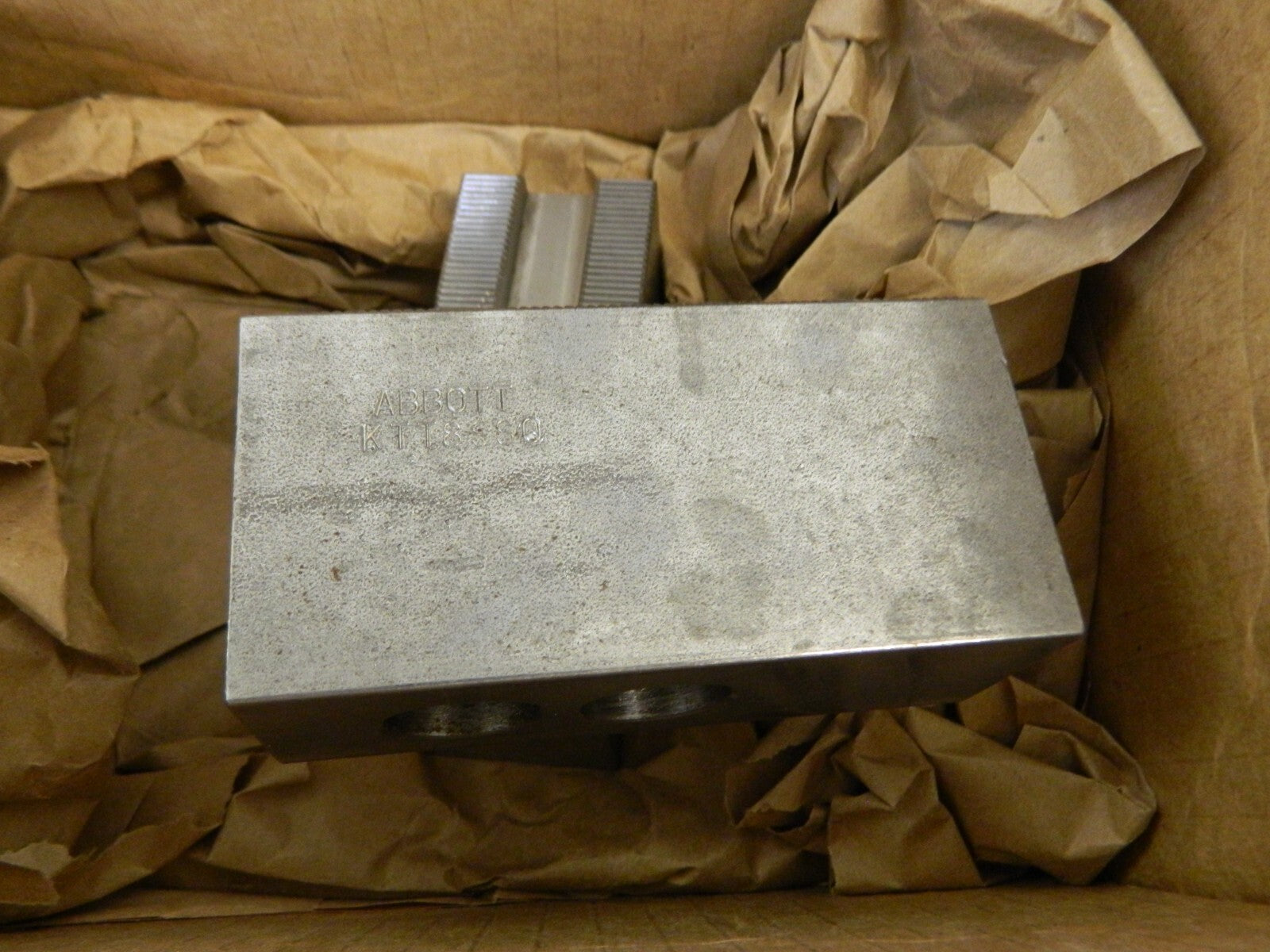

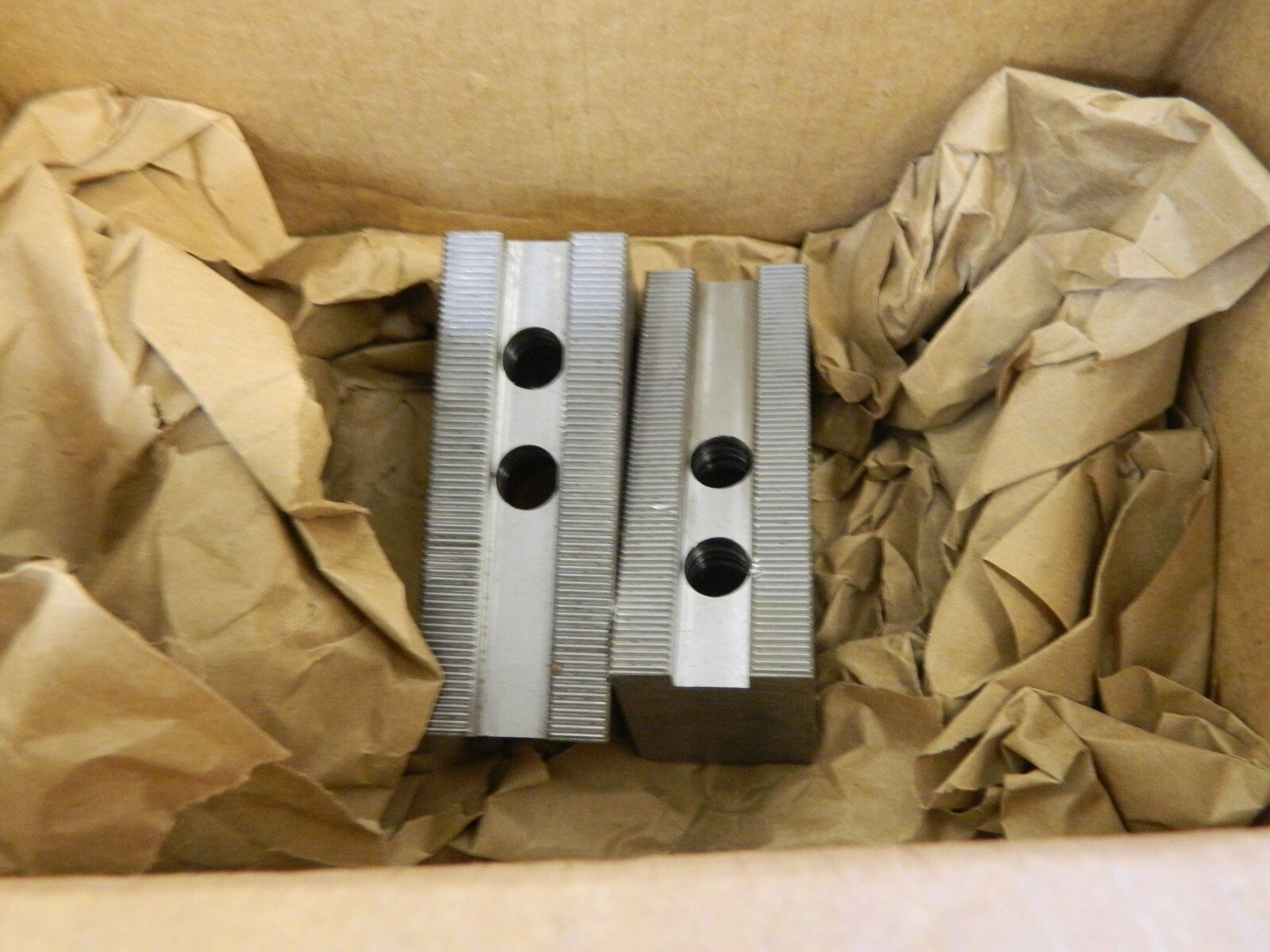

 Please review photos, comes as shown.
