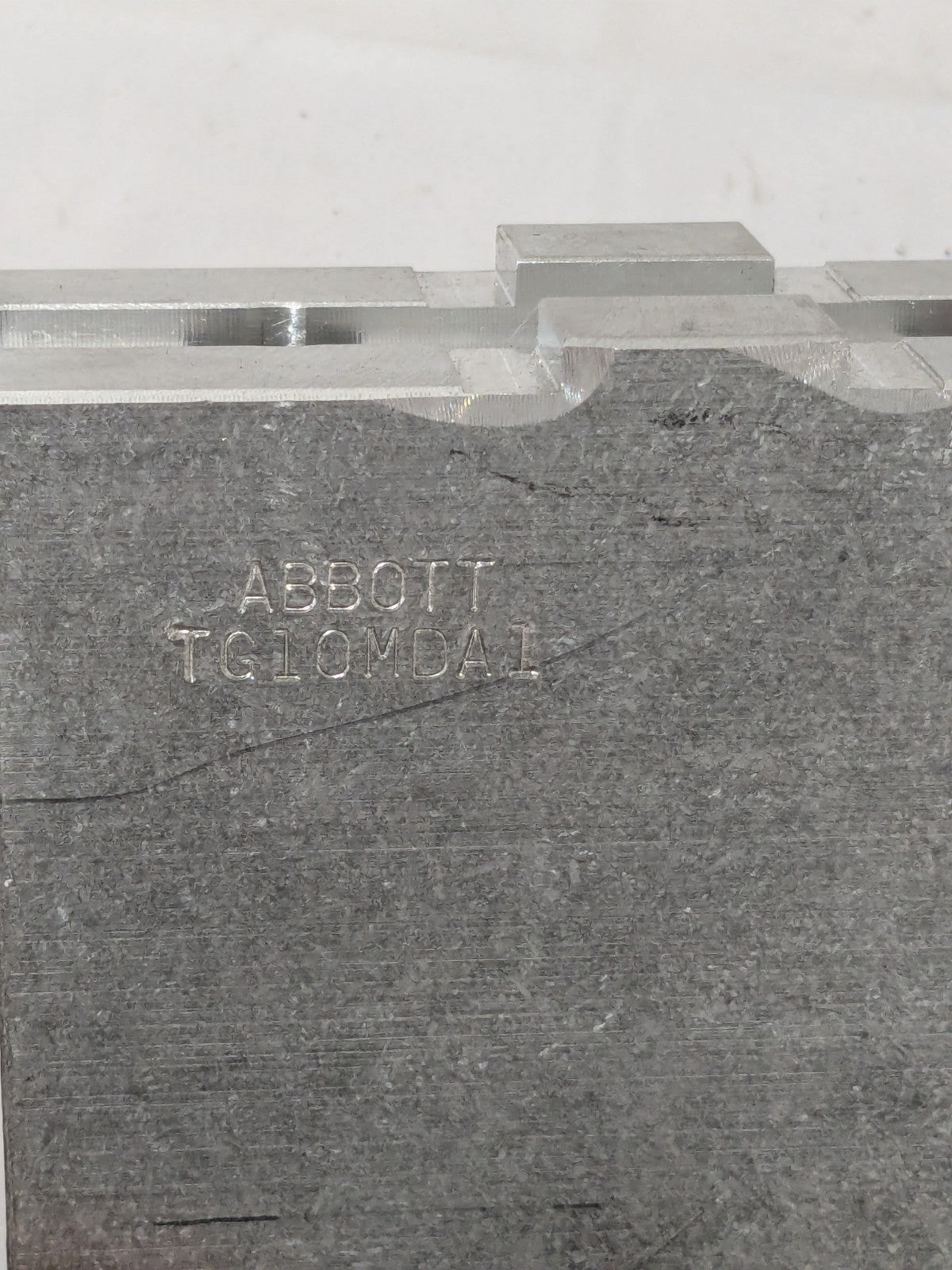

Abbott Soft Lathe Chuck Jaw: 1-1/2" OAW, 3" OAH, 4-1/2" OAL TG10MDA1

Abbott
1 Jaw

MSRP: $30.00

• Jaw Shape Square
• Jaw Interface Type Tongue & Groove
• Material Aluminum
• Maximum Compatible Chuck Diameter (mm) 10.00
• Maximum Compatible Chuck Diameter (Decimal Inch) 10.0000
• Distance Between Mount Hole Centers (Decimal Inch) 2.1250
• Distance Between Mount Hole Centers (mm) 53.98
• Tongue Length (Decimal Inch) 0.7500
• Tongue Width (Decimal Inch) 0.7500
• Tongue Width (mm) 19.10
• Fastener Size (Decimal Inch) 0.5000
• Slot Width 12.70
• Slot Width (Decimal Inch) 0.5000
• Groove Width (mm) 12.70
• Groove Width (D) (Decimal Inch) 0.5000
• Overall Height (Decimal Inch) 3.0000
• Overall Height (Decimal Inch) 76.20
• Overall Length (Inch) 4-1/2
• Overall Length (Decimal Inch) 4.5000
• Material Grade 6061-T6
• Overall Width/Diameter (Decimal Inch) 1.5000
• Overall Width/Diameter (Inch) 1-1/2
• Number Of Jaws 1
• UNSPSC Code 31162902
•


This item appears to be new and in good condition. Does NOT come in the original package. SOLD AS IS.

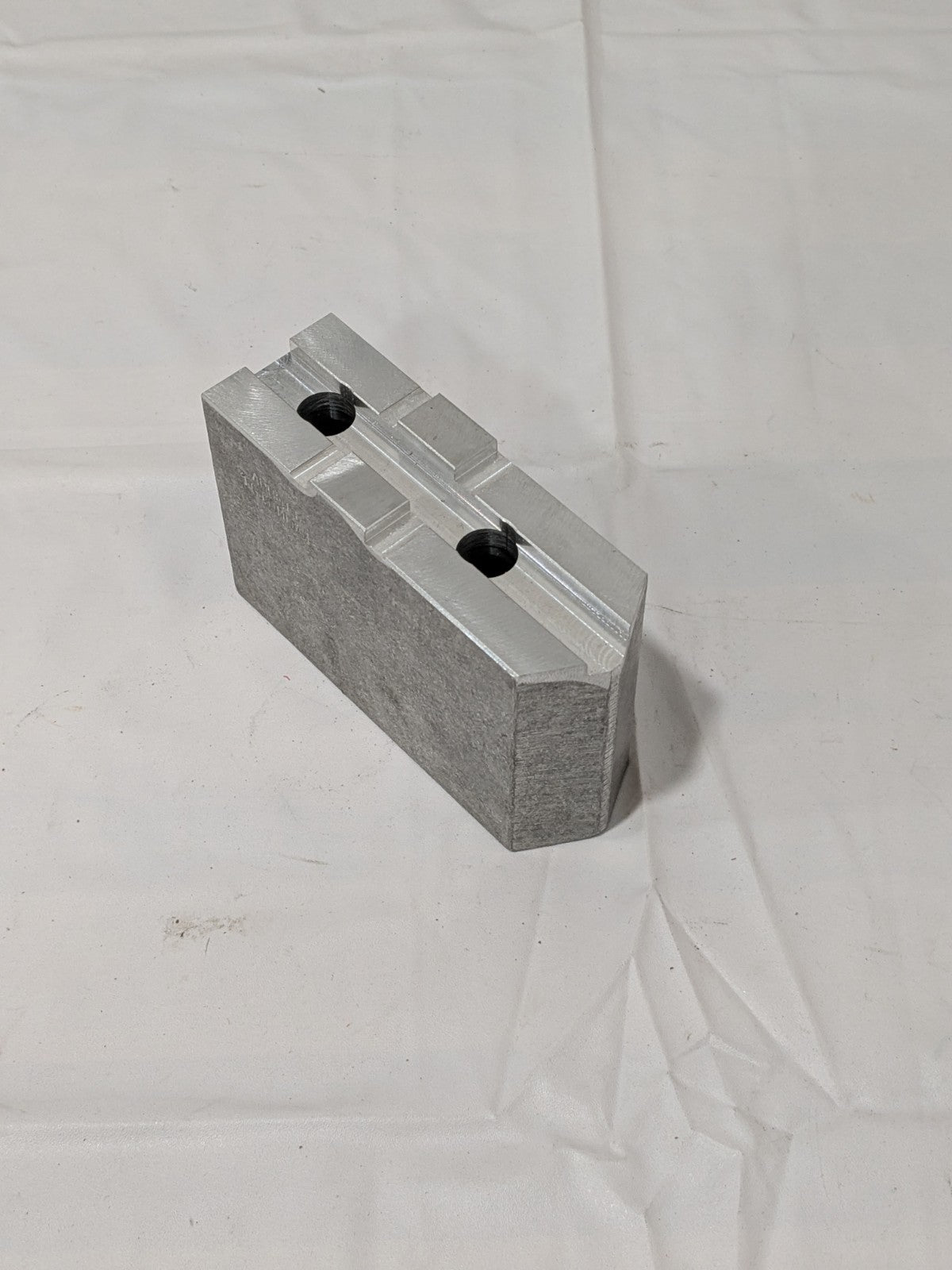

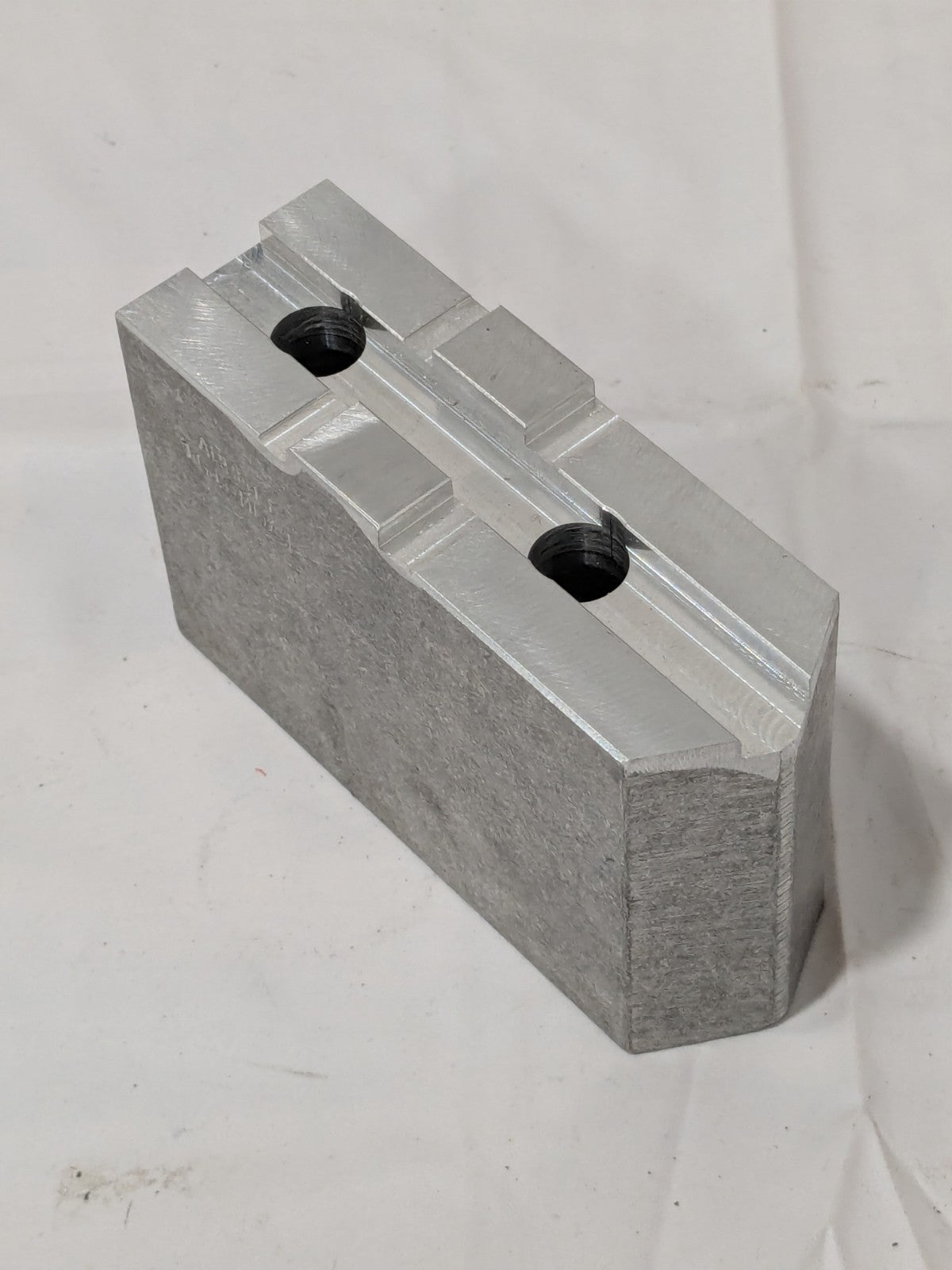

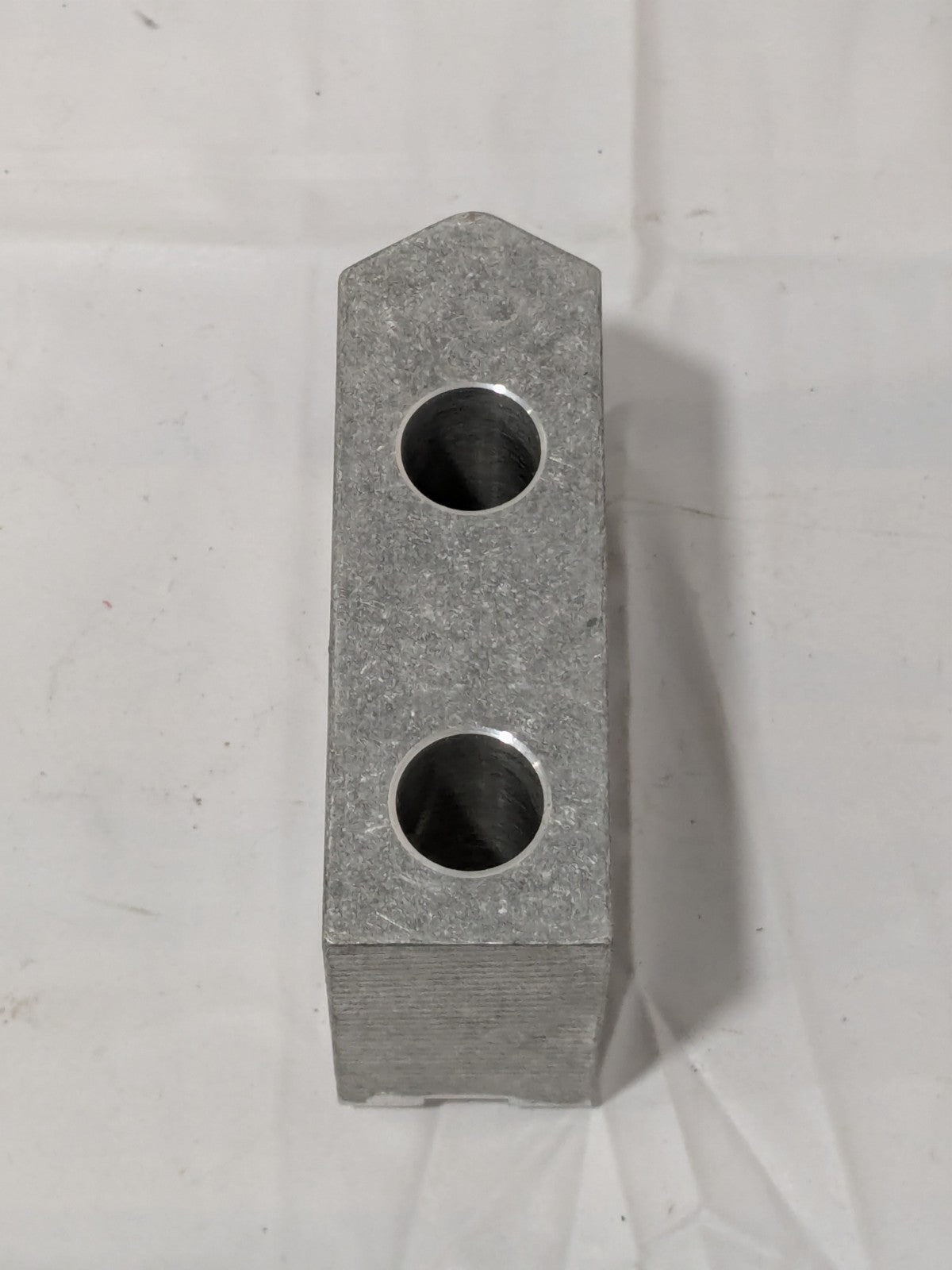

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
