5 PACK Sandvik Coromant Carbide Turning Inserts DNMX332-WF 3005 5733136

Sandvik Coromant
Pack of 10 Carbide Turning Inserts

• Insert Style DNMX
• Insert Size 332
• Material Carbide
• Length (mm) 10.83
• Length (Decimal Inch) 0.4263
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Thickness (Inch) 3/16
• Thickness (Decimal Inch) 0.1875
• Thickness (mm) 4.76
• Corner Radius (Inch) 1/32
• Corner Radius (mm) 0.7938
• Corner Radius (Decimal Inch) 0.0313
• Manufacturer's Grade 3005
• Coating TiCN/Al2O3/TiN
• Chip Breaker WF
• Insert Length (Decimal Inch) 0.4263
• OverallLength (mm) 11.63
• Overall Length (Decimal Inch) 0.4578
• Hole Diameter (mm) 3.81
• Hole Diameter (Decimal Inch) 0.1875
• ISO Number DNMX 11 04 08-WF 3005
• Relief Angle 0
• Coating Process MTCVD
• Manufacturers Catalog Number DNMX 11 04 08-WF 3005
• Primary Workpiece Material K
• Included Angle 55
• Cutting Direction Neutral
• Insert Hand Neutral

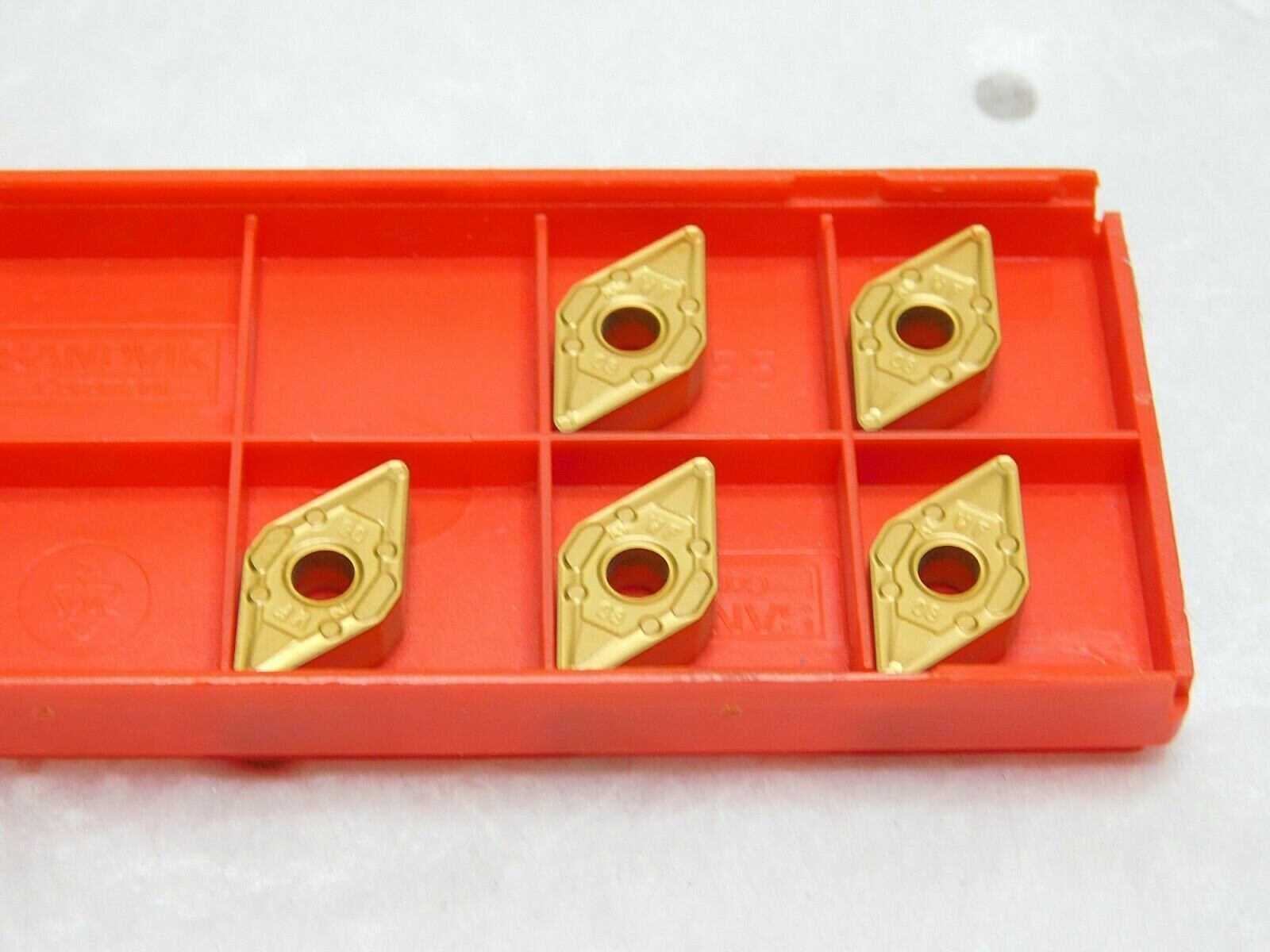

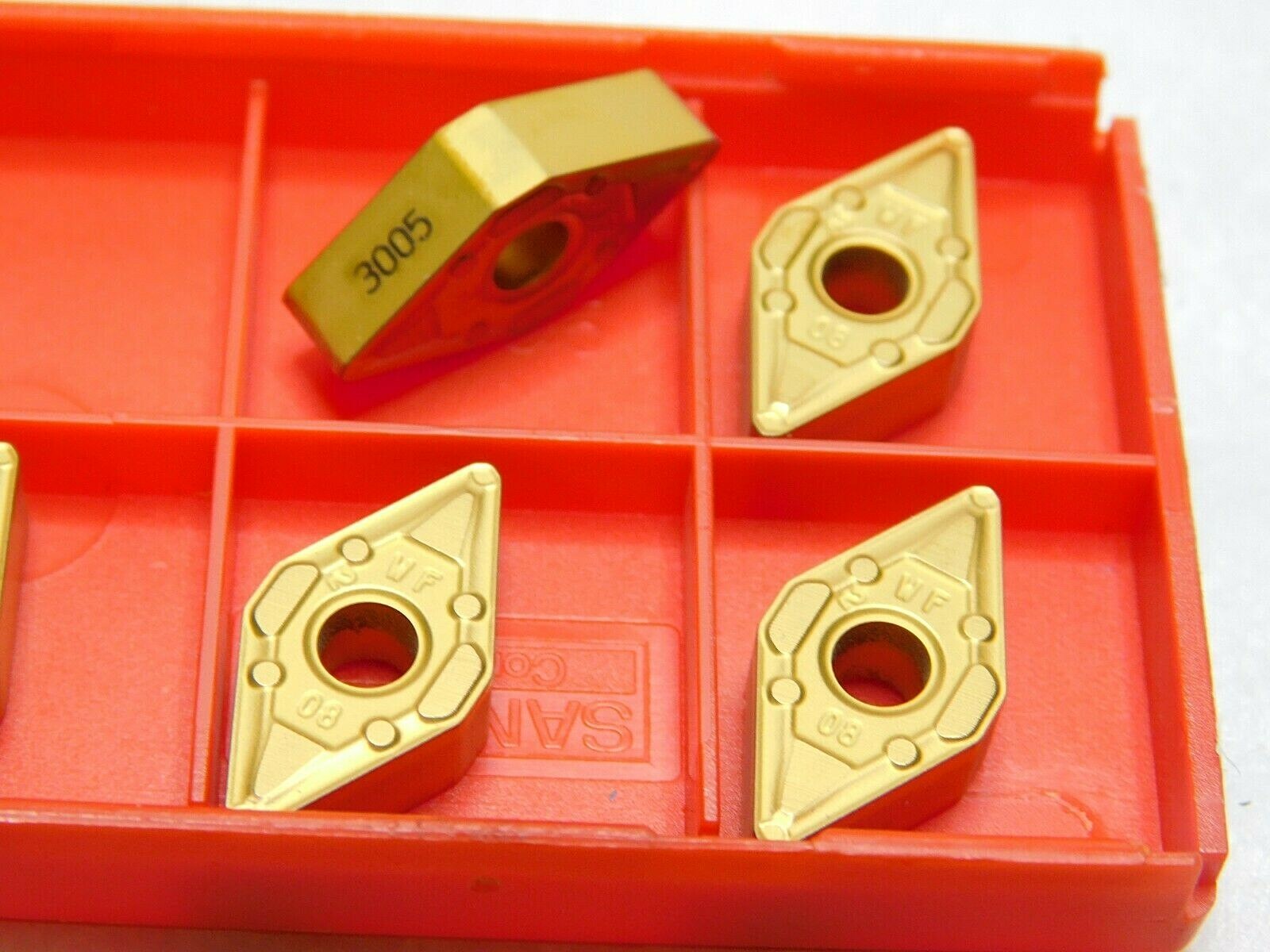

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
