TUNGALOY CarbideTurning Inserts DNMG431-TM QTY 10 6772214

Tungaloy
1 Pack of 10 Carbide Turning Inserts

MSRP: $270

• Insert Style: DNMG
• ANSI Size Code: 431
• ISO Size Code: 150404
• SO Size Code: 150404
• Included Angle: 55.00
• Insert Shape: D - Diamond (Rhombic) 55-Deg
• Inscribed Circle (Inch): 1/2 Included Angle: 55.00
• Corner Radius (Decimal Inch): 0.0157
• Inscribed Circle (Decimal Inch): 0.5000
• Manufacturer Grade: T9215
• Inscribed Circle (Inch): 1/2
• Relief Angle: 0.000
• Corner Radius (Inch): 1/64
• Insert Thickness (Inch): 3/16
• Corner Radius (Decimal Inch): 0.0157
• Insert Hand: Neutral Insert Material: Carbide
• Chip Breaker Operation: Finishing
• Manufacturer Grade: T9215
• Side Clearance: Negative Coating/Finish: TiCN; TiN; Al2O3
• Insert Shape Code: D
• Relief Angle: 0.000
• Maximum Depth of Cut (Decimal Inch): 0.0590
• Wiper Edge: No
• ISO Insert Code: DNMG150404
• Insert Thickness (Inch): 3/16
• Width (Inch): 1/2 Insert Thickness (Decimal Inch): 0.1875
• Tolerance Code: M
• Insert Hand: Neutral
• Length Range (Decimal Inch): 0.7000 - 10.0000 Series: DNMG-TSF
• Insert Length (Decimal Inch): 1.2200
• Chip Breaker Operation: Finishing
• Primary Workpiece Material Code: P; K; M
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Standards: ISO; ANSI Side Clearance: Negative
• Material Grade: P10; P20 Number Of Cutting Edges: 4
• Coating Classification: CVD
• Insert Shape Code: D
• Rake Angle: 13
• Hole Diameter (Decimal Inch): 0.2030
• Industry Standard Number: DNMG 431 TSF Maximum Depth of Cut (Decimal Inch): 0.0590
• Multi-Use Tool: Yes
• ANSI Insert Code: DNMG431
• Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring ISO Insert Code: DNMG150404
• Insert Size Code: 431 Insert Holding Method: Pin; Clamp

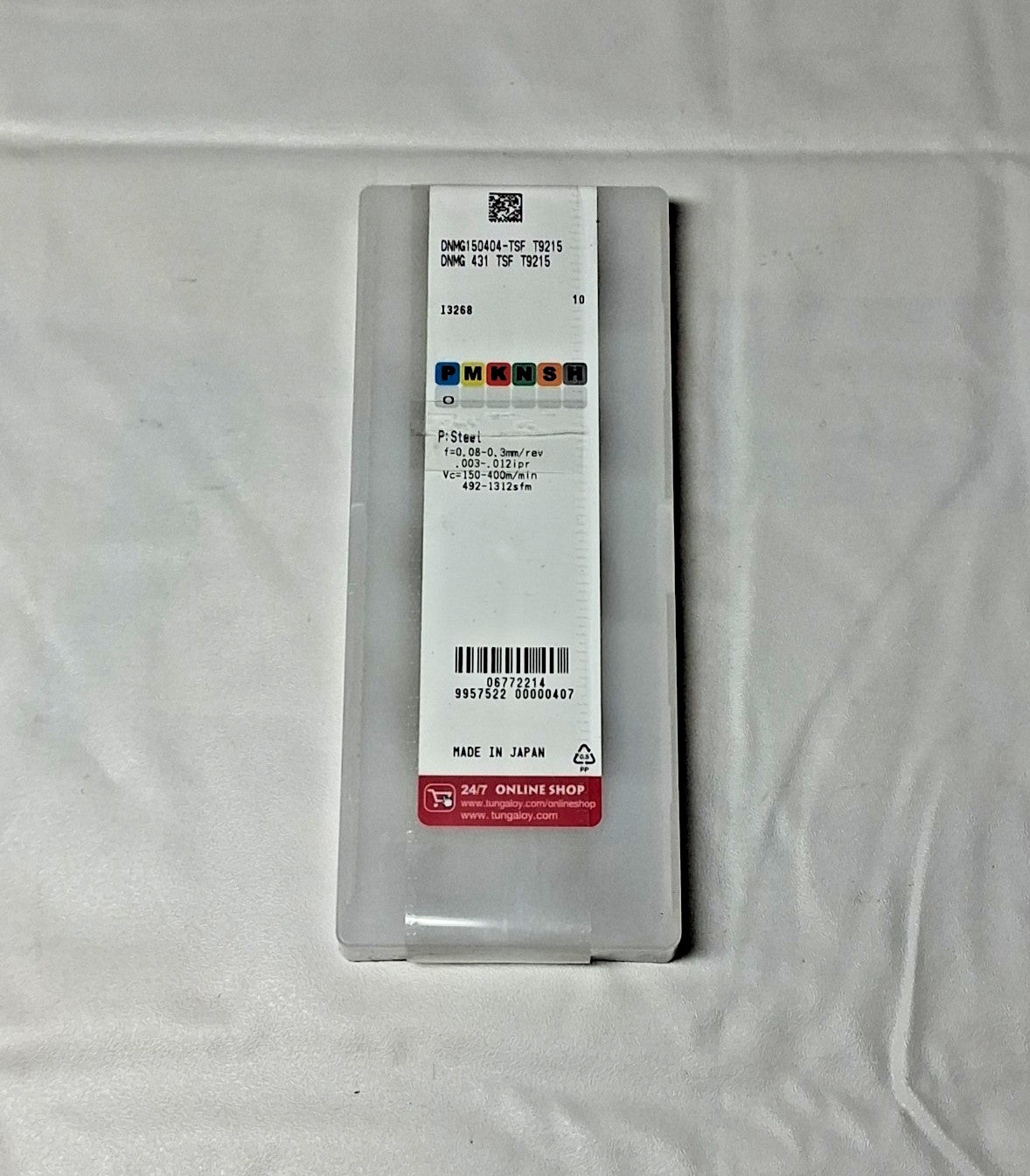

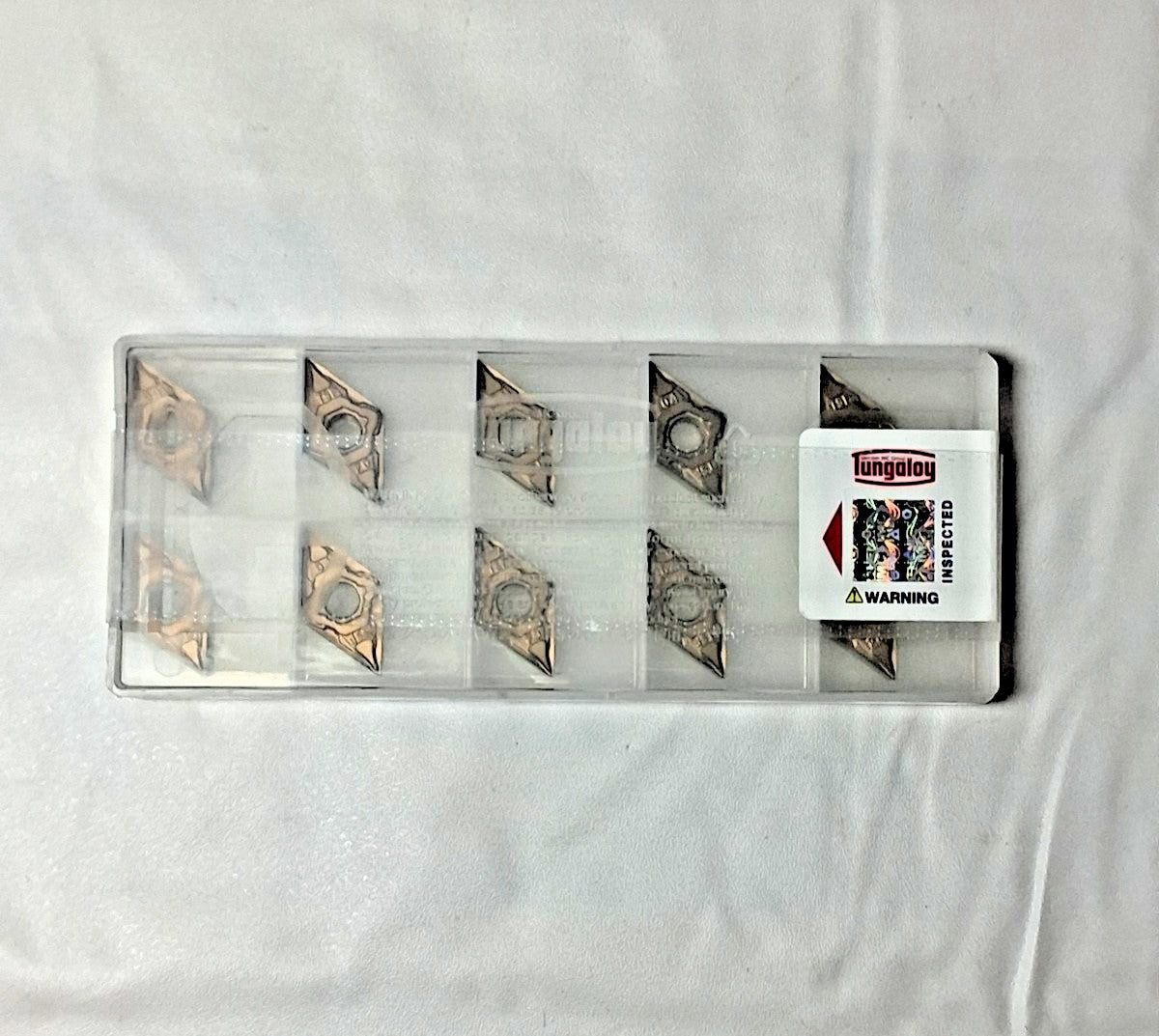

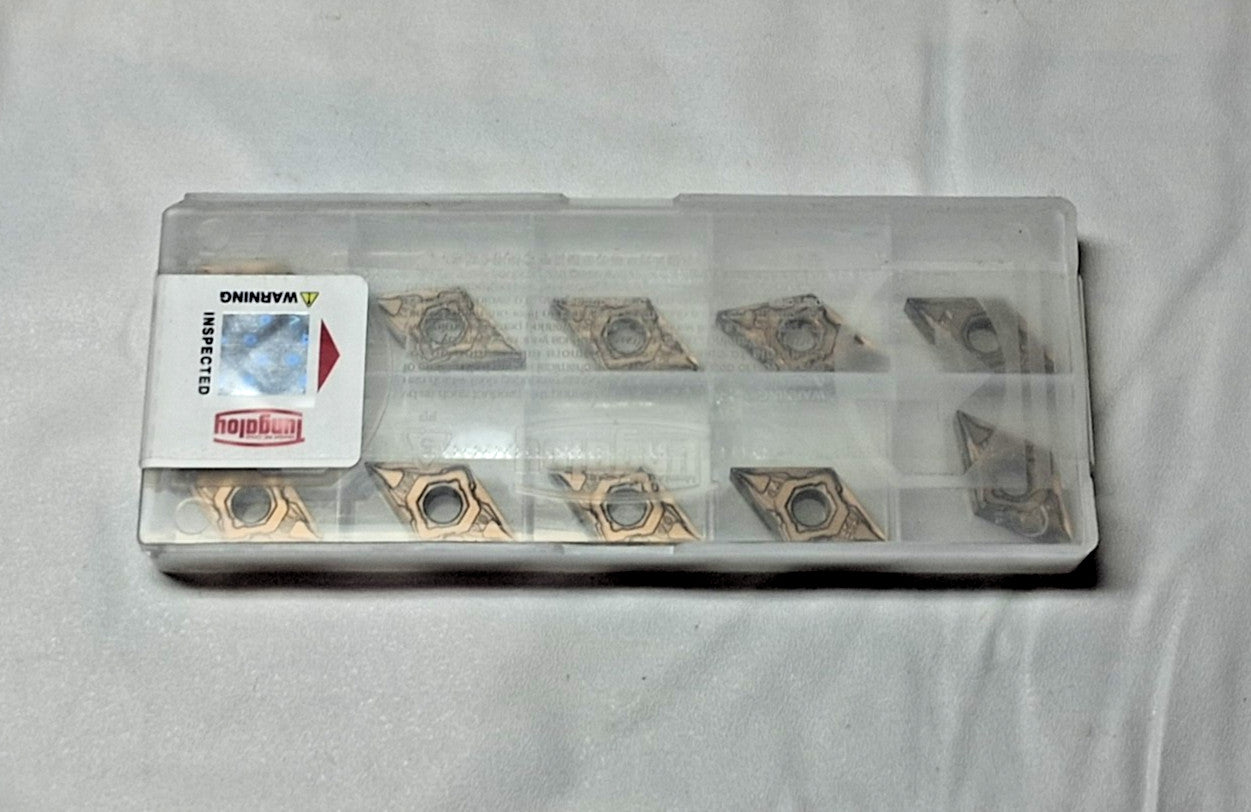

Please review photos, comes as shown.
