Description
KYOCERA
Pack of 10 Carbide Grooving Inserts
MSRP: $300
- Insert Style GDM
- Insert Size 4020
- Insert Size Code 4020
- Material Carbide
- Insert Material Carbide
- Cutting Width (mm) 4.00
- Cutting Width (Decimal Inch) 0.1575
- Coated Coated
- Material Grade Micrograin
- Manufacturer’s Grade PR1225; PR1225
- Manufacturer Grade PR1225
- Coating Megacoat
- Maximum Depth Of Cut 1.0039 in; 25.5 mm
- Cutting Direction Neutral
- Insert Hand Neutral
- Cutting Height (mm) 4.30
- Cutting Height (Decimal Inch) 0.1693
- Corner Radius 0.015748 in; 0.40 mm
- Chipbreaker GM
- Multi-use Tool Yes
- Cutting Tool Application Grooving
- Coating Process PVD
- Primary Workpiece Material Code P
- Secondary Workpiece Material Code M
- Ansi Code GDM4020N040GMPR1225
- Iso Code GDM4020N040GMPR1225
- Standards ANSI; ISO
- Relief Angle 2?
- Multi-Use Application Cut-Off
- Multi-Use Tool Yes
- Corner Radius (mm) 0.40
- Corner Radius (Decimal Inch) 0.015748
- Coating Process PVD; PVD
- Overall Length (mm) 20.00
- Overall Length (Decimal Inch) 0.7874
- Series GD
- Rake Angle 2?
- Rake Positive
- ISO Number GDM4020N040GMPR1225
- Manufacturers Catalog Number GDM4020N-040GM
- Insert Thickness (Decimal Inch) 0.1299
- Insert Thickness (mm) 3.3000
- Series Number GD

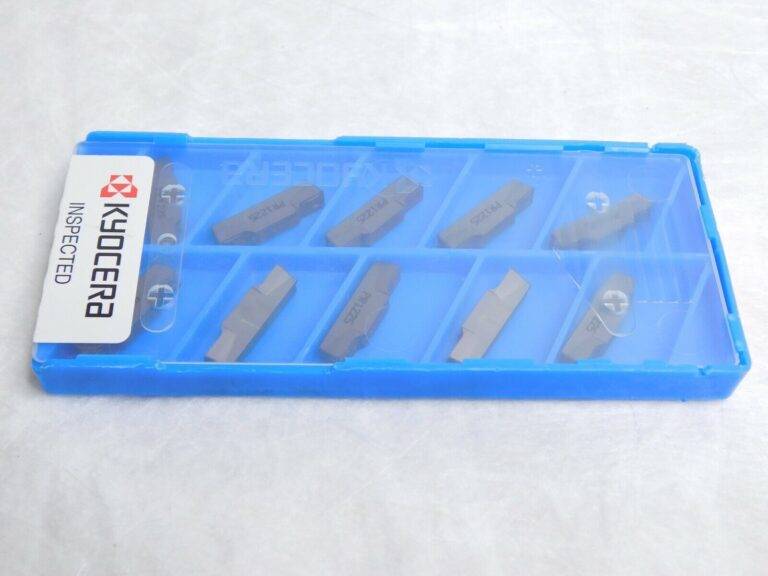

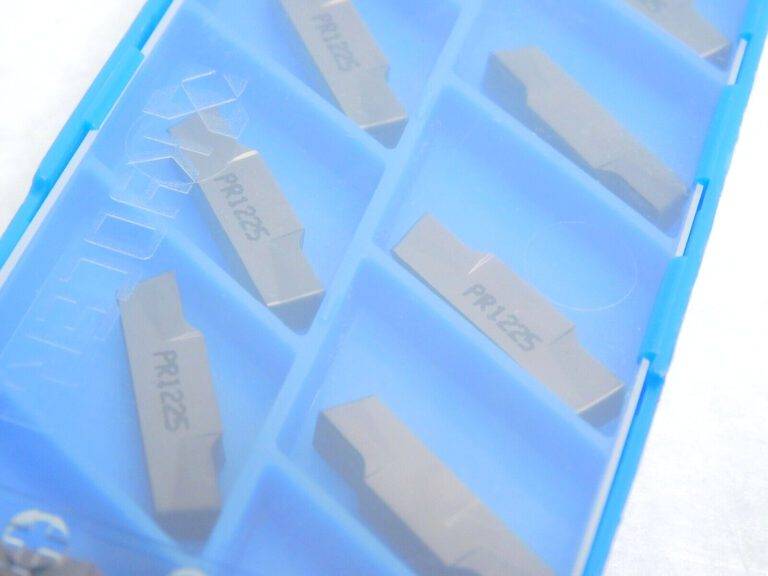

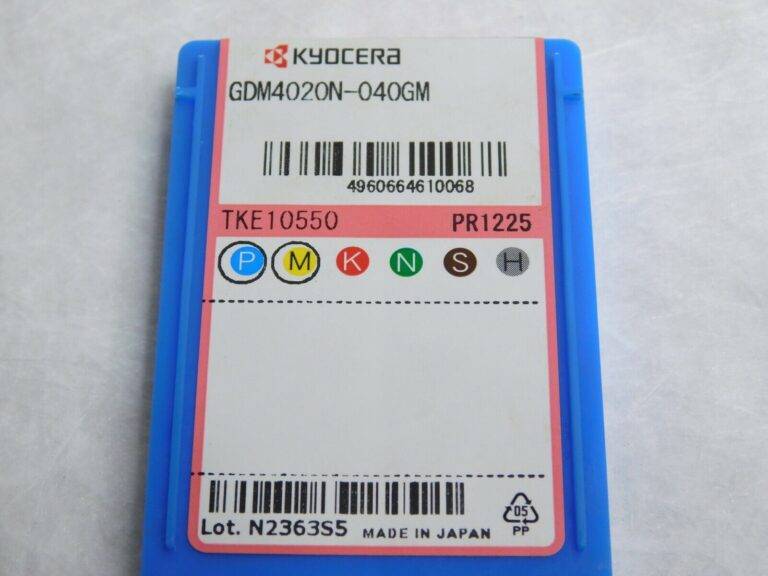

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 06 22
VM11138
Cab Nacho Bin 8
BRAND: Kyocera
MSRP: $300
INSERT MATERIAL: Carbide
MPN: 553616EN4D
INSERT TYPE: Grooving Insert
COUNTRY/REGION OF MANUFACTURE: Japan
LOCATION: VM11138cabnachobin8
