Kennametal Carbide Turning Inserts Snmg544 Un Grade Kc9315 Box Of 5 1566788
$130.00Original price was: $130.00.$56.69Current price is: $56.69.
Kennametal
MSRP: $130 for 5 Inserts
Model: 1566788
Description:
Manufacturer:Kennametal
Mfr Part #:1566788
Insert Style:SNMG
Insert Size:544
Material:Carbide
Inscribed Circle (Decimal Inch) :0.6250
Inscribed Circle (Inch) :5/8
Thickness (Inch) :1/4
Thickness (Decimal Inch) :0.2500
Corner Radius (Inch) :1/16
Corner Radius (Decimal Inch) :0.0625
Manufacturer's Grade:KC9315
Coating:TiCN/Al2O3/TiN
Material Grade:C3/C4
Chip breaker:UN
Hole Diameter (mm):6.35
Hole Diameter (Decimal Inch):0.2500
Rake:Neutral
Rake Angle:0
Relief Angle:0
Coating Process:CVD
Included Angle:90
Insert Hand:Neutral
Series:KENLOC
Maximum Depth of Cut (mm):1.25
Maximum Depth of Cut (Decimal Inch):0.0492
Insert Holding Method:Screw or Clamp
Shape:Square

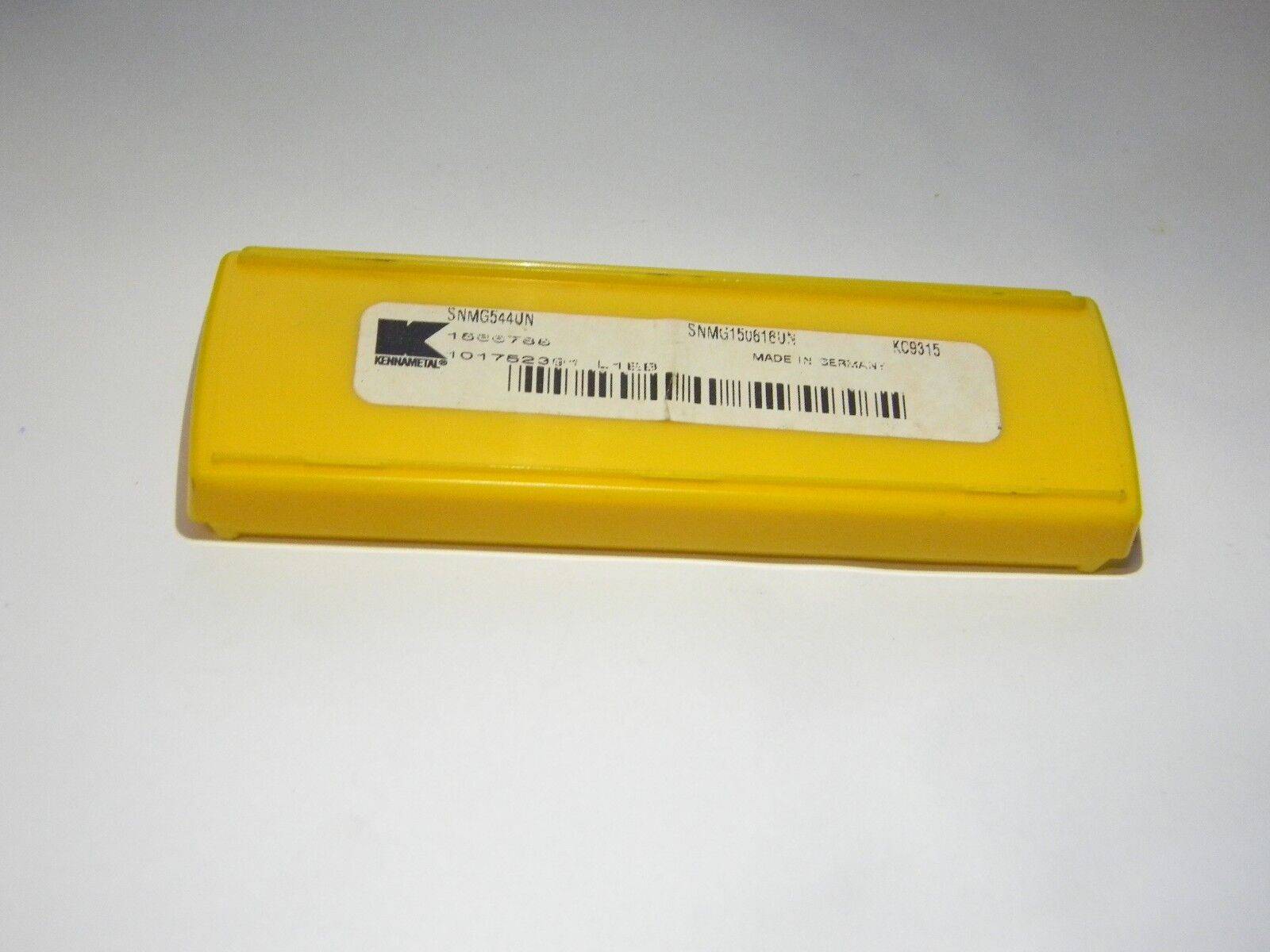

This listing is for One Box of 5 Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
