Description
MSRP: $210.00
Model:
Description:
| Drill Style | DFT |
| Drill Diameter (mm) | 32.00 |
| Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (mm) | 76.00 |
| Maximum Drill Depth (Decimal Inch) | 2.9921 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 5.29×3.75 |
| Insert Size (Decimal Inch) | 0.2080×0.1480 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Diameter (mm) | 33.00 |
| Overall Length/Projection (mm) | 173.00 |
| Overall Length/Projection (Decimal Inch) | 6.8110 |
| Insert Compatibility | DFT 05T308 |
| Body Length (Decimal Inch) | 4.5276 |
| Body Length (mm) | 115.00 |
| Shank Length (mm) | 58.00 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | R1/4 |

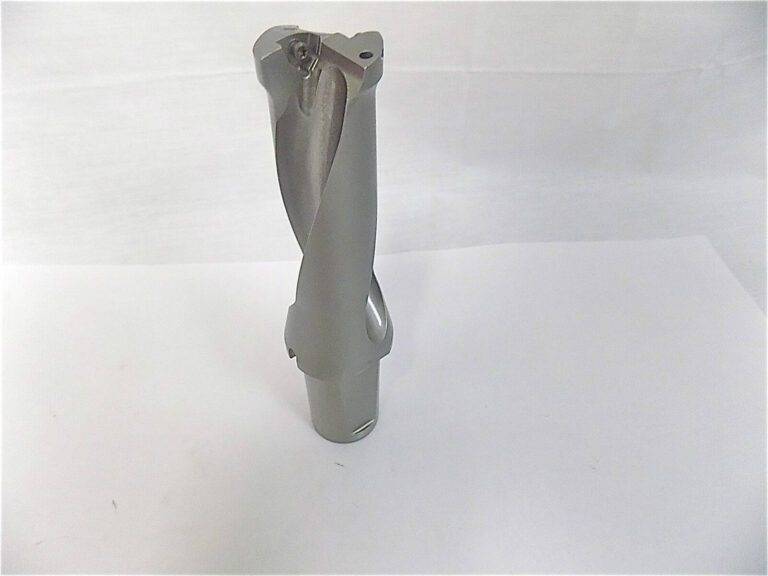

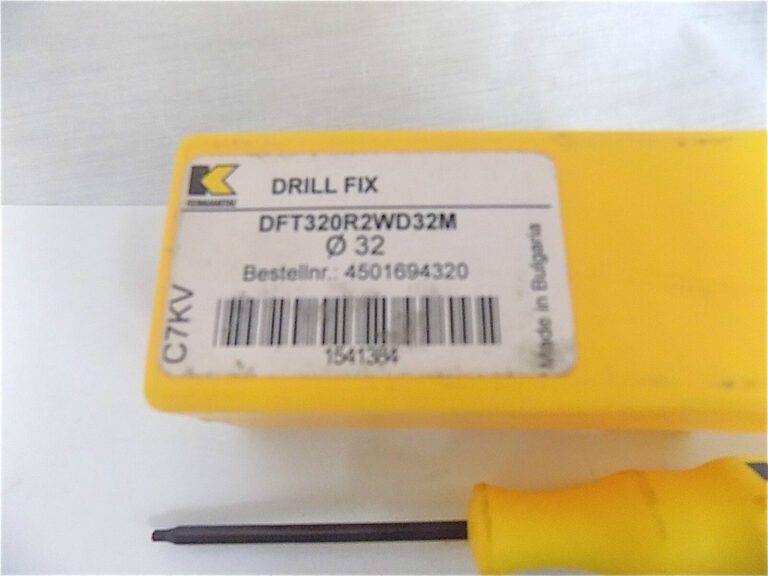

This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
Cristy July 22 2020
CM 8525
Bubbles Shelf 5 bin2
LOCATION: CM8525Bubbles
COUNTRY/REGION OF MANUFACTURE: Bulgaria
MPN: Does Not Apply
BRAND: Kennametal
MODEL: 1541384
MSRP: 210.00
