Description
Hertel
MSRP: $40
Model: 46831939
Description:
Insert Style DNMG
Insert Size 442
Material Carbide
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 1/4
Thickness (Decimal Inch) 0.2500
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0315
Manufacturer’s Grade HC115T
Coating TiCN/Al2O3
Material Grade P15
Chip breaker HMR
Length (mm) 15.50
Length (Decimal Inch) 0.6102
Hole Diameter (mm) 5.16
Hole Diameter (Decimal Inch) 0.2030
Rake Neutral
Relief Angle 0
Coating Process CVD
Primary Workpiece Material P
Secondary Workpiece Material K
Included Angle 55
Cutting Direction Neutral
Insert Hand Neutral
Maximum Depth of Cut (mm) 15.50
Maximum Depth of Cut (Decimal Inch) 0.6102
Insert Holding Method Pin & Clamp
Shape Diamond

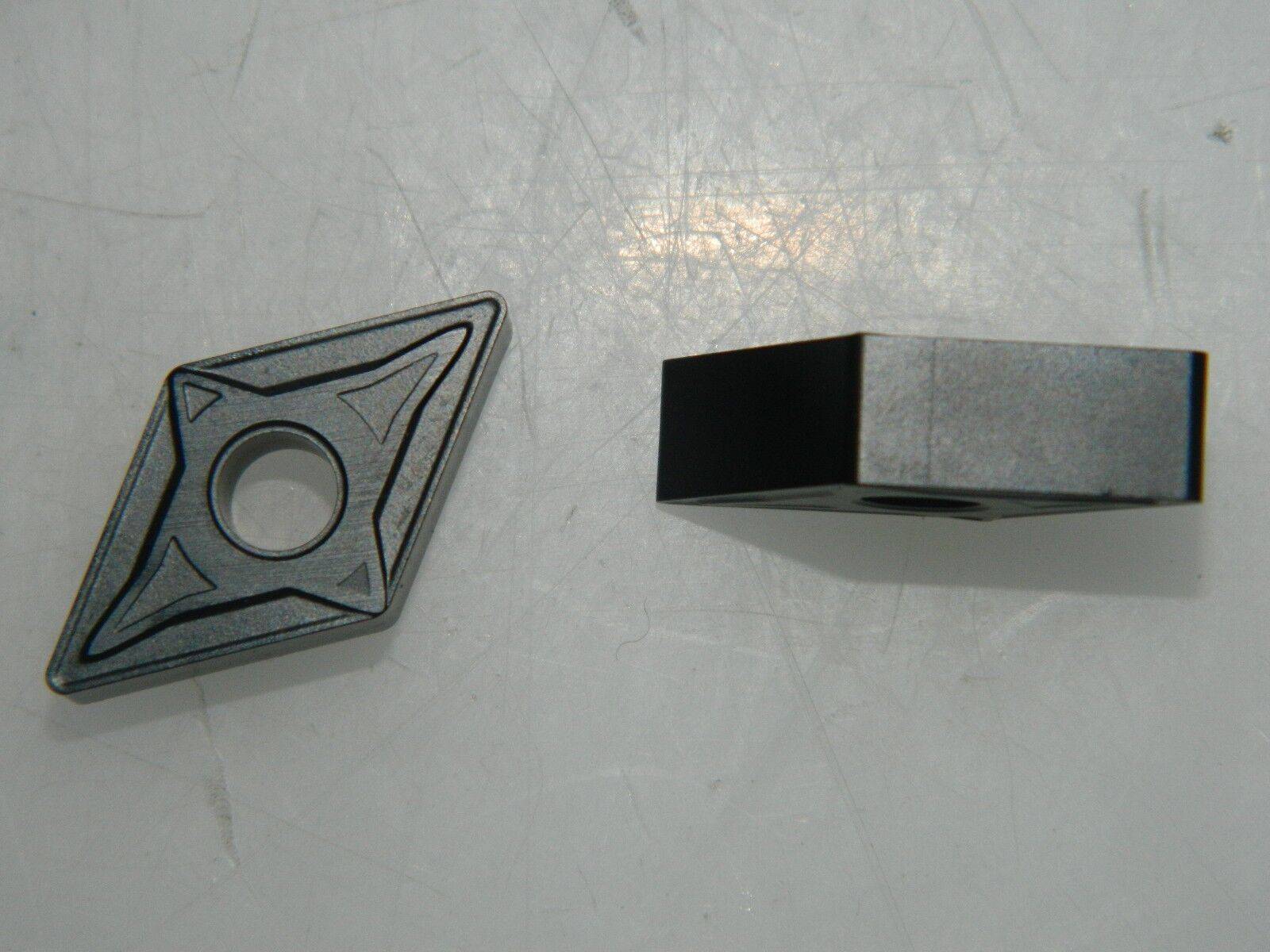

This listing is for One Carbide Turning Inserts 2 Pack that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
