Description
Hertel
MSRP: $340.00
Model: 39270426
Description:
Drill Style HID
Drill Diameter (mm) 21.00
Drill Diameter (Inch) 0.8268
Drill Diameter (Decimal Inch) 0.8268
Maximum Drill Depth (mm) 63.00
Maximum Drill Depth (Decimal Inch) 2.4803
Maximum Drill Depth (Inch) 2.480
Shank Type Straight
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (Inch) 0.9843
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 3xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 0.8520
Overall Length/Projection (mm) 81.00
Overall Length/Projection (Decimal Inch) 3.1890
Insert Compatibility (Outside or Peripheral) None
Insert Compatibility HPMT063306-GP
Flute Length (mm) 66.00
Flute Length (Decimal Inch) 2.5984
Body Length (Decimal Inch) 5.3937
Body Length (mm) 137.00
Shank Length (mm) 56.00
Shank Length (Decimal Inch) 2.2047
Collar Diameter (mm) 33.00
Collar Diameter (Decimal Inch) 1.2992
Radius (Decimal Inch) 0.0236

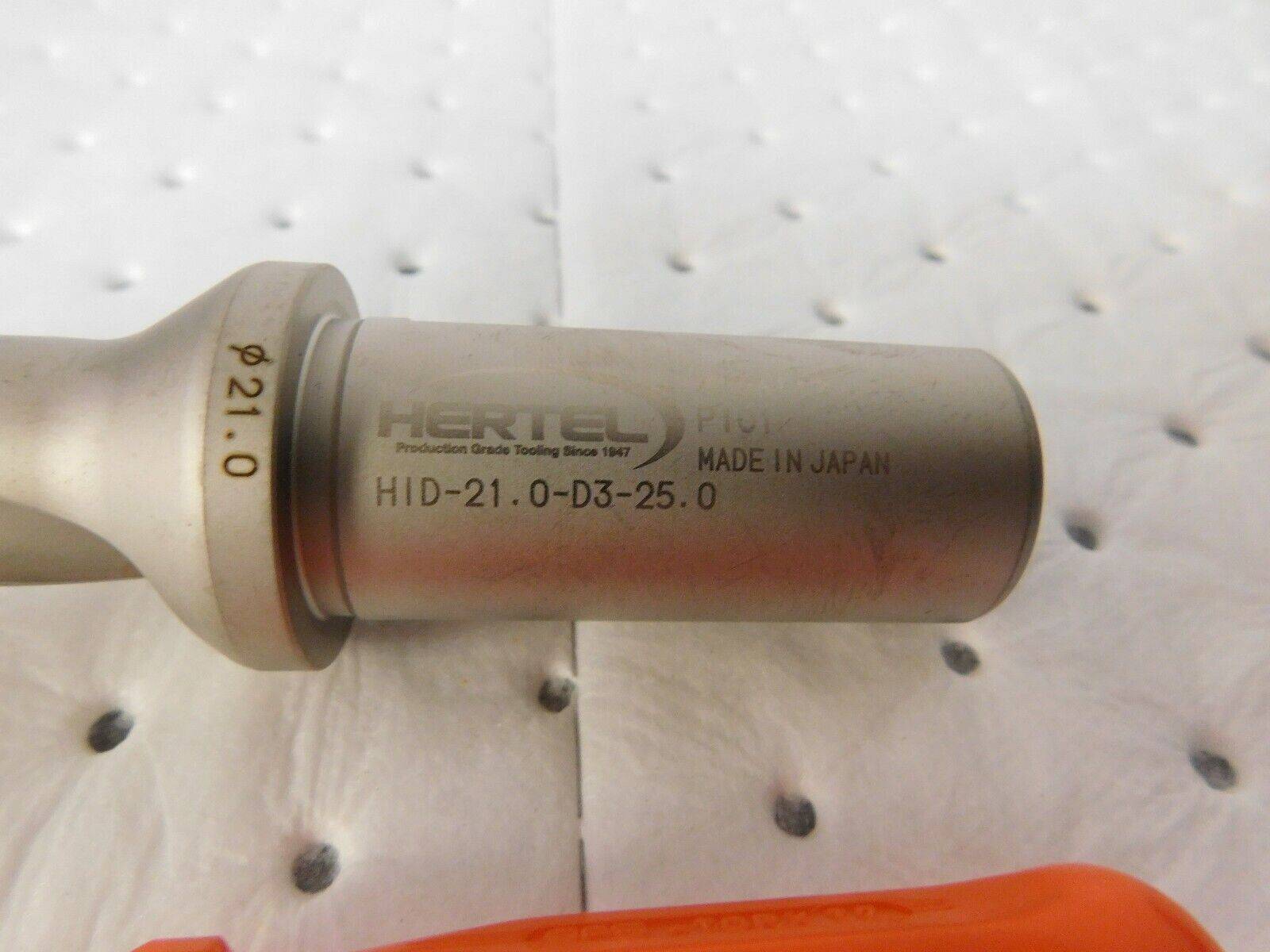

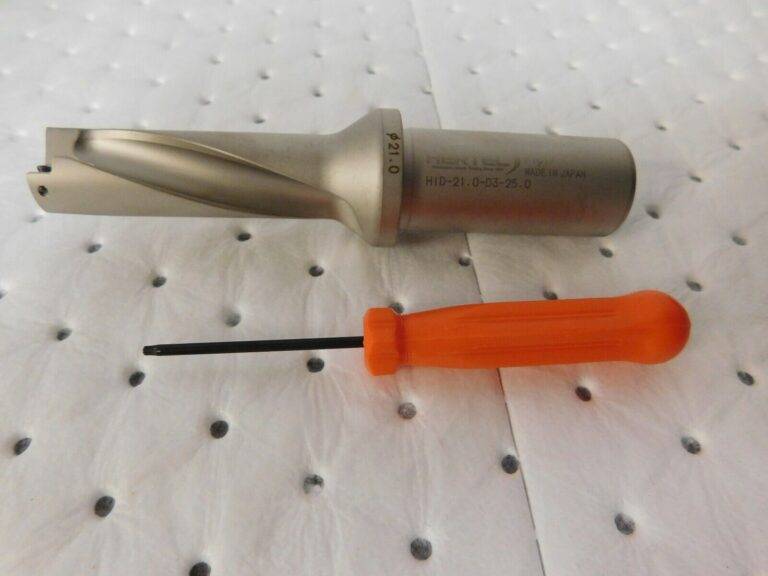

This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy September 12 2019
CM 4557
SM2
COUNTRY/REGION OF MANUFACTURE: Japan
MPN: Does Not Apply
BRAND: Hertel
LOCATION: CM4557SM2
MSRP: 340.00
