Description
APT
MSRP: $450
Model: SM3410R-8
Description:
Connection Type Shank
Cutting Width (Decimal Inch) 0.9820
Maximum Depth of Cut (Decimal Inch) 0.9370
Cutter Diameter (Inch) 3
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Number of Teeth 4
Toolholder Style SM34
Series Slot Master
Insert Style CTA 8
Staggered Tooth Yes
Number of Cutter Inserts 4
Cutting Direction Right Hand
Insert Holding Method Wedge
Minimum Cutting Width (Decimal Inch) 0.9820
Maximum Cutting Width (Decimal Inch) 1.2650
Radius No
Rake Positive
Cutter Body Width (Decimal Inch) 0.9500
Shank Length (Decimal Inch) 2.0500
Weldon Flat Yes
Complete Insert Compatibility1 CTA-8

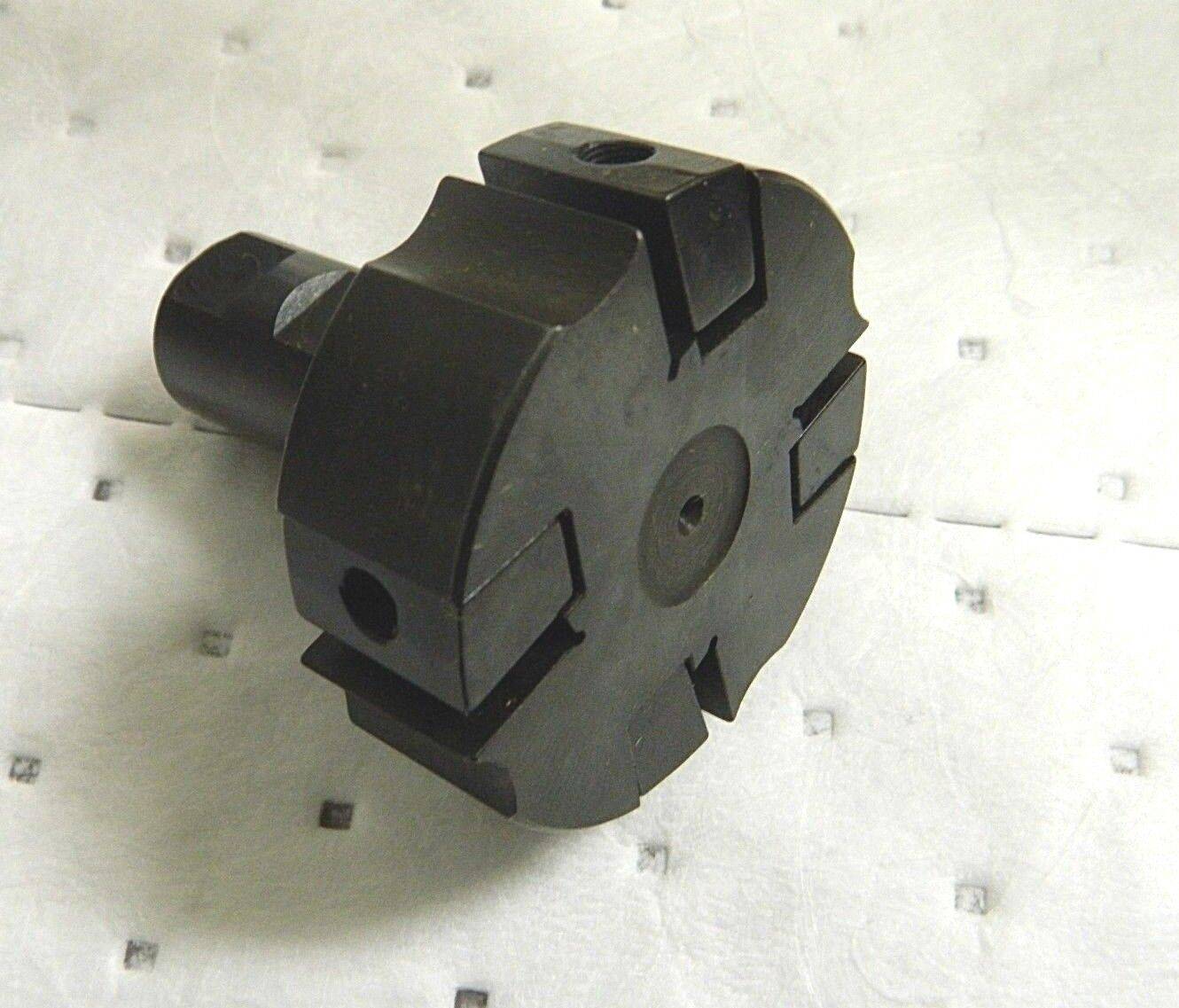

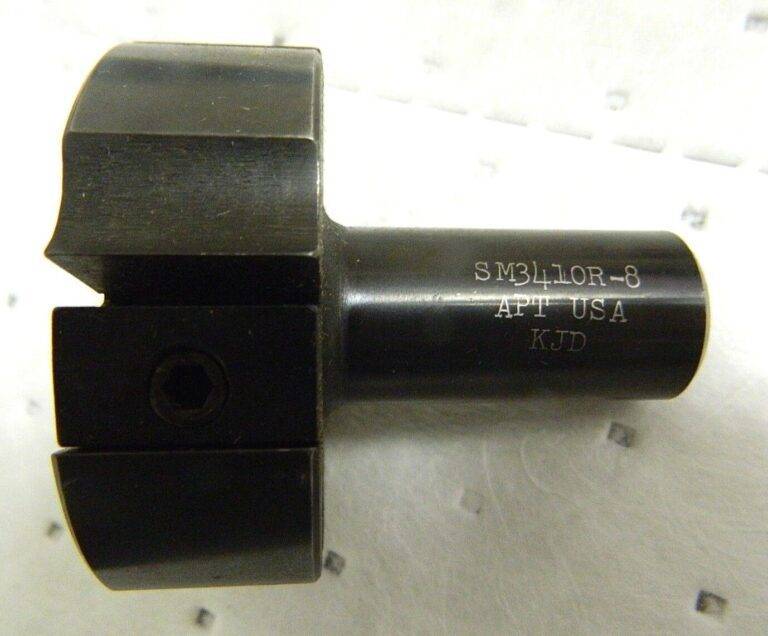

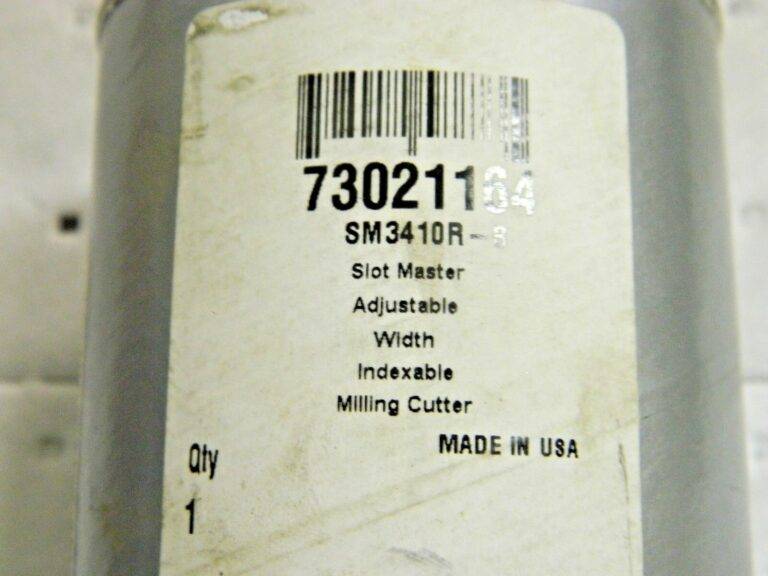

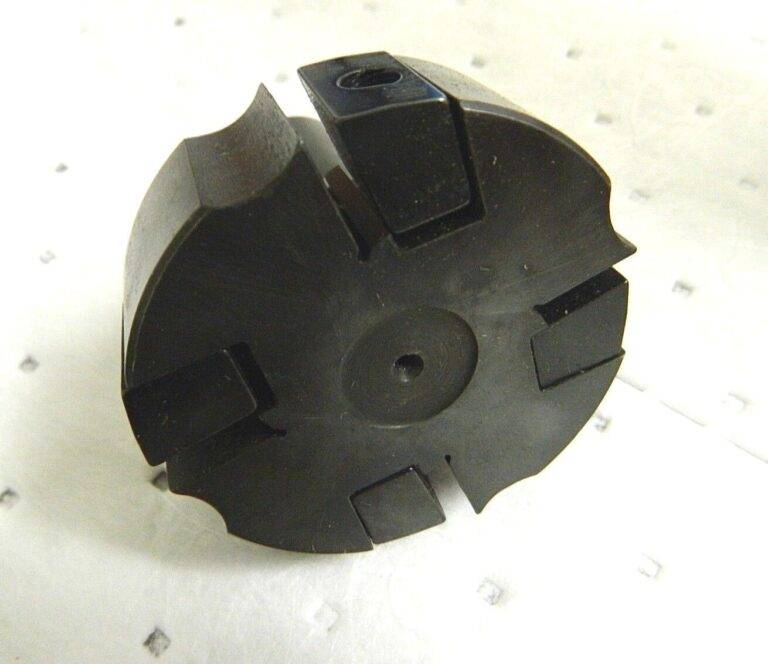

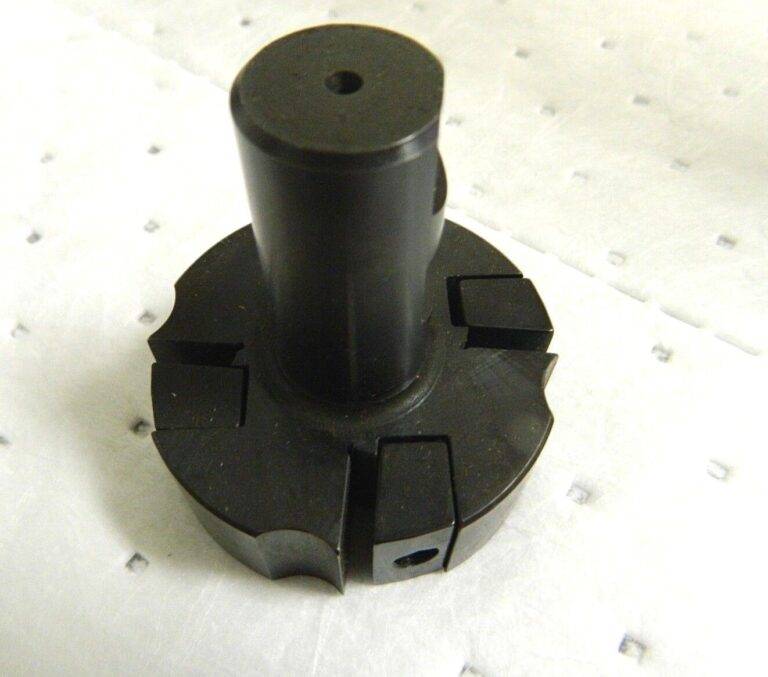

This listing is for One Indexable Milling Cutter that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian September 0718
VM3910
Cab L Bin 12
LOCATION: VM3910cablbin12
MPN: SM3410R-8
MSRP: $450
COUNTRY/REGION OF MANUFACTURE: United States
BRAND: APT
