M.A. Ford
Screw Machine Length Drill Bit

MSRP: $10.00

• Drill Bit Size (Wire) #34
• Drill Bit Size (Decimal Inch) 0.1110
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Bright/Uncoated
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Drill Point Angle 118
• Coolant Through No
• Point Type 4 Facet
• Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.1110
• Overall Length (Decimal Inch) 2.0000
• Overall Length (Inch) 2
• Series 206
• Web Thinning Web-Thinned
• Web Configuration Parallel
• Proprietary Coating/Finish Bright/Uncoated
• Drill Length Type Short
• Shank Length (Inch) 1-3/8
• Shank Length (Decimal Inch) 1.3750
• Flute By Diameter Ratio 3xD
• Drill Bit Diameter Tolerance +0.0000 to -0.0005 in
• Flute Length (Inch) 5/8
• Drill Bit Size Range (Decimal Inch) 0.1000 to 0.1500
• UNSPSC Code 23241635

This item appears to be new and in good condition. SOLD AS IS.

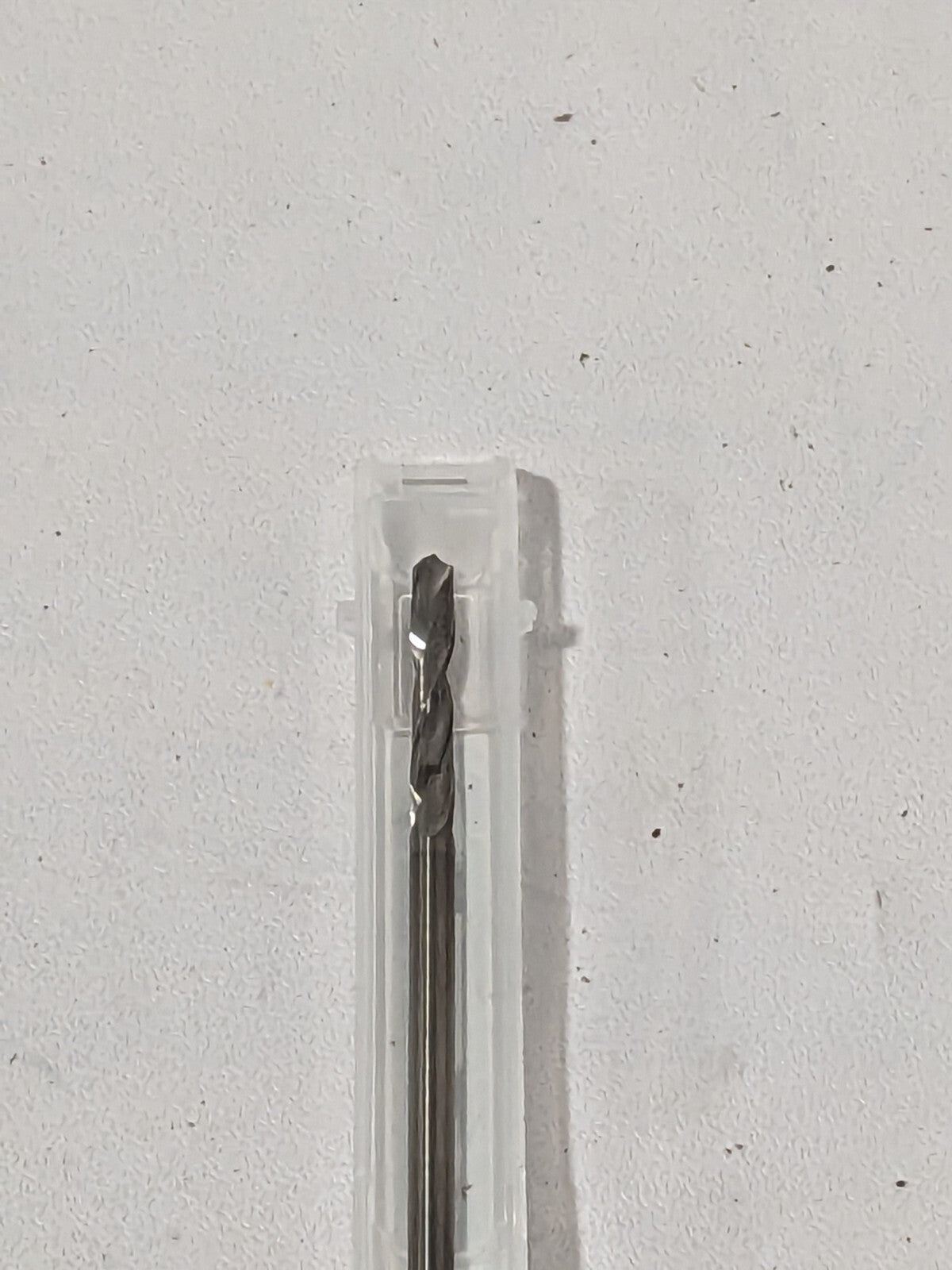

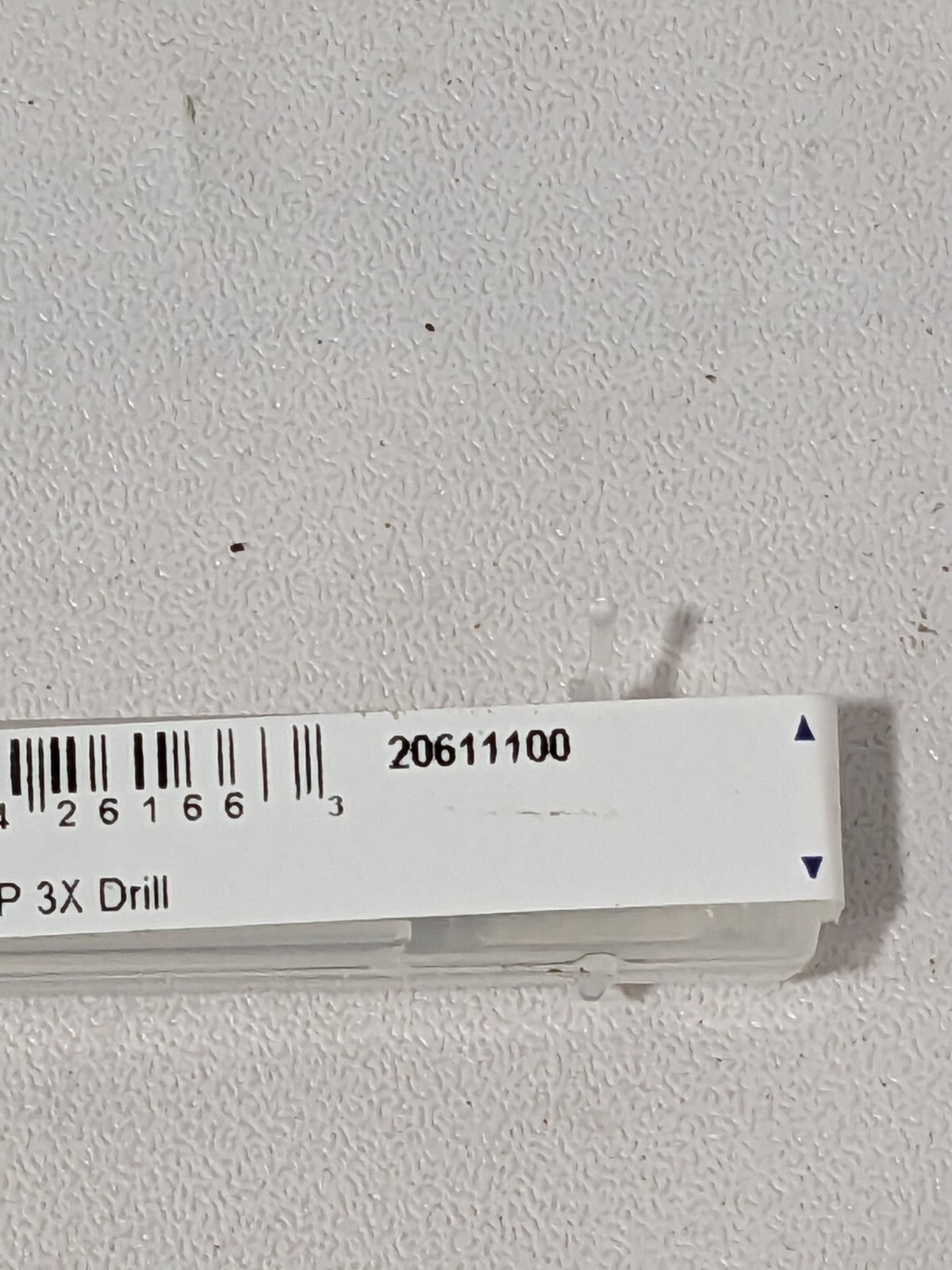

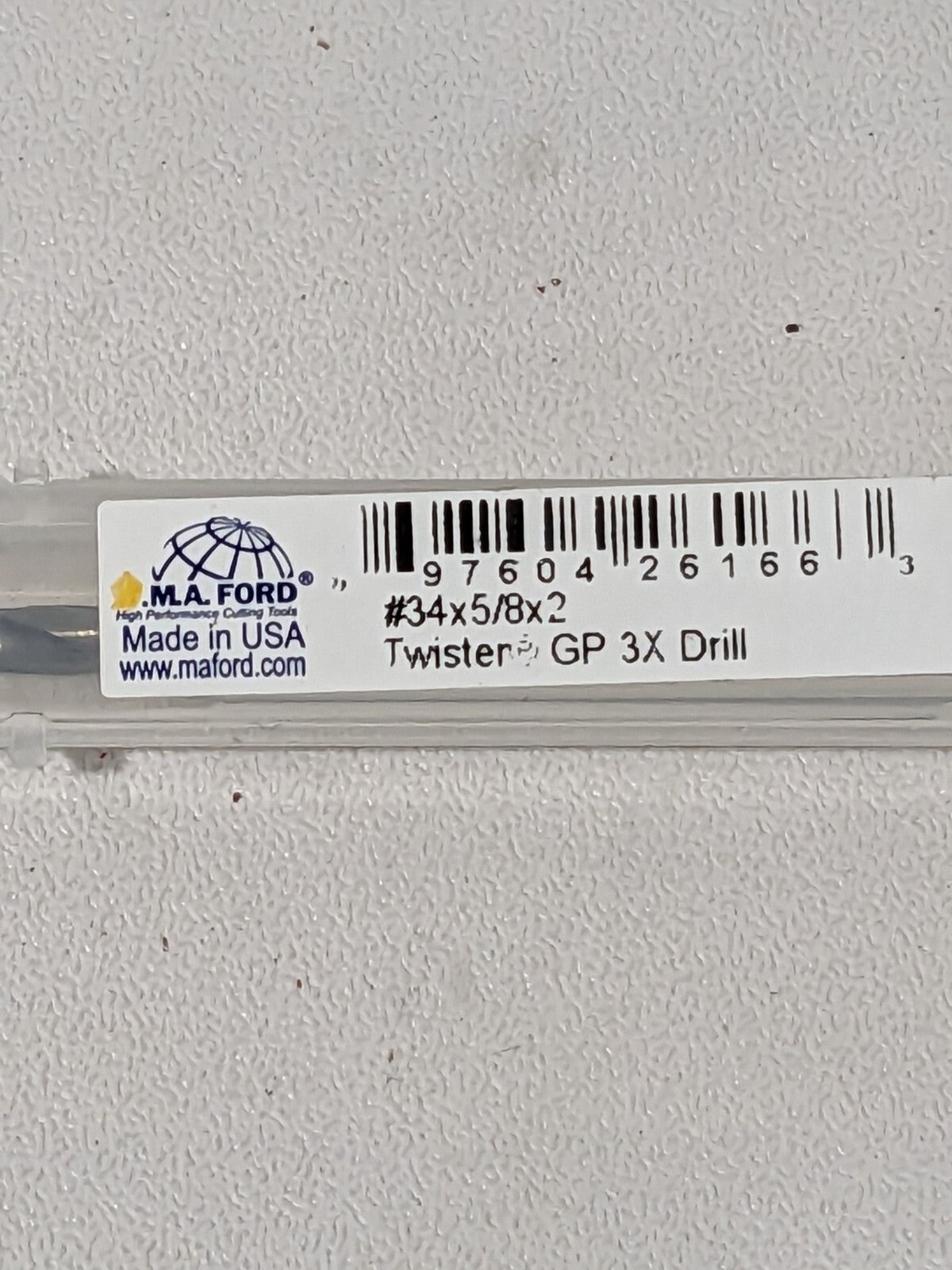

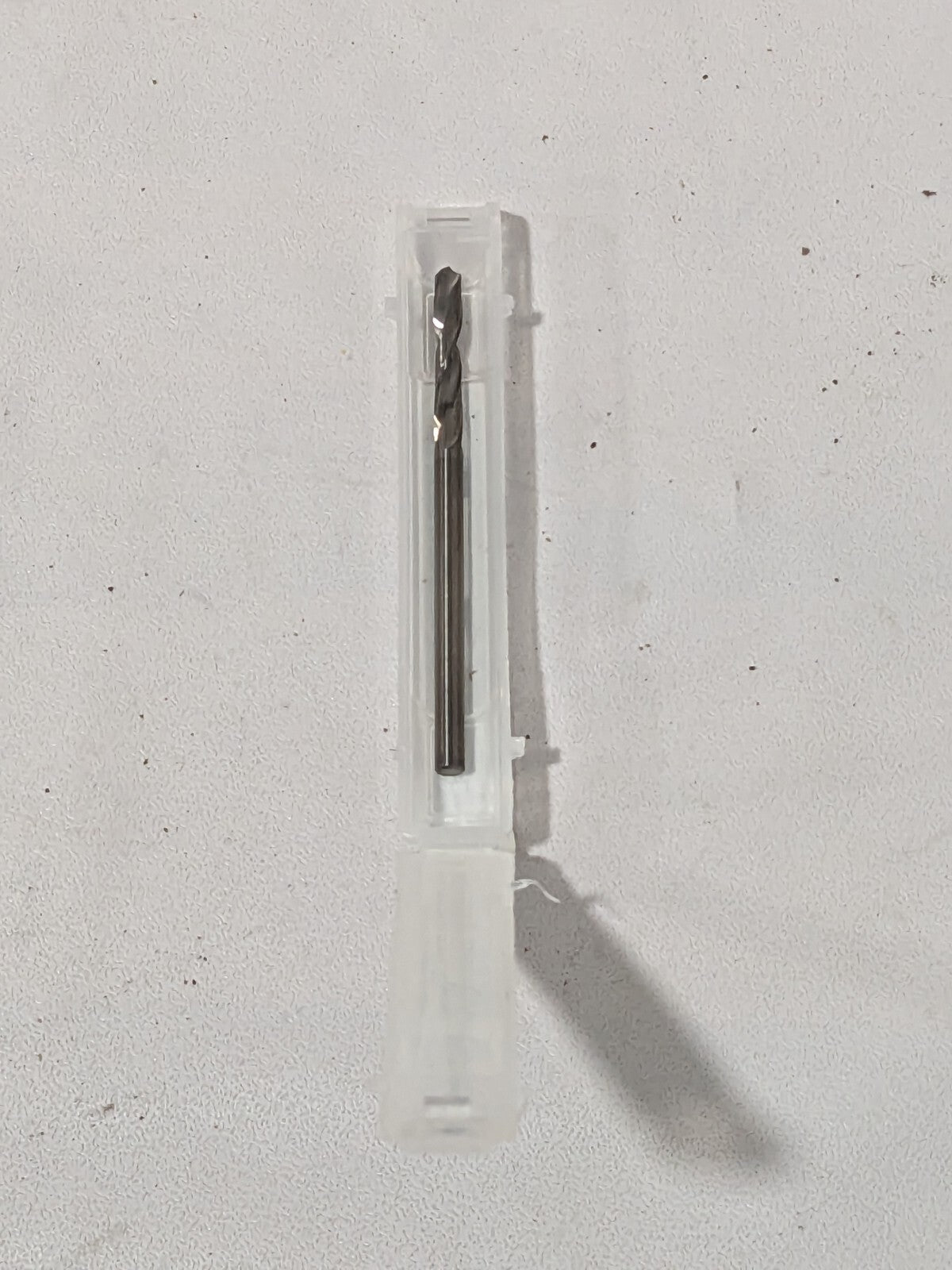

Please review photos, comes as shown.
