KENNAMETAL Screw Machine Length Drill Bit: 8.00 mm (0.3150) Dia, 140º 4150253

Kennametal
Screw Machine Length Drill Bit

MSRP: $60.00

• Drill Bit Size (mm) 8.00
• Drill Bit Size (Decimal Inch) 0.3150
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish TiN
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Flute Length (Decimal Inch) 1.6142
• Flute Length (mm) 41.00
• Drill Point Angle 140
• Coolant Through No
• Point Type Standard
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.3150
• Overall Length (mm) 79.00
• Overall Length (Decimal Inch) 3.1102
• Shank Diameter (mm) 8.00
• Series B041A-CPG
• Web Configuration Tapered
• Proprietary Coating/Finish TiN (Tip)
• Drill Length Type Stub
• Maximum Drilling Depth (Decimal Inch) 1.1417
• Maximum Drilling Depth (mm) 29.00
• Shank Length (Decimal Inch) 1.4173
• Shank Length (mm) 36.00
• Drill Point Length (mm) 1.36
• Drill Point Length (Decimal Inch) 0.0535
• Flute By Diameter Ratio 3xD
• Drill Bit Diameter Tolerance -0.0006 to 0.0000 in; -0.015 to 0.000 mm
• Drill Bit Size Range (Decimal Inch) 0.3000 to 0.3500
• Drill Bit Size Range (mm) 8.00 - 9.50
• Specification Number DIN 6537K
• Specification Designation DIN
• UNSPSC Code 23241635

This item appears to be new and in good condition. SOLD AS IS.

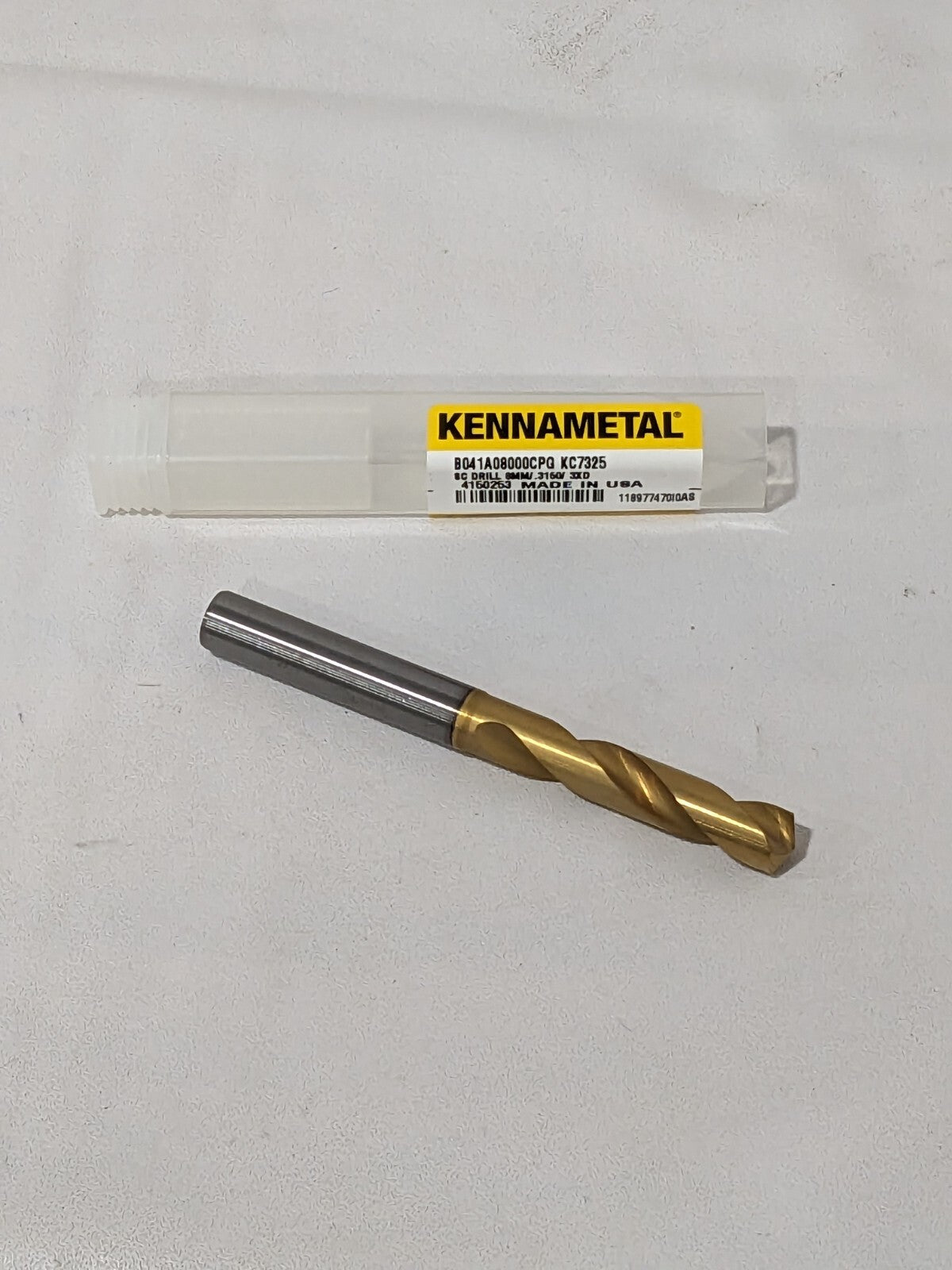

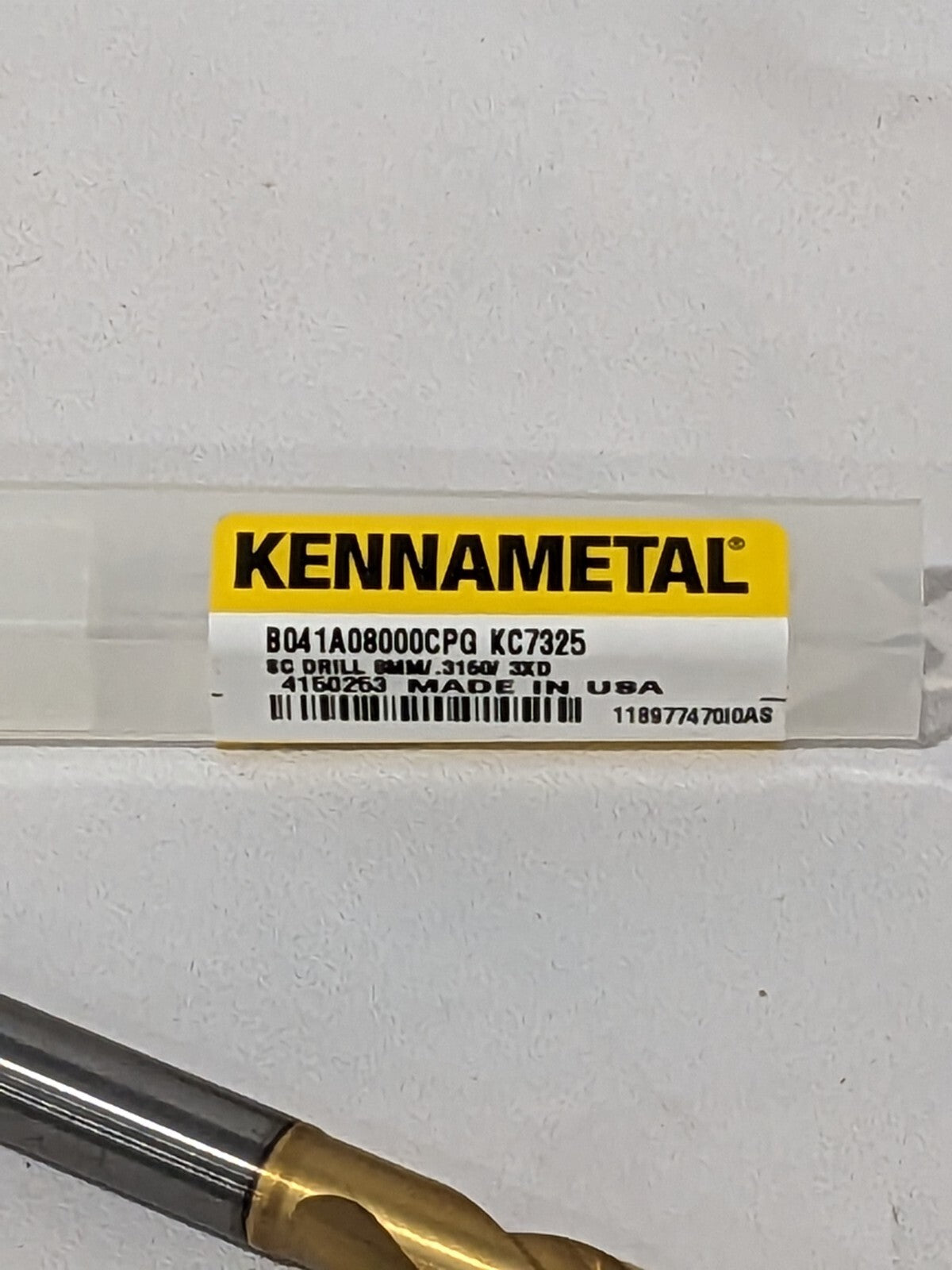

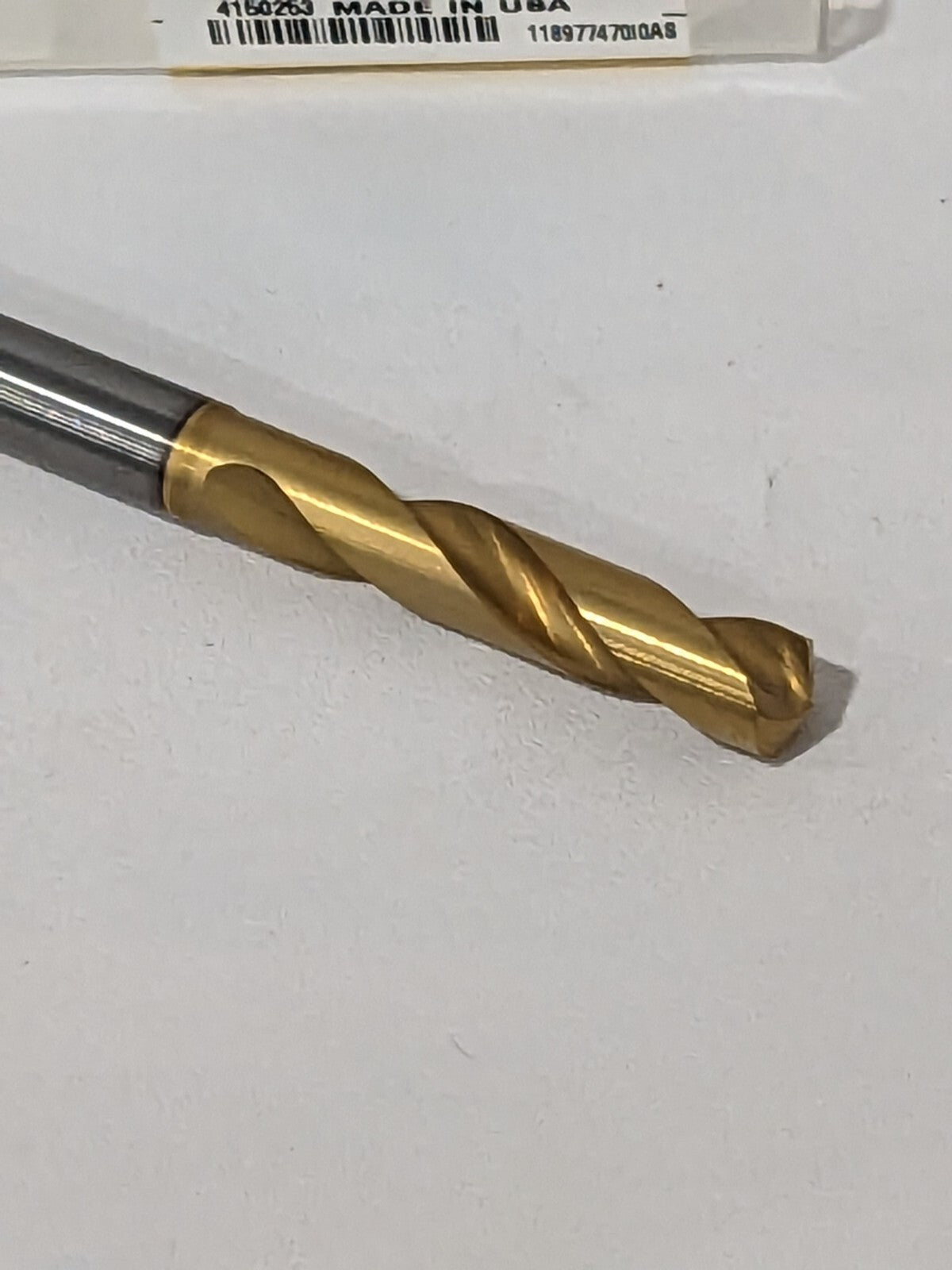

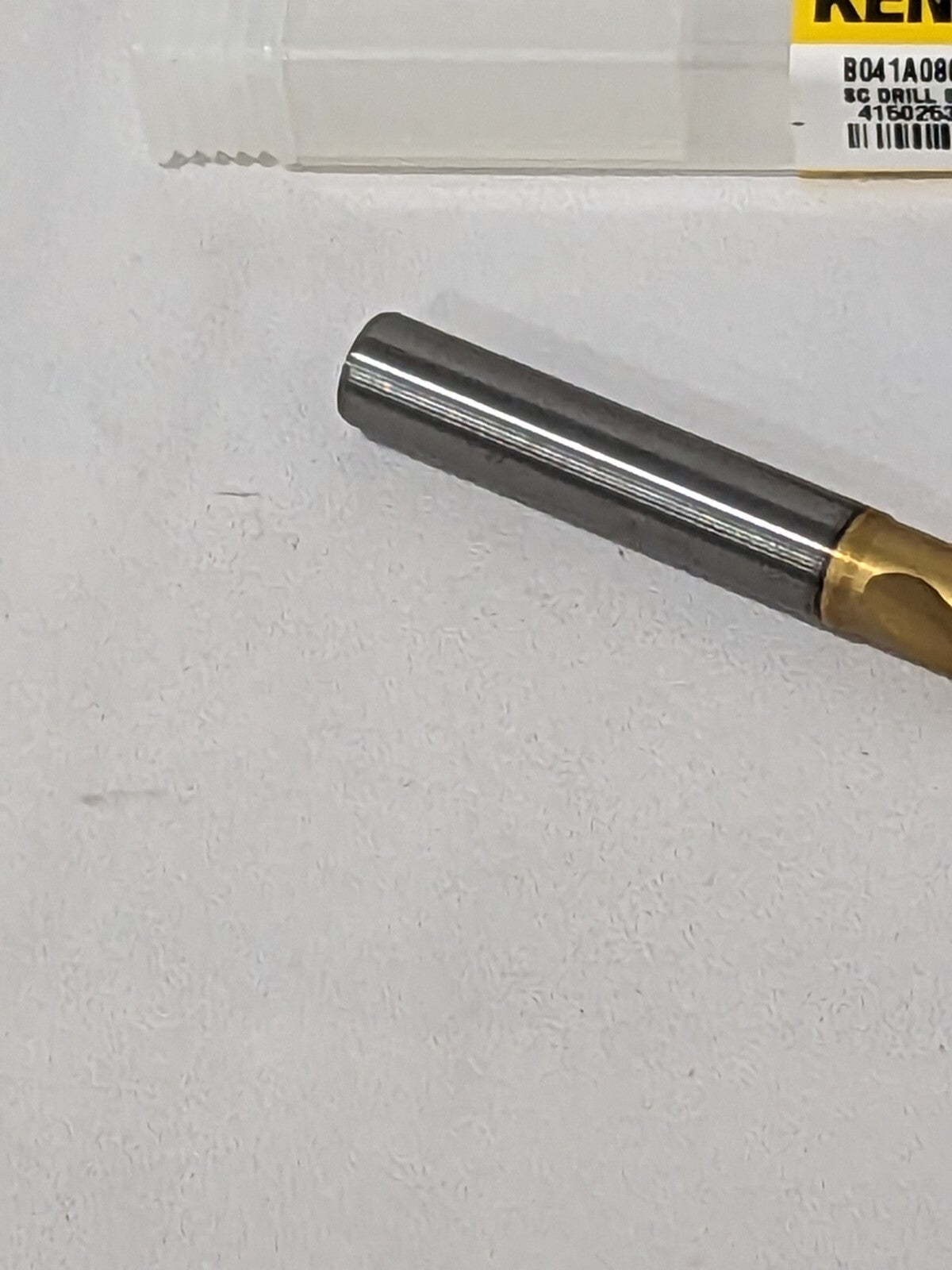

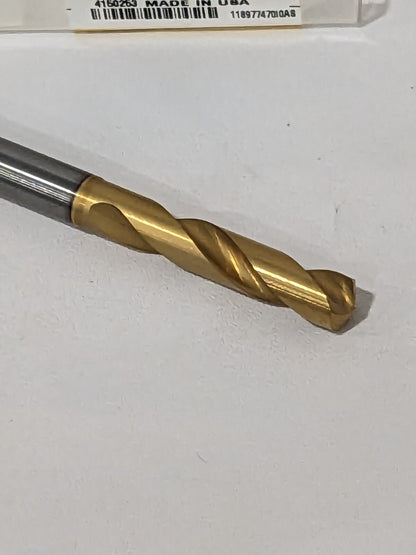

Please review photos, comes as shown.
