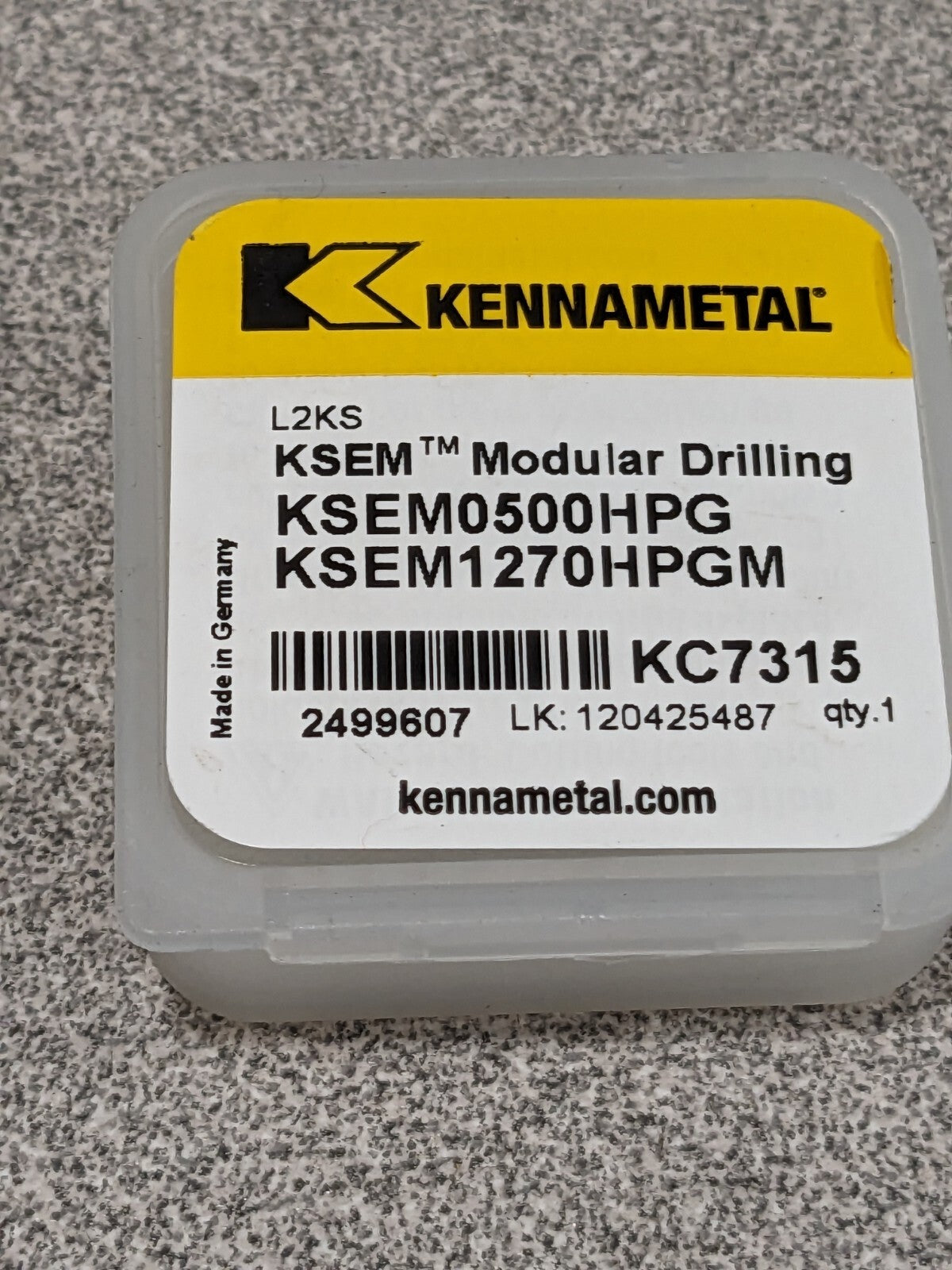

KENNAMETAL Replaceable Drill Tip: Series KSEM, 140º Point, Grade KC7315 2499607

Replaceable Drill Tip
Kennametal

MSRP: $85.00

• Cutting Diameter (Inch) 1/2
• Cutting Diameter (Decimal Inch) 0.5000 in
• Cutting Diameter (mm) 12.70
• Tip Material Solid Carbide
• Manufacturer Grade KC7315
• Material Grade Fine Grain
• Cutting Direction Right Hand
• Series KSEM
• Coating Process PVD
• Insert Geometry HPG
• Insert Seat Size C
• Functional Length (Decimal Inch) 0.2500
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Height (mm) 9.00 mm
• Overall Length/Projection (Decimal Inch) 0.3380
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number KSEM0500HPG
• Coolant Through Yes
• Flute Length (mm) 6.00
• Point Type Standard
• Spiral Type Regular Spiral
• Style KSEM
• UNSPSC Code 23242105
• Applications Drilling; ToolDimensions:2flute/2margin/coolant; ThroughCoolant:MQL(MinimumQuantityLubricant):Drilling; ?Drilling-ThroughCoolant; Drilling:InclinedExit; Drilling:StackedPlates
• Coating/Finish TiAlN
• Included Angle Degree 140
• Number Of Flutes 2

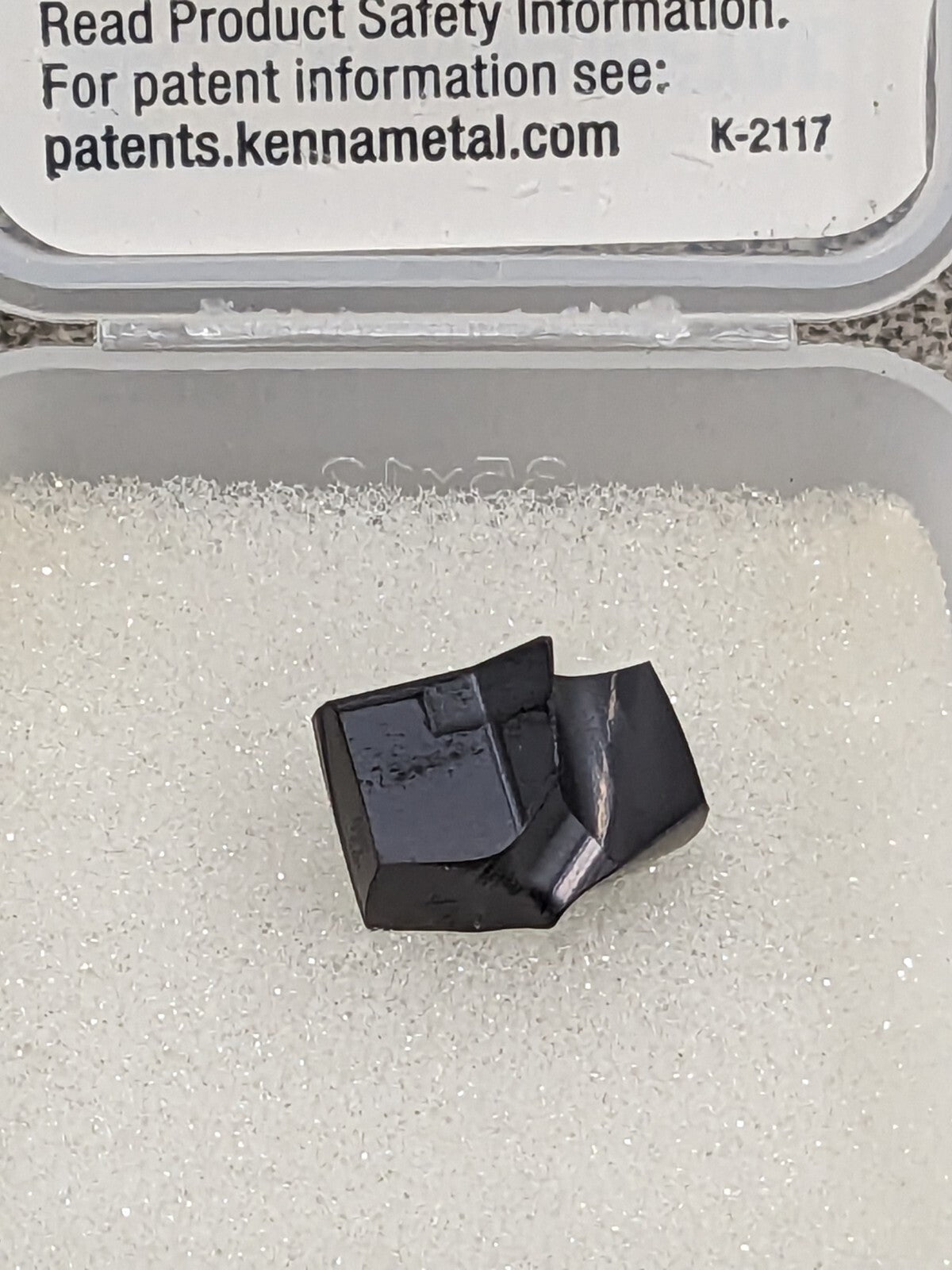

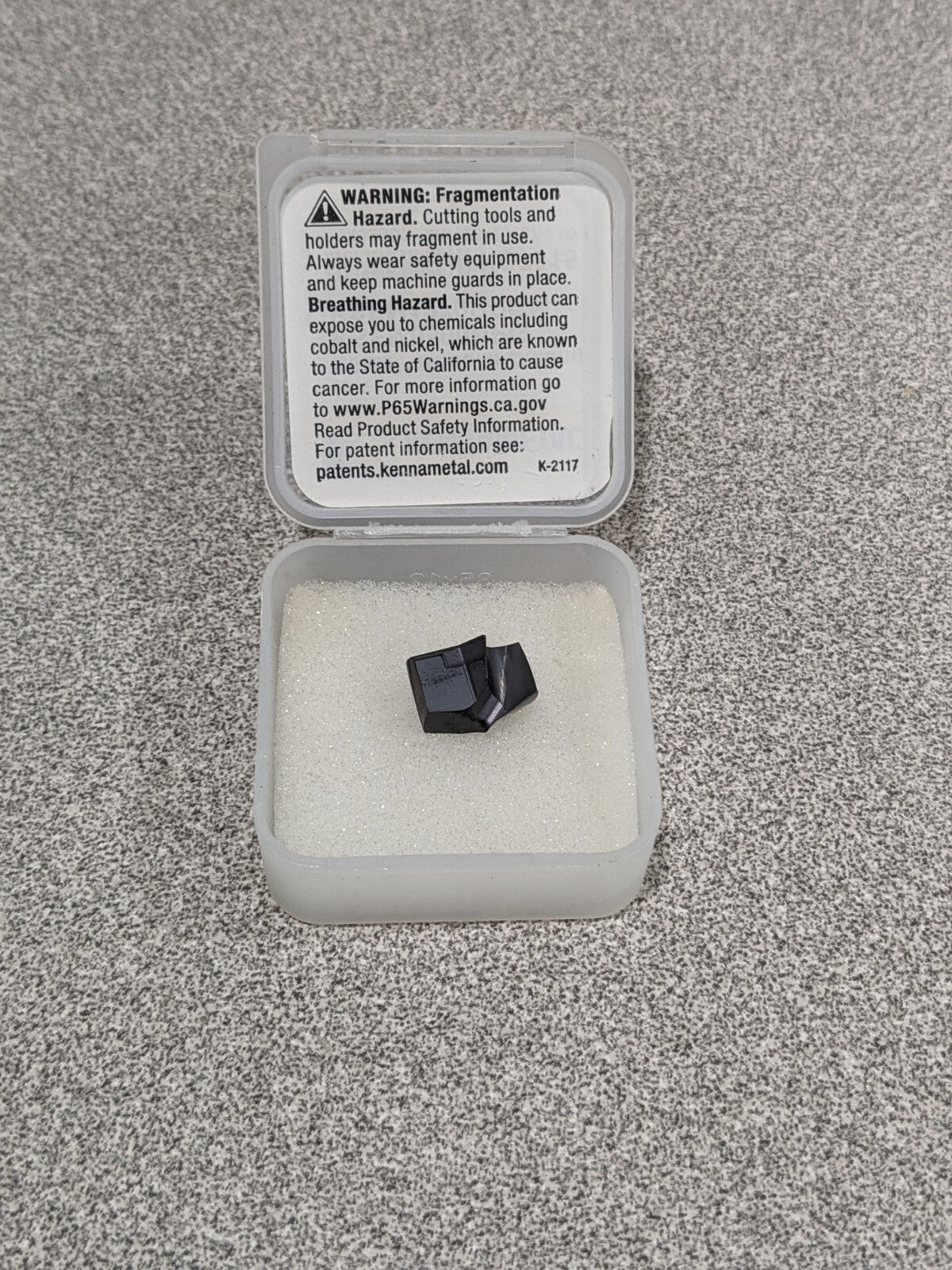

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
