De-Sta-Co Block Style Pneumatic Swing Clamp without Arm 8315-LA PARTS/REPAIR
De-Sta-Co Block Style Pneumatic Swing Clamp without Arm 8315-LA PARTS/REPAIR
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Shipping calculated at checkout.
DESTACO
Block Style Pneumatic Swing Clamp without Arm
- Operation Type Pneumatic
- Action Type Single-Acting
- Swing Direction Right Hand
- Clamping Force (N) 400.00
- Clamping Force (Lb.) 89.92
- Operating Volume (Cu. In.) 2.01 (Clamp); 2.26 (Unclamp)
- Operating Volume (cc) 32.94 (Clamp); 37.03 (Unclamp)
- Port Size 1/8 NPT
- Total Stroke Distance (mm) 31.75
- Total Stroke Distance (Decimal Inch) 1.2500
- Body Length (mm) 104.39
- Body Length (Decimal Inch) 4.1100
- Body Width/Diameter (Decimal Inch) 1.5000
- Body Width/Diameter (mm) 38.10
- Maximum Operating Pressure (psi) 130.00
- Vertical Stroke Distance (Decimal Inch) 0.5000
- Vertical Stroke Distance (mm) 12.70
- Mounting Type Surface Mount
- Rod Diameter (mm) 12.70
- Rod Diameter (Decimal Inch) 0.5000
- Rod Diameter (Inch) 0.5000
- Maximum Operating Pressure (PSIG) 130.00
- Maximum Operating Pressure (bar) 8.96
- Minimum Operating Pressure (PSIG) 30.00
- Minimum Operating Pressure (bar) 2.07
- Clamp Arm Compatibility 821512 Standard Clamping Arm; 821513 Standard Clamping Arm; 821554 T-style Clamping Arm; 821555 T-style Clamping Arm; 821556 Blank Clamping Arm

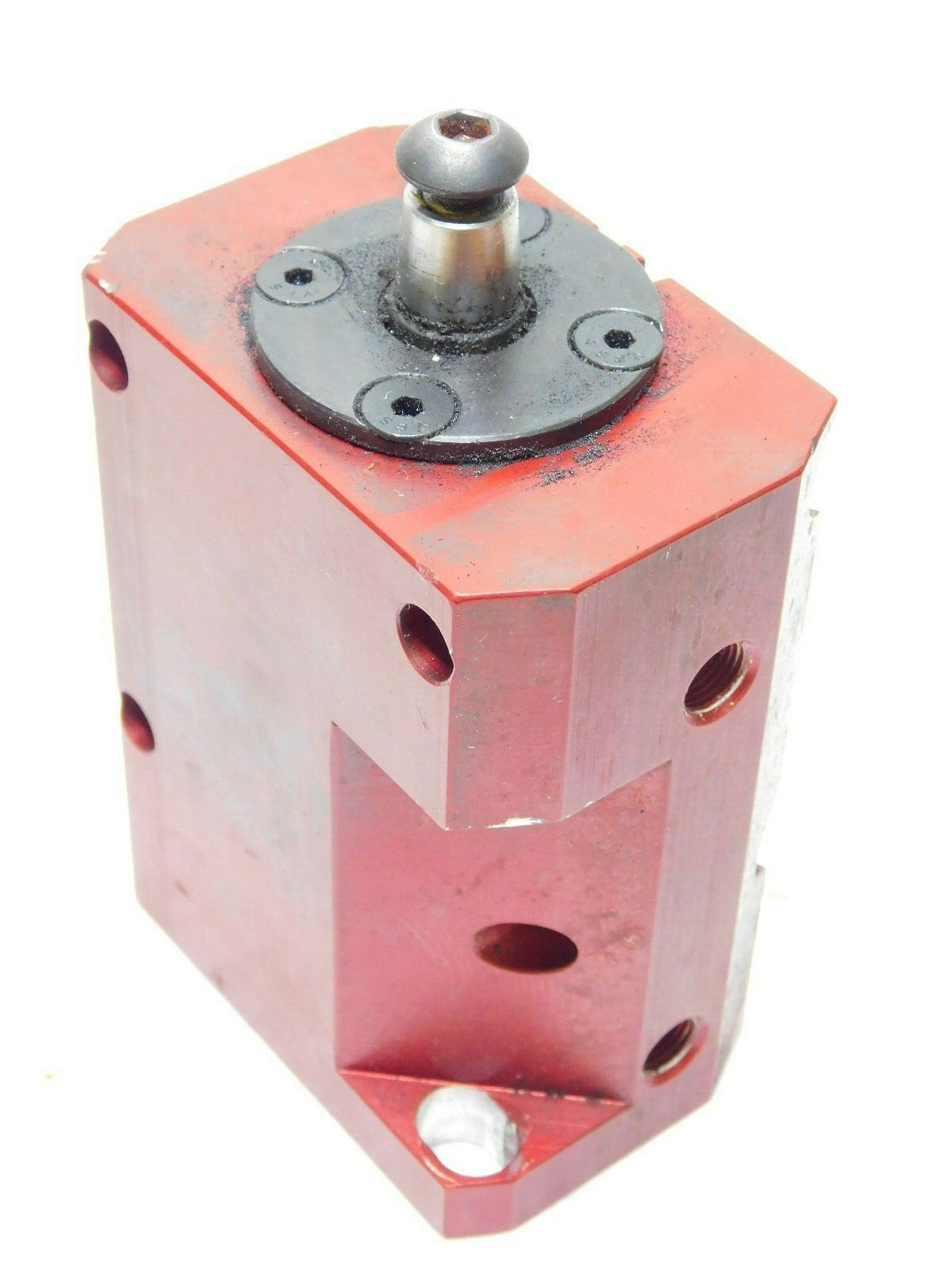

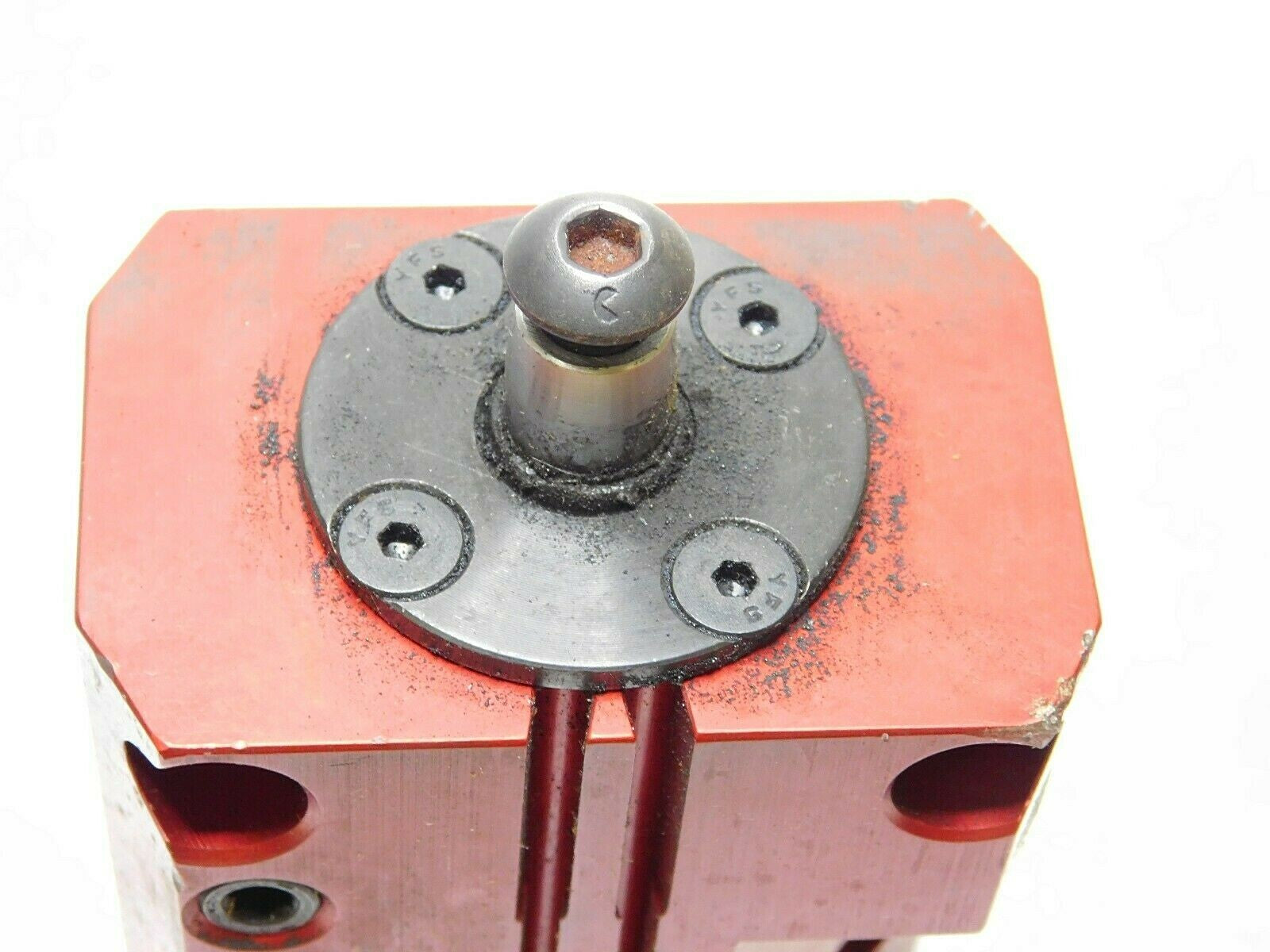

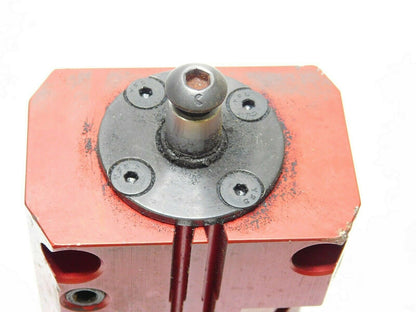

*PARTS/REPAIRS. Swing clamps have heavy use and leak around the seal and center of shaft. Not sure if item work as intended. ARM NOT INCLUDED. SOLD AS IS.

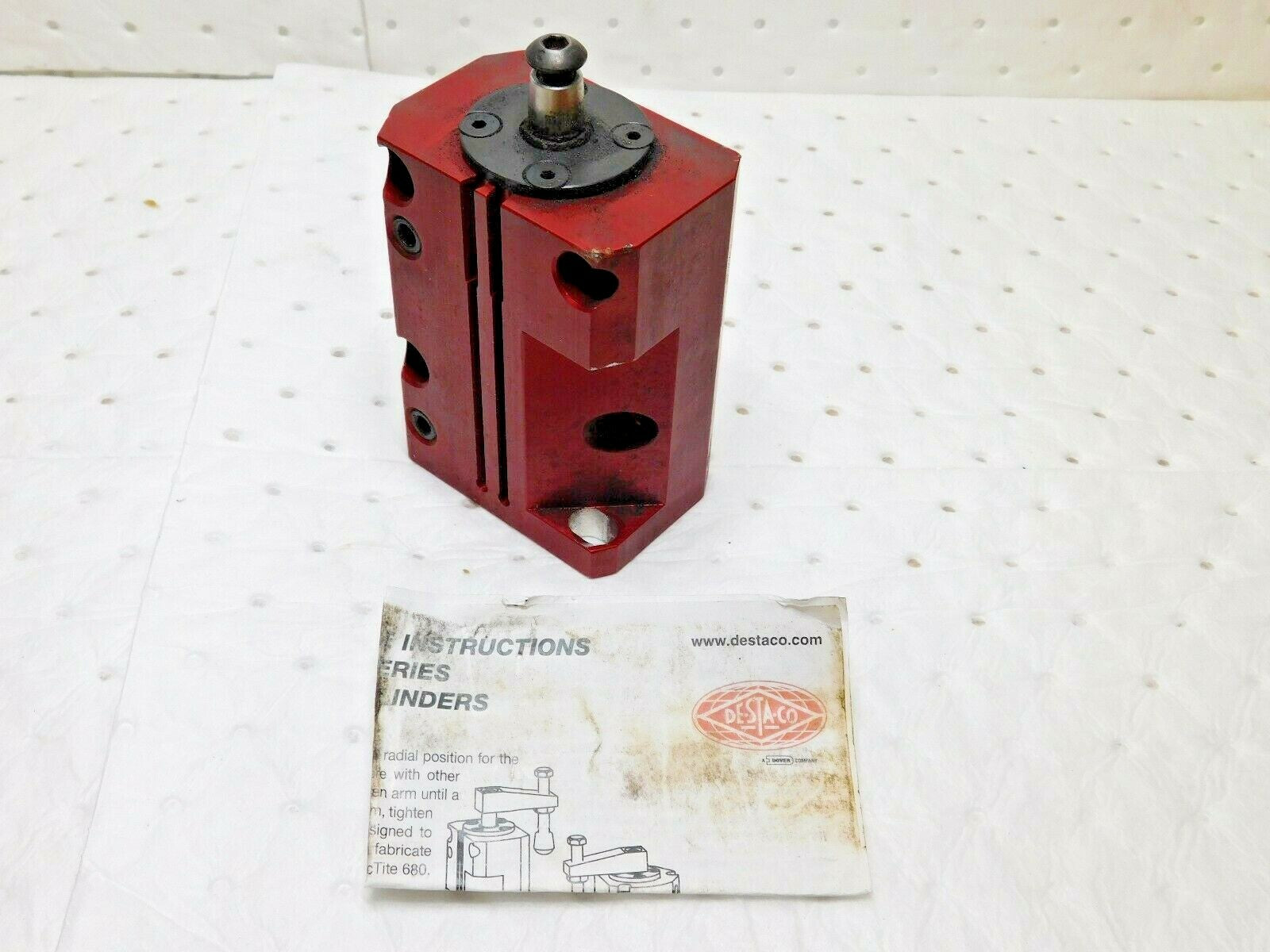

Please review photos, comes as shown.
